Specifications:

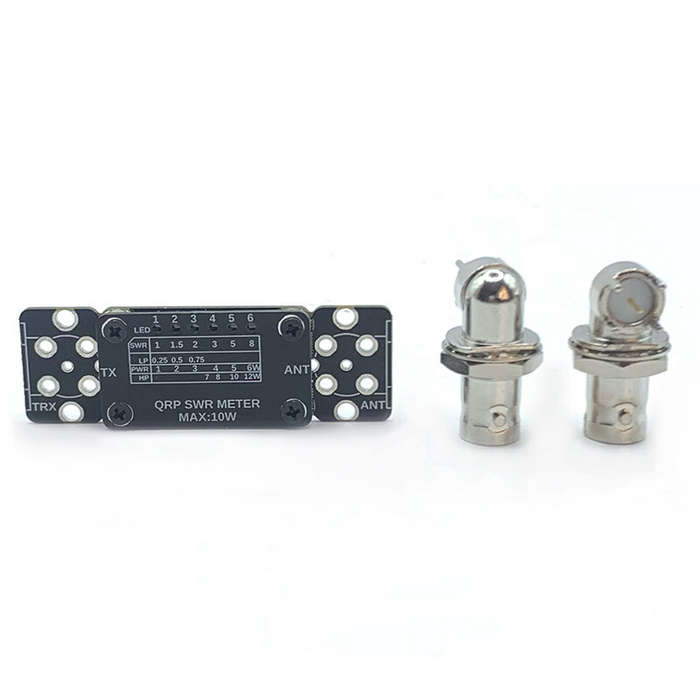

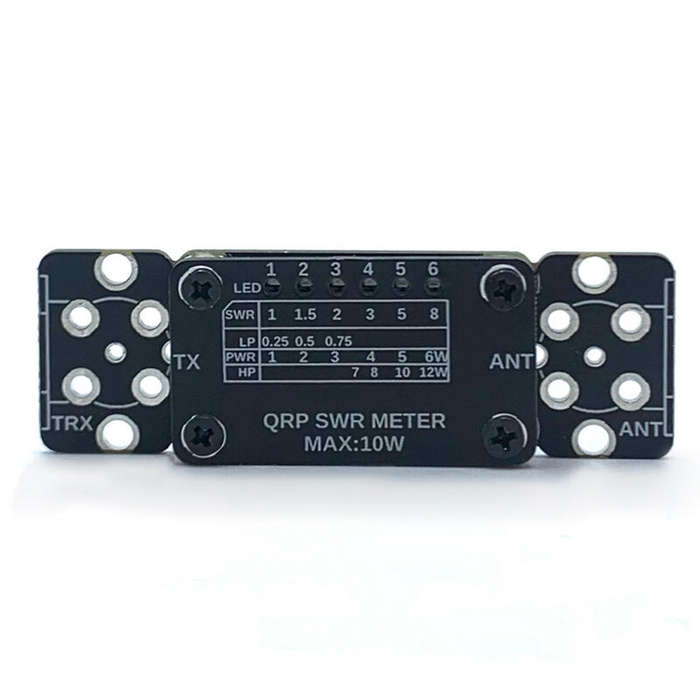

Name: SWR meter
Material: PCB
Frequency: 3-30mhz
Maximum measurement power: nominal 10W, actual measurement 12W
Minimum measurement power: greater than 0.5W
Connector: BNC
Maximum short-term power at full SWR meter resolution: 7W
Current drawn from transceiver to power circuits: 1.2mA
Features:
1. It is small and light, powered by RF tap power, no battery required, easy to carry, and very suitable for amateur radio enthusiasts to use in the field.
2. It can be used to measure RF signals, and it uses 6 LEDs to indicate the power strength and SWR range of the signal.
3. It is used to test the signal-to-noise ratio of shortwave radio signals with a frequency range of 3-30MHz. The input power does not exceed 12W, and the LED light corresponding to the minimum display value require
