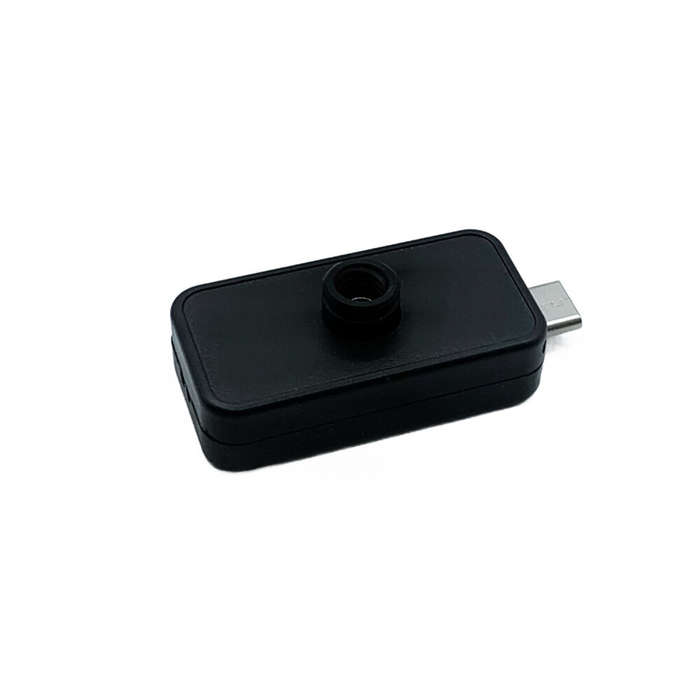

Black - AMNVOLT MLX90640 Thermal Imager 32*24 Resolution Plug and Play Android Version Temperature M

Specifications:

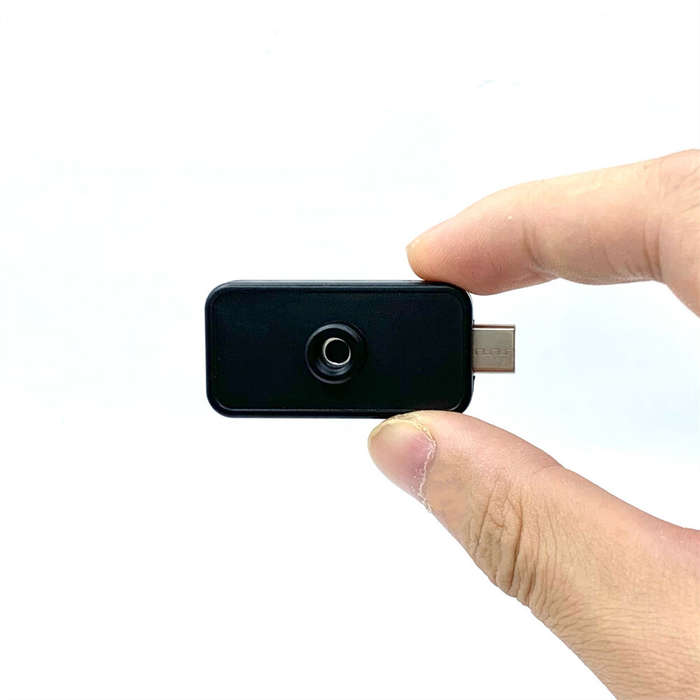

Product size: 50*22*11mm
Product weight: 10g
Sensor model: MLX90640-BAB
FOV: 55*35°C
Thermal imaging resolution: 32*24
Temperature measurement range: -40 - 380 degrees Celsius
Measurement accuracy: 1 degree Celsius
Mobile phone system requirements: Android system supports OTG function
Module interface: TYPE-C interface
Power supply mode: Mobile phone OTG interface power supply, TYPE-C port required
Usage:

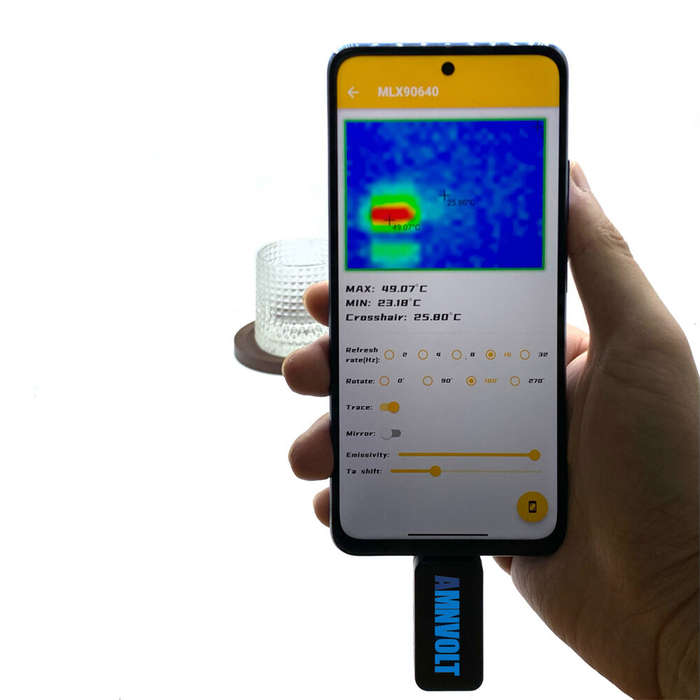

Android phone installs the corresponding software, inserts the module into the mobile phone TYPE-C interface, opens the corresponding software (need to allow the mobile phone to install external APK), and then it can be used.

Note: The temperature detections accuracy is very low, only ±1°C, and the resolution is 32*24, which is only suitable for routine detections
