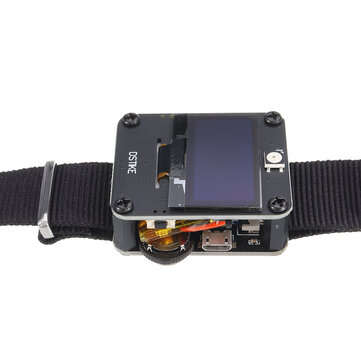

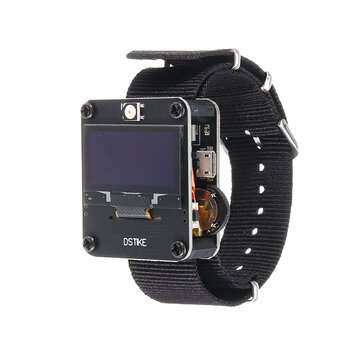

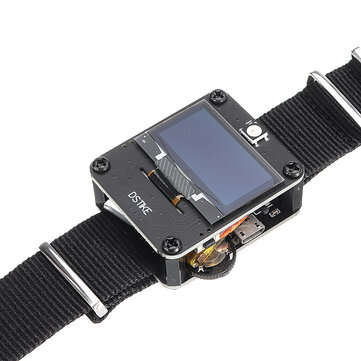

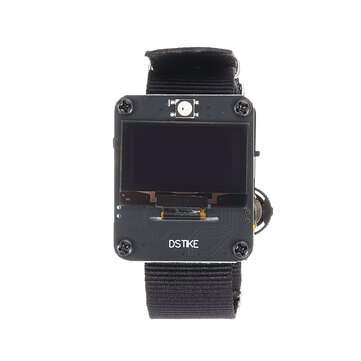

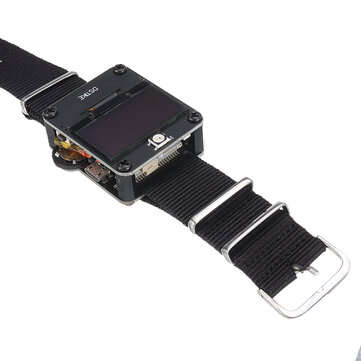

Black Deauther Wristband NodeMCU ESP8266 Programmable WiFi Development Board

What is it
?

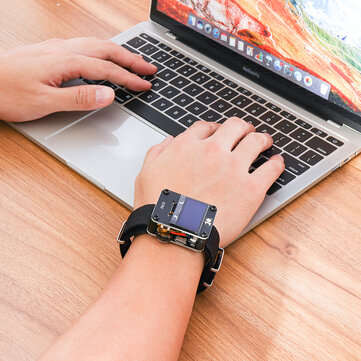

1. Deauther Watch is still an ESP8266 development board, but you can wear it like a smartwatch.
2. This ESP8266 development board comes with a 600mAh battery, OLED display and a 3-way momentary slide switch.

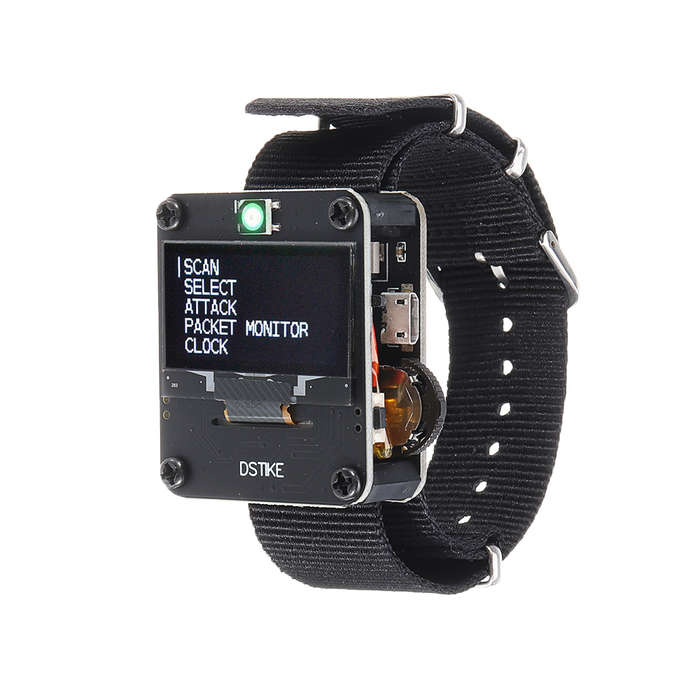

3. It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.
?
Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit
?
You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.
?
GPIOs and hardware info
?
Display: SH1106 1.3 OLED
Display SDA: GPIO 5 (D1)
Display SCL/SCK: GPIO 4 (D2)
WS2812b LED: GPIO 15 (D8)
Button Up: GPIO 12
Button Down: GPIO 13
Button Select: GPIO 14
High Light LED: GPIO 16
Side Button: GPIO0,GPIO2,RST
?
Why did you make it
?
I designed this development board especially for Spacehuhn`s great project:
?
What makes it special
?
Only 80mA power usage
Up to around 7 hours work time
200 mA charging current
Indicate charging LED (Red means charging, off means full)

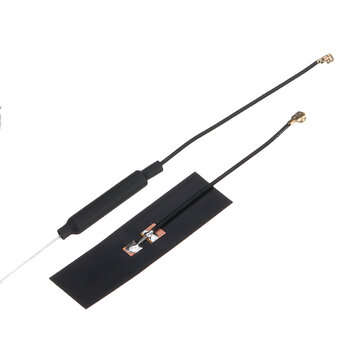

Included 8dB antenna and 2dB antenna

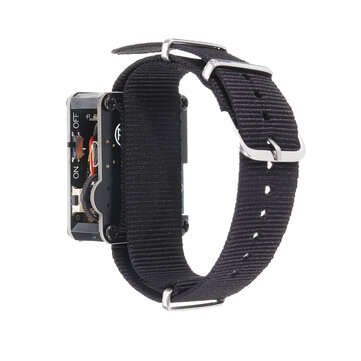

Power Switch (Strongly recommend turn it off when charging)
Protection: short, overcharging, over discharging, temperature

Usage
You can use it with the?
?
You can also connect to pwned with the password deauther and use the?
?
If you lost the password you can??it.
?
Disclaimer
?
Use it only for testing and educational purposes against your own devices! I don`t take responsibility for what you do with it.
?
Please check the legal regulations for your country to make sure you don`t violate any laws.
?
Specs and Docs
?
CP2102 Driver?.



?
Package Included:
?
1 x DSTIKE Black Deauther Wristband ESP8266 Development Board
