Specification:
Brand: DS Power
Model: DS-M005
Operating Voltage: 3.7-4.2V
Static Current: 20mA
Stall Current: 350mA
Stall Torque: 0.35kgf·cm
Rotating Direction: CCW (1000→2000s)
No-load Speed: 0.075 sec/60°
Pulse Width Range: 500~2500s (180°)
Operating Travel Angle: 90° (1000~2000s)
Return Angle Deviation: 1°
Weight: 2.2 ± 0.3g
Communication Interface: PWM
Wire Length: 150mm
Output Shaft: 28T/3.90mm
Plug: JR2.54

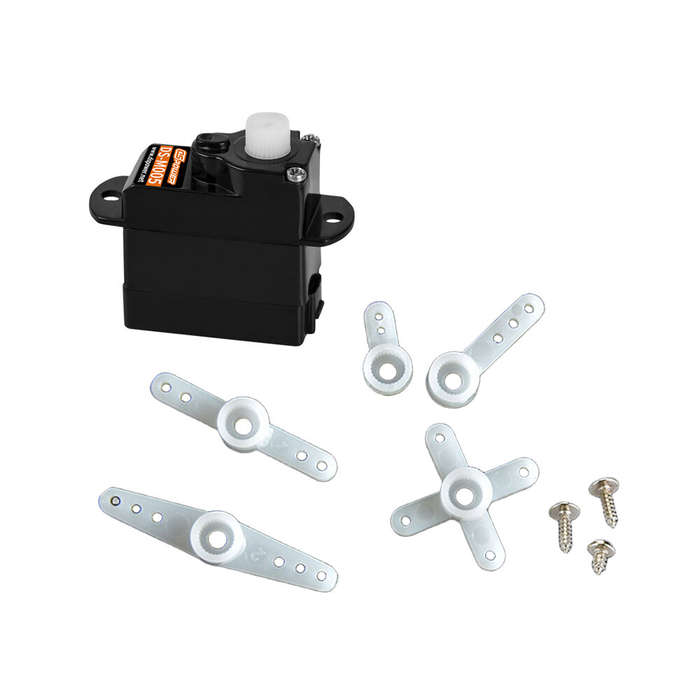

Package included:
1 x RC Servo
