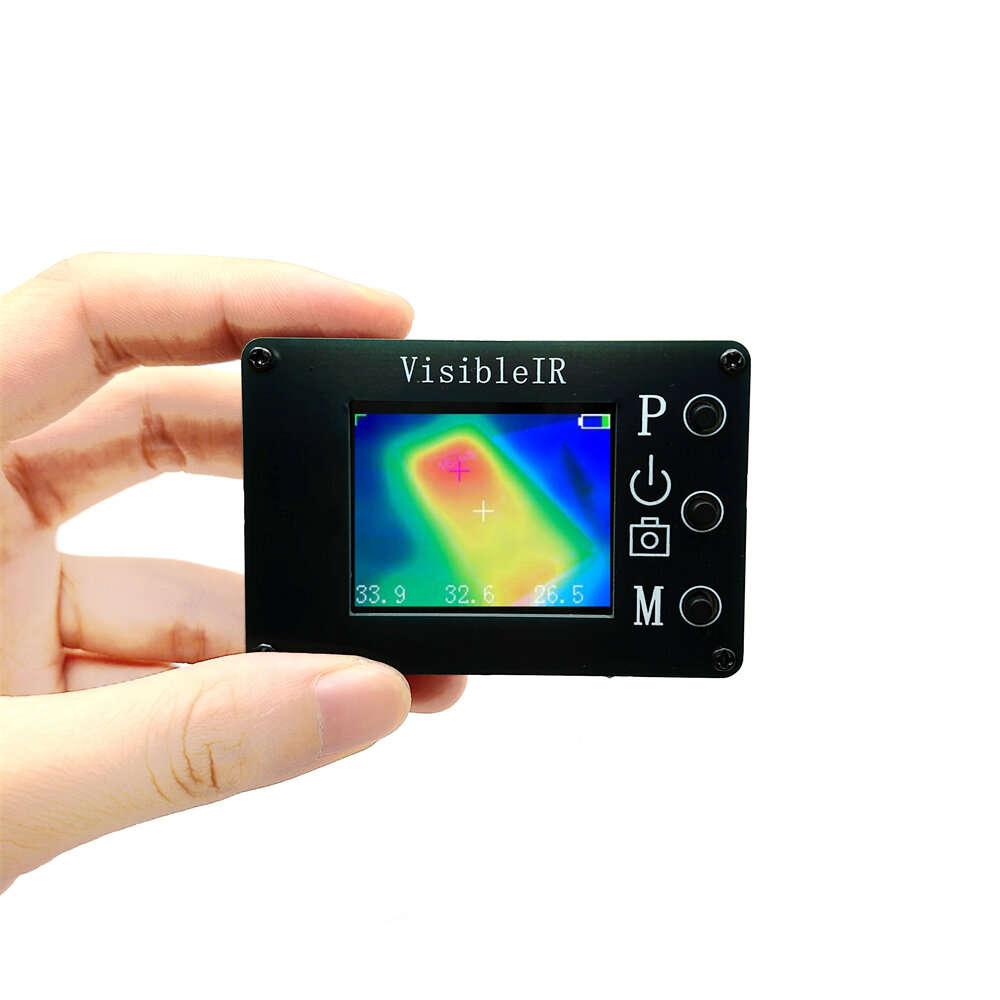

Black - IR B18 Visible Light Thermal Imager 32x24 Fusion Infrared and Visible Light Camera Non-Conta

Features:

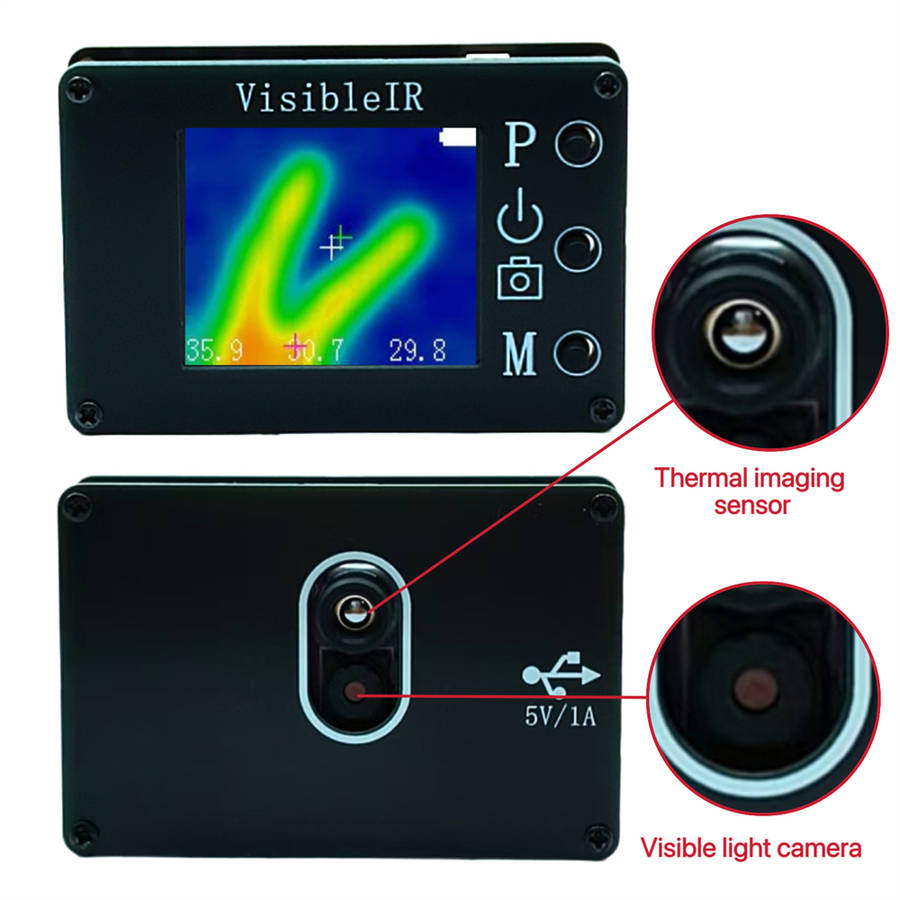

1. Dual Vision Fusion Technology: Combining a 32x24 infrared thermal sensor and a visible light camera, it offers three display modes: visible light and infrared image fusion, visible light, and infrared image. One-touch switching between fusion, infrared, and visible light modes allows you to clearly locate heat sources in real-world environments.
2. Visual Thermal Display: Choose between rainbow and iron red color palettes to visualize temperature differences in the way that best suits you, making hot spots invisible.
3. Photo Capture and Data Logging: Capture and save images to internal storage. Connect to a computer via USB Type-C to easily copy, analyze, and share your findings.
4. Compact and Portable: Featuring a built-in rechargeable battery and a clear 1.8-inch TFT display, its compact size makes it ideal for mobile home inspections, DIY projects, and electrical maintenance.
5. Easy to Use: No complex calibration required. Power on, off, and take photos with a single button. Intuitive operation, easy for everyone.

Specification:
-Infrared resolution: 32 x 24 pixels
-Field of view: 55° x 35°
-Temperature range: -40°C to +300°C
-Measurement accuracy: ±2°C (center point, at target temperatures of 0°C to 100°C)
-Refresh rate: 8 Hz
-Display: 1.8-inch TFT (resolution 160x120)
-False color: Rainbow, Iron red
-Display modes: Fusion, visible light, infrared
-Interface: USB Type-C (charging and data transfer)
-Battery: Built-in rechargeable battery
-Operating environment: 10°C to 50°C, humidity 80%

Note: Misalignment in the fusion of visible light and infrared images is normal.

Note: Do not modify photos or insert other files into the disk. Ensure the device is powered off before connecting to a computer. If the product is not turned off when connected to a computer, the system may freeze. If the system freezes, you will have to wait for the battery to drain.

Package Included:
1 x Visible Light Thermal Imager
1 x Type-C Data Cable

FAQ:
Q1: Can it be used for outdoor animal search at night?
A1: No.

Q2: What is the optimal operating distance?
A2: Within 2 meters (depending on the size of the object).

Q3: Can it be used as a webcam, connected to a computer, or connected to a mobile phone via WiFi?
A3: No. It only supports USB flash drive connection to a computer when the device is turned off and the saved images can be read.

Q4: Can it be used to check for floor heating leaks?
A4: No. This product has limited accuracy and is not recommended for this purpose.

Q5: Can it be used to locate heat sources on circuit board?
A5: This product has limited accuracy and is not recommended for this purpose.
