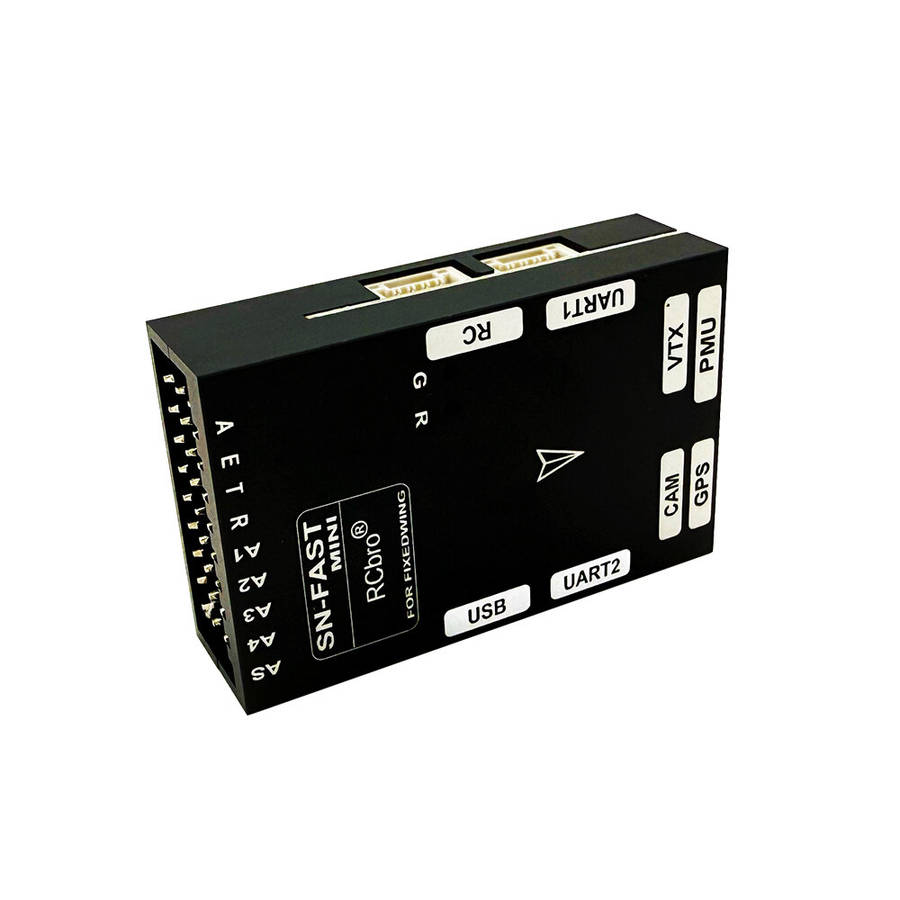

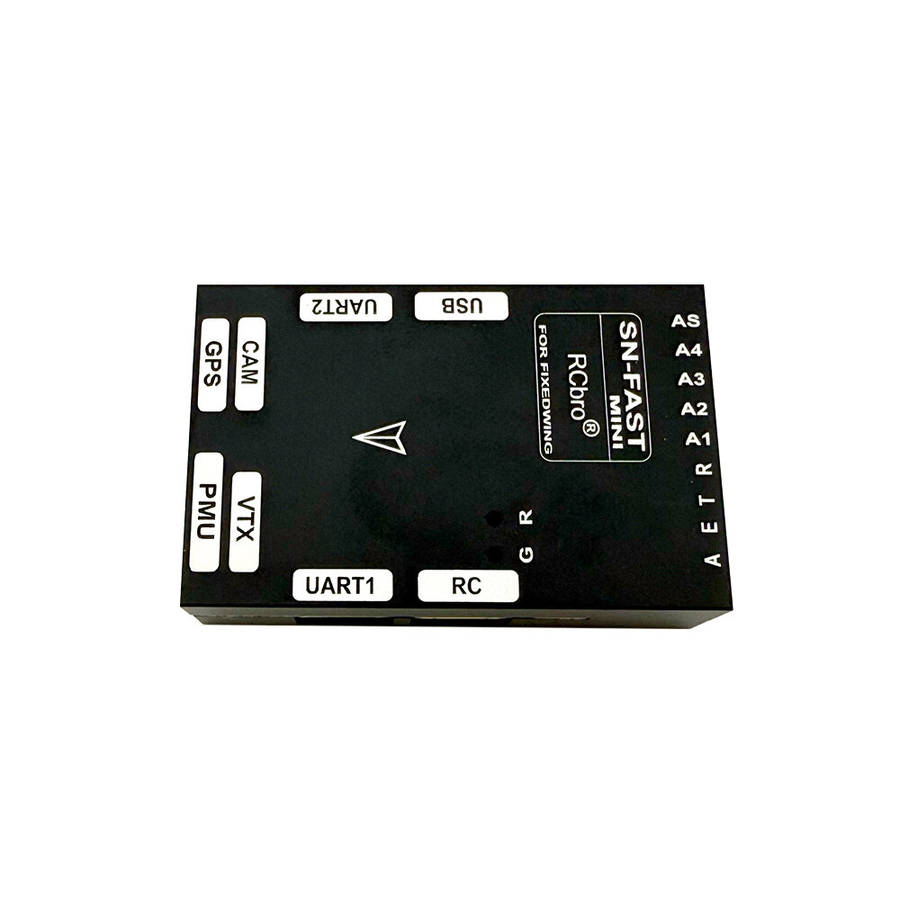

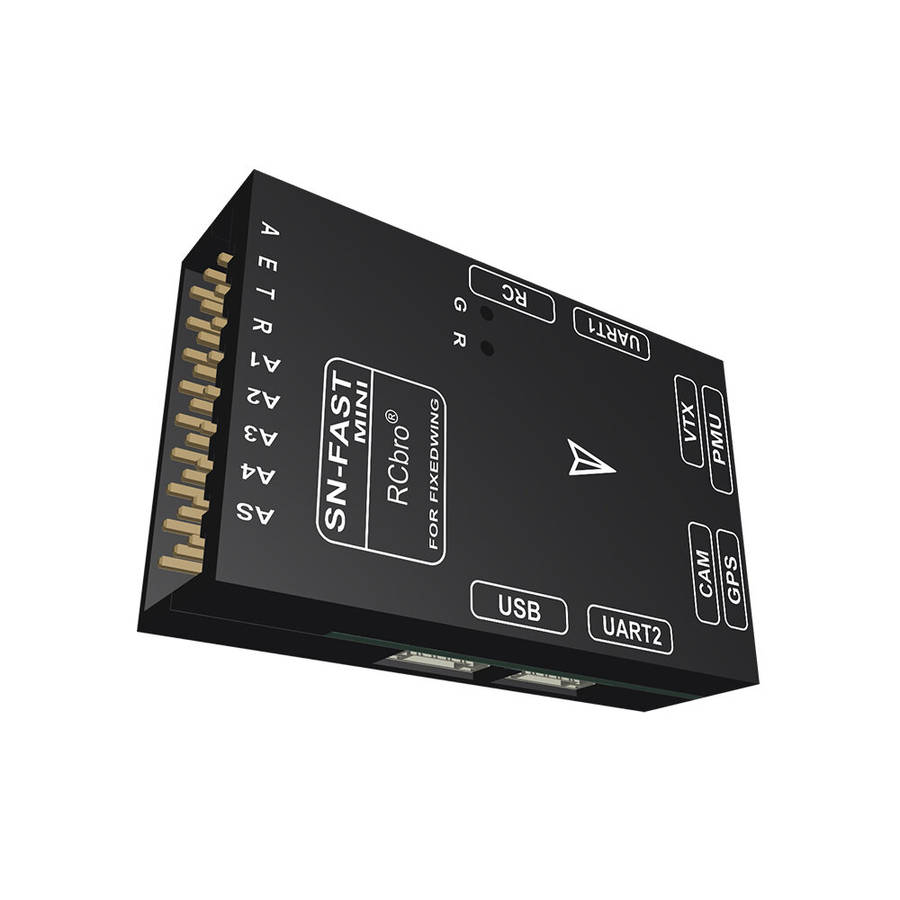

Black - Lefei SN-FAST Mini Flight Controller PMU Multi Mode 8-Channel PWM Support DJI O3 O4 VTX OSD

Specification:

Product Name: Flight Controller
Model: SN-FAST Mini
Dimensions: 44mmx28mmx17mm (Controller), 45mmx32mmx9mm (PMU)
Weight: 21g (Controller), 19g (PMU)
Max Input Voltage: 36V
Max Input Current: 120A
PWM Channels: 8

Features
1. Compact controller with multi-mode switching supports GPS altitude hold and waypoint planning.
2. Integrated PMU module ensures stable flight performance for demanding environments.
3. Dual cameras support seamless perspective changes for improved FPV flights.
4. Efficient 8-channel PWM control accommodates various drone configurations.

Package Included:
1 x Flight Controller
1 x USB Cable
2 x GH1.25 extension cable
1 x Video Transmission Cable
1 x Camera Cable
1 x Receiver Cable
2 x Capacitor
1 x 3P and 4P DuPont connector 1
1 x Dual Camera Power Distribution
