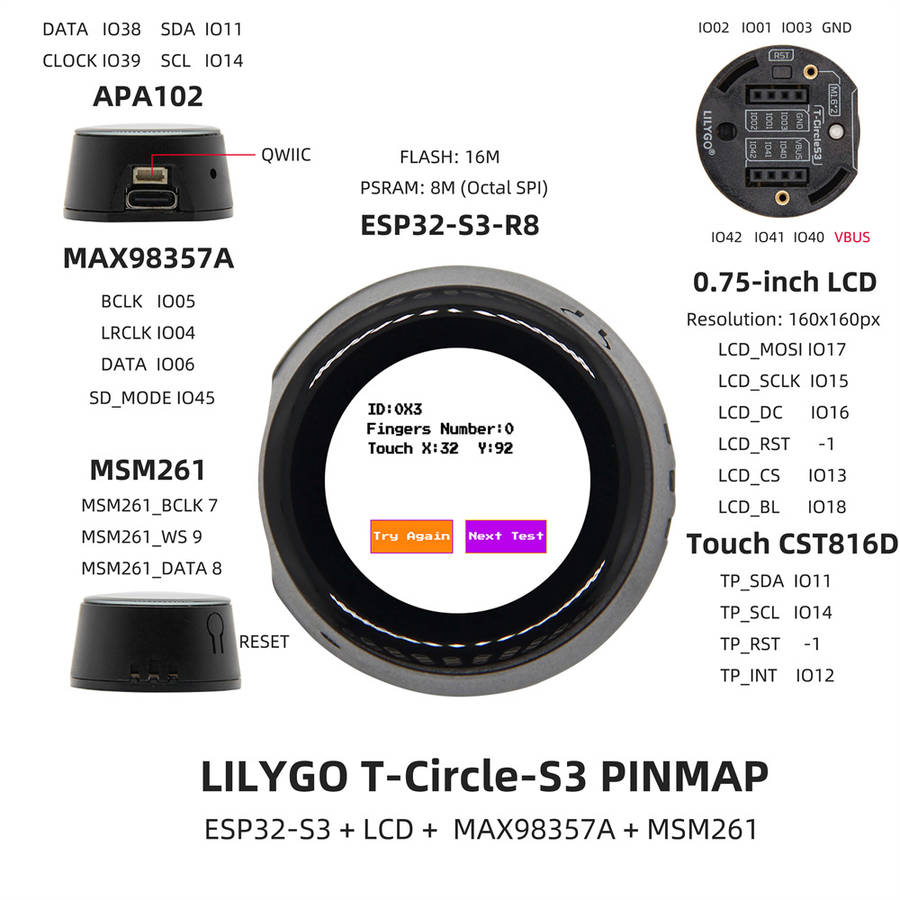

Specifications:
MCU: ESP32-S3R8 Dual-core LX7 microprocessor
Wireless Connectivity: 2.4 GHz Wi-Fi & Bluetooth 5 (LE)
Development: Arduinos, PlatformIO-IDE, ESP-IDF
Flash: 16MB
PSRAM: 8MB
Size: 32*17mm
USB Charging: 5V 500mA
0.75-inch 4SPI TFT LCD:
Driver IC: GC9D01N
Resolution: 160 RGB x 160
Features:
1.High Performance Processor: Equipped with the advanced ESP32-S3R8 Dual-core LX7 microprocessor, the T-Circle S3 development board delivers superb computational power and efficient task handling, making it well-suited for a wide range of applications from hobby projects to industrial IoT solution.
2.Enhanced Connectivity: Featuring 2.4 GHz Wi-Fi and Bluetooth 5 (LE) capabilities, this board ensures seamless wireless communication. Whether for IoT projects, smart home devices, or remote monitoring systems, you can rely on robust and stable connectivity.
3.User-Friendly Development Platforms: Compatible with popular development environments like Arduinos, PlatformIO-IDE, and ESP-IDF, the T-Circle S3 caters to both beginners and advanced users. Its versatile programming support fosters creativity and innovations in project development.
4.Integrated Display: The onboard 0.75-inch 4SPI TFT LCD with a resolution of 160 RGB x 160 provides a clear and crisp visual interface. This small screen is perfect for displaying vital information, aiding in debugging, or developing intuitive user interfaces.
5.Expandable I/O Ports: The T-Circle S3 includes six programmable I/O ports on its back, facilitating easy expansion and connection to various peripherals. Whether adding sensors, actuators, or additional displays, the flexibility supports a myriad of custom configurations.
Package Included:
1 x T-Circle-S3 Development Board
