Specifications:
SoC: ESP32-D0WDQ6-V3, 240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi
DMIPS: 600SRAM: 520KB
Flash: 16MB
Input Power: 5V @ 500mA
Interface: Type-C x1, I2C x1
IO Pins: G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
Buttons: Physical buttons x3
LCD Screen: 2.0' @320 x 240 ILI9342C IPS panel, maximum brightness 853nit
Speaker: 1W-0928

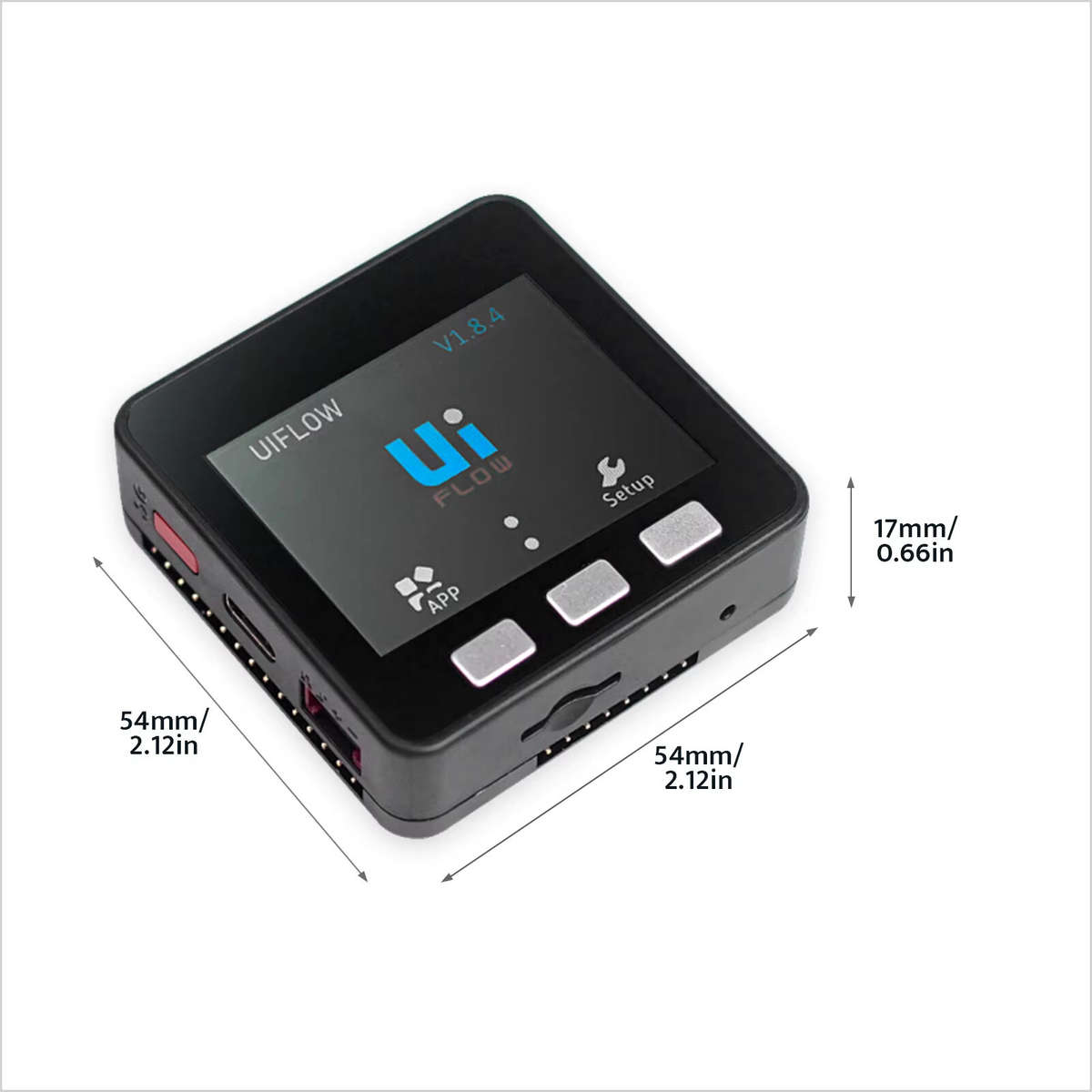

USB Chip: CH9102FAntenna: 2.4G 3D antennaBattery: 110mAh @ 3.7VCasing Material: Plastic (PC)Product Size: 54.0 x 54.0 x 17.0mmProduct Weight: 52.6g

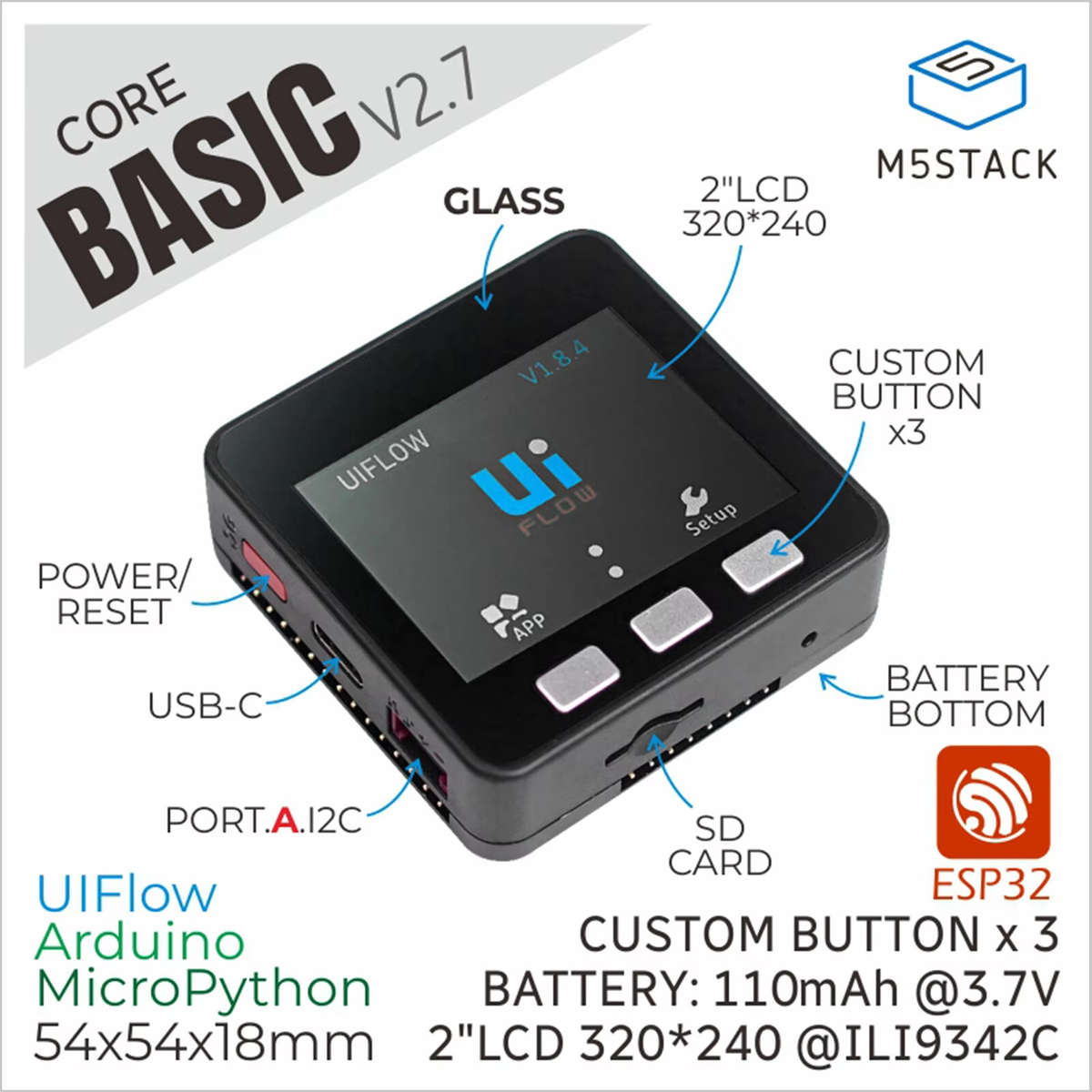

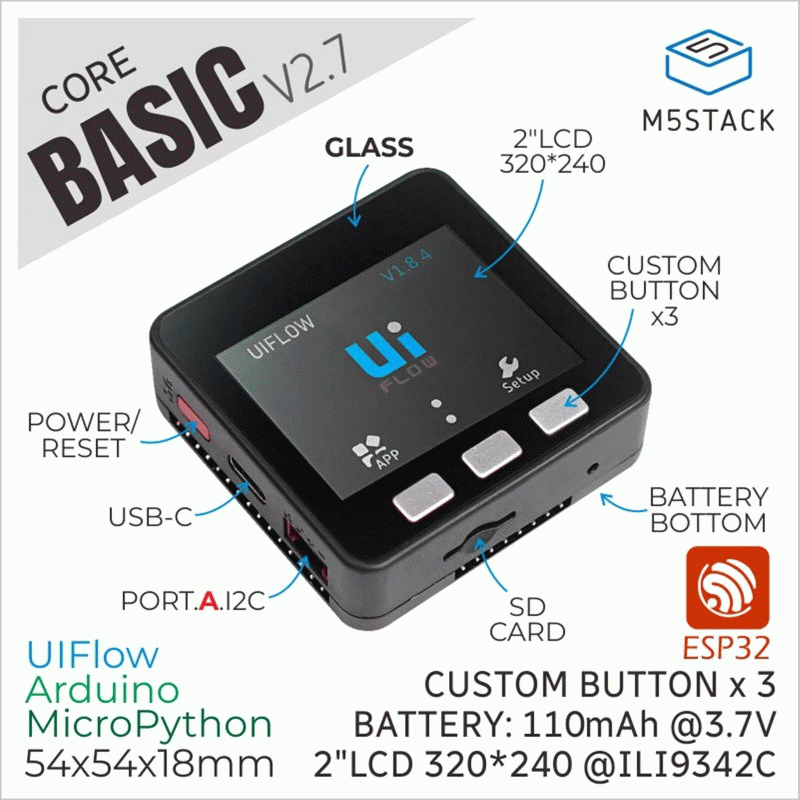

Introduction:Basic v2.7 is a cost-effective IoT entry-level main controller. It uses the Espressif ESP32 chip, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors, with a main frequency of up to 240 MHz. It has onboard 16 MB FLASH memory, integrated with a 2.0-inch full-color high-definition IPS display panel, speaker, TFCard slot, and other peripherals. The full-cover casing ensures the stability of circuit operation even in complex industrial application scenarios. The internal bus provides multiple common interface resources (ADC/DAC/I2C/UART/SPI, etc.), with 15 x IO leads on the bottom bus, offering strong expandability. It is suitable for various product prototype development, industrial control, and smart building application scenarios.
Features:
1. High-performance processor: Equipped with ESP32 dual-core CPU for efficient multitasking and reliable connectivity.
2. Bright IPS LCD screen: 2.0-inch panel displays crystal-clear visuals with 853-nit brightness for enhanced readability.
3. Comprehensive IO access: Wide range of GPIO pins for flexible connections to external components.
4. Compact design: Lightweight and portable, ideal for IoT development and prototyping.
5. Versatile interfaces: Features Type-C and I2C interfaces supporting reliable data exchange.
Package Included:
1 x Basic V2.7
10 x Dupont wires
1 x USB Type-C cable (20cm)
1 x User manual
