Black - M5Stack M5stampS3A Based ESP32-S3FN8 Embedded Module Programmable Development Board

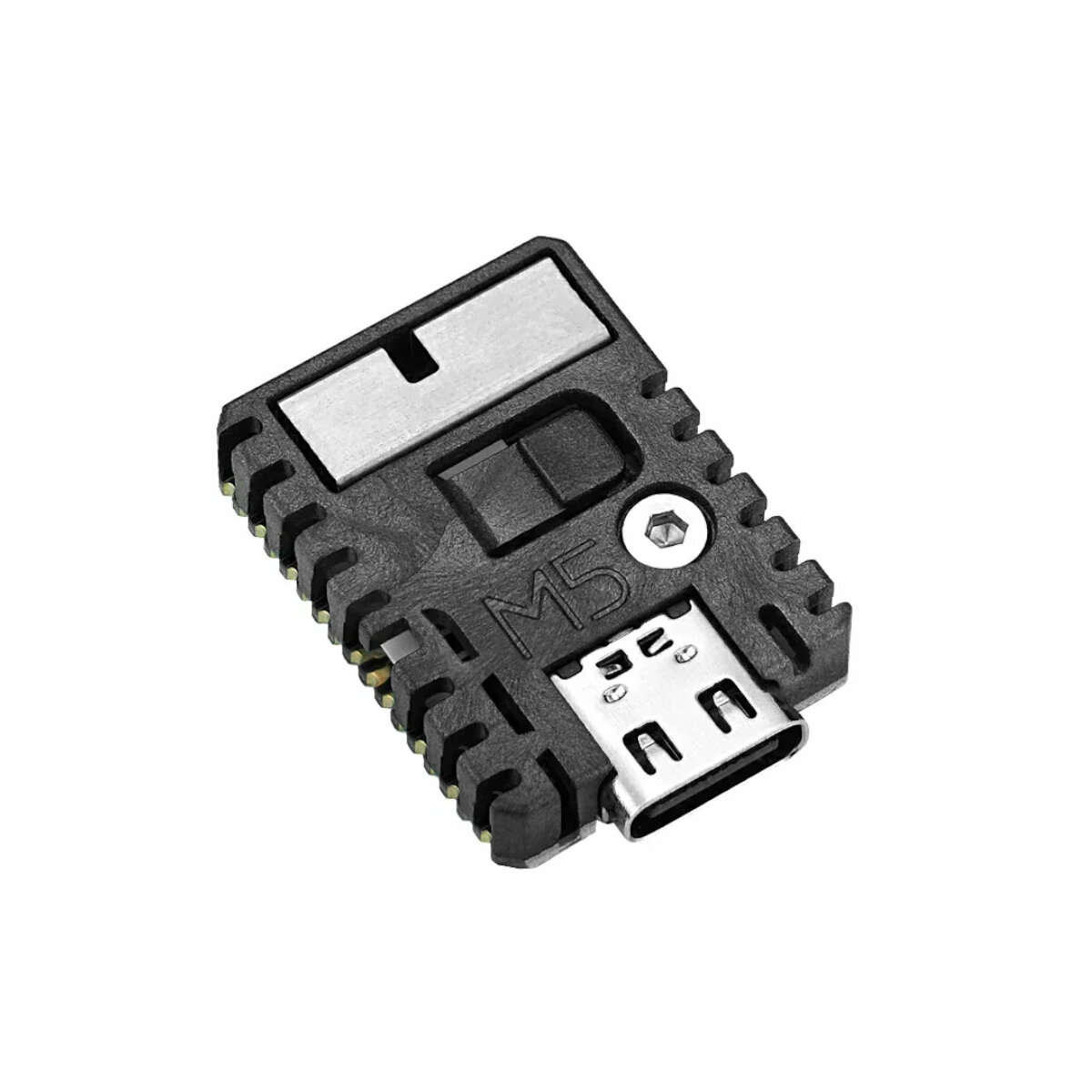

Description:Stamp-S3A is a highly-integrated embedded module based on the Espressif ESP32-S3FN8. It is equipped with a 240 MHz Xtensa® 32-bit LX7 dual-core processor, integrates 8 MB Flash, a programmable RGB LED, and a user button. The deeply-optimized 3D antenna design offers stronger wireless communication performance. Twenty-three GPIOs are broken out and provided via 1.27 mm / 2.54 mm pitch SMT/DIP pin headers or sockets, allowing effortless PCB integration and enabling developers to build applications rapidly.

Features:ESP32-S3FN8 (2.4 GHz Wi-Fi)Minimum-system boardRich I/Obreakout supporting multiple application forms (SMT,DIP,1fly-wire,Unit)Integrated programmable RGB LED and buttonDevelopment Platform:UiFlow2ArduinoIDEESP-IDFPlatformIO

Specifications:

Specification	Parameter
SoC	ESP32-S3FN8
DC-DC	MUN3CAD01-SC
Flash	8 MB
Input Voltage	DC 5 V
HMI	Programmable physical button × 1, programmable RGB LED (WS2812B-2020) × 1
Antenna Type	2.4 GHz 3D antenna
Module Resource I/F	Touch Sensor, SD/SDIO/MMC Host Ctrl, SPI, SDIO/SPI Slave Ctrl, EMAC, Motor PWM, LED PWM, UART, I²C, I²S, GPIO, Pulse Counter
IO Interfaces × 23	G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/
	G14/G15/G39/G40/G41/G42/G43/G44/G46
IO Pitch	2.54 mm and 1.27 mm
LCD FPC Pitch	0.5 mm @ 12 P or 8 P
Operating Temp.	0 ~ 40 °C

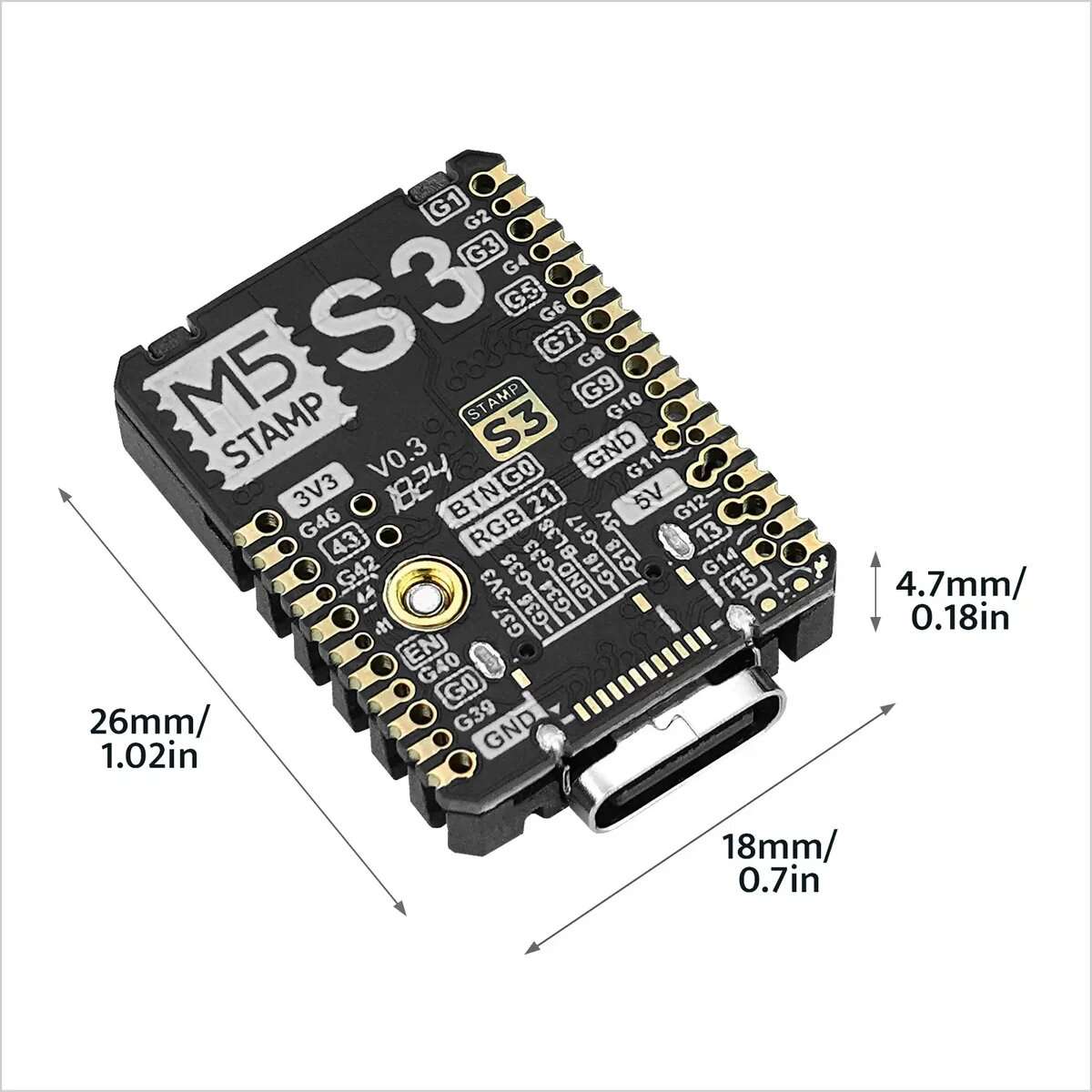

Product Size	26.0 × 18.0 × 4.7 mm
Product Weight	2.9 g
Package Size	138.0 × 93.0 × 10.5 mm
Gross Weight	7.1 g

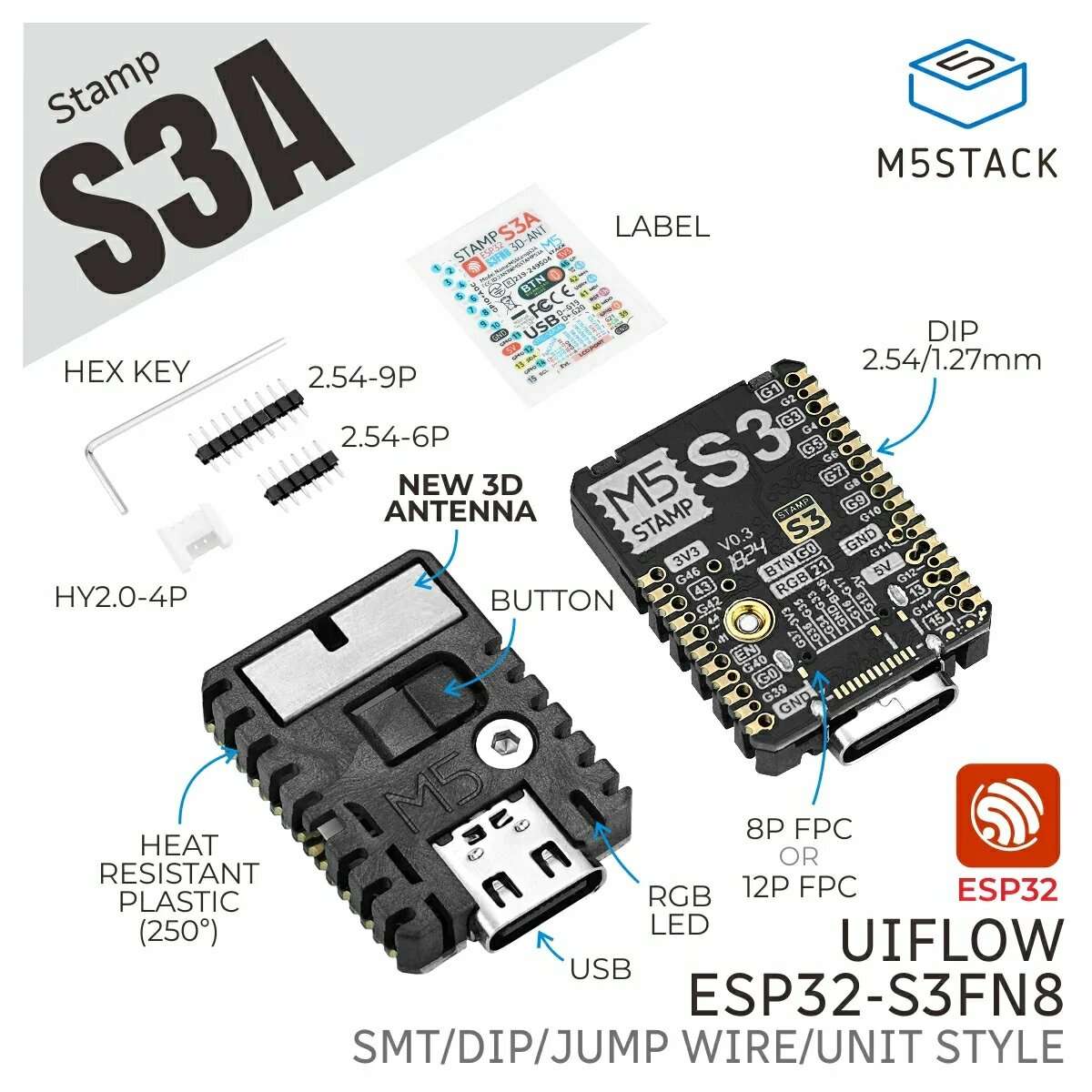

Package Includes:1 x Stamp-S3A1 x HY2.0-4P Terminal1 x 2.54-9 P Male Header1 x 2.54-6 P Male Header1 x Hex Key L-Shape 1.5 mm (For M2 Screw)1 x Pin Sticker

Product Comparison:



Product Comparison Item	Stamp-S3A	Stamp-S3
RGB LED ControlLogic	RGB LED power is multiplexed with the reserved screen FPC bus backlight	Powered as soon as power is applied
Antenna Design	Optimized antenna design with better signal reception	Conventional antenna design
Module Boot Button	Improved tactile feel; 4.0 × 3.0 × 2.0 mm button
