Features:

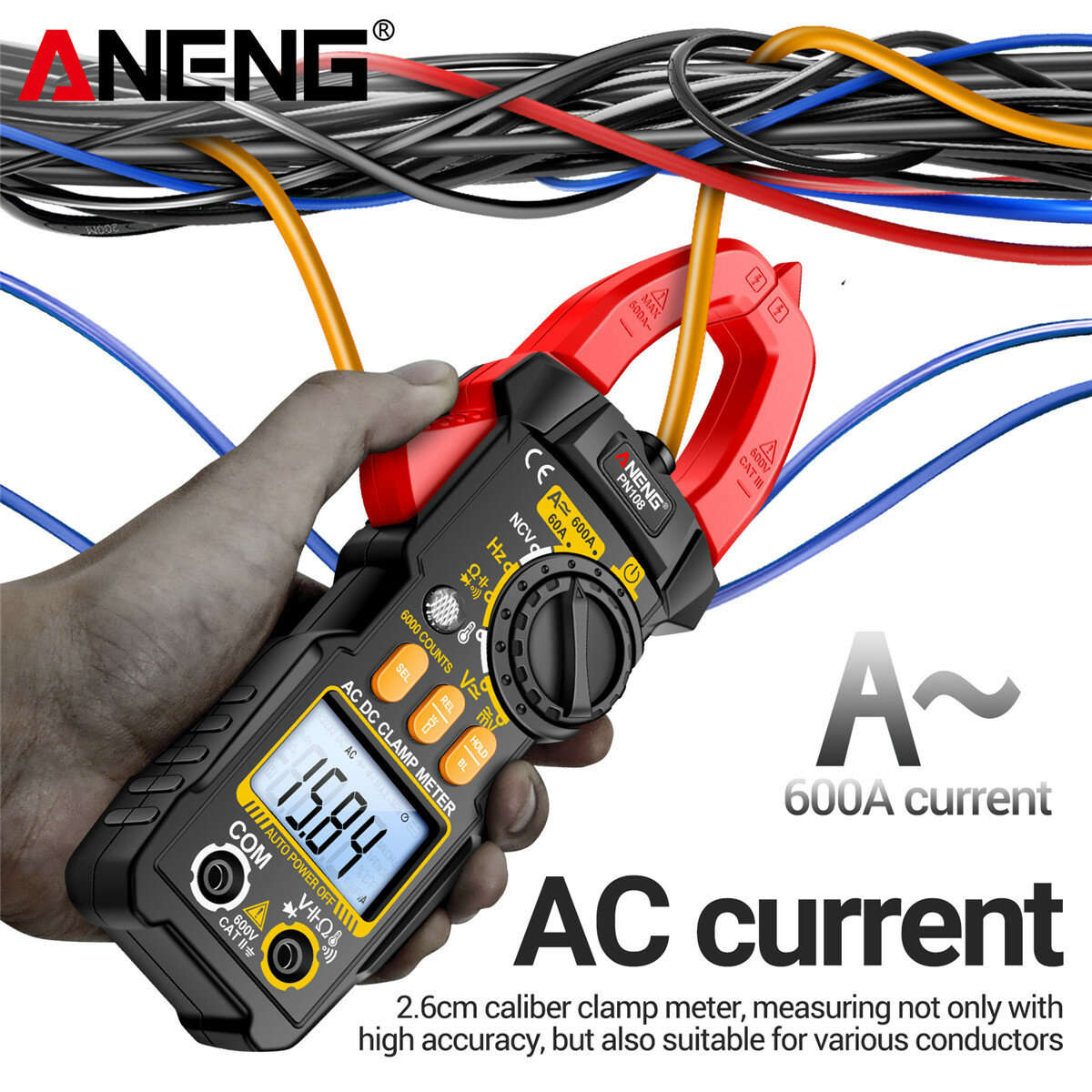

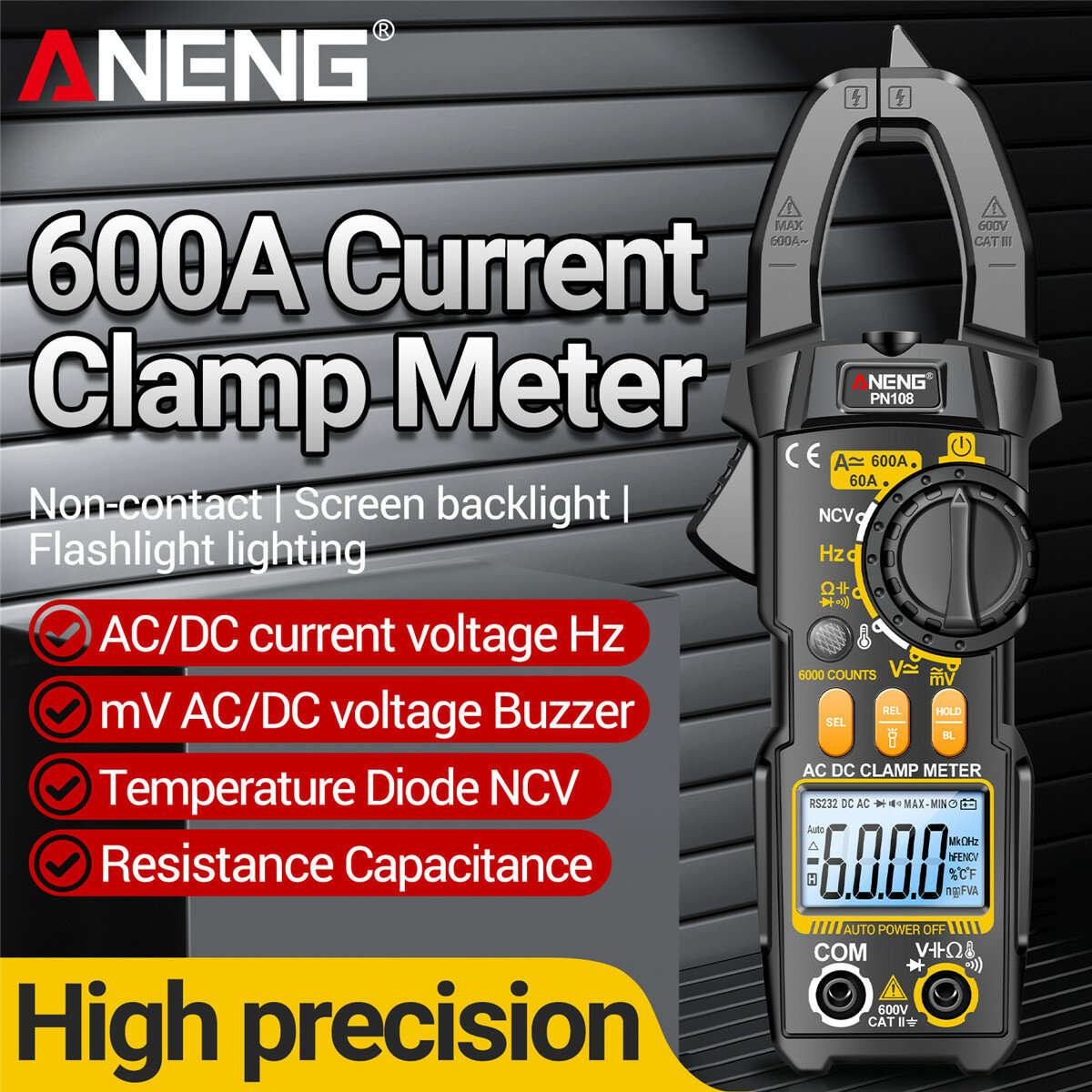

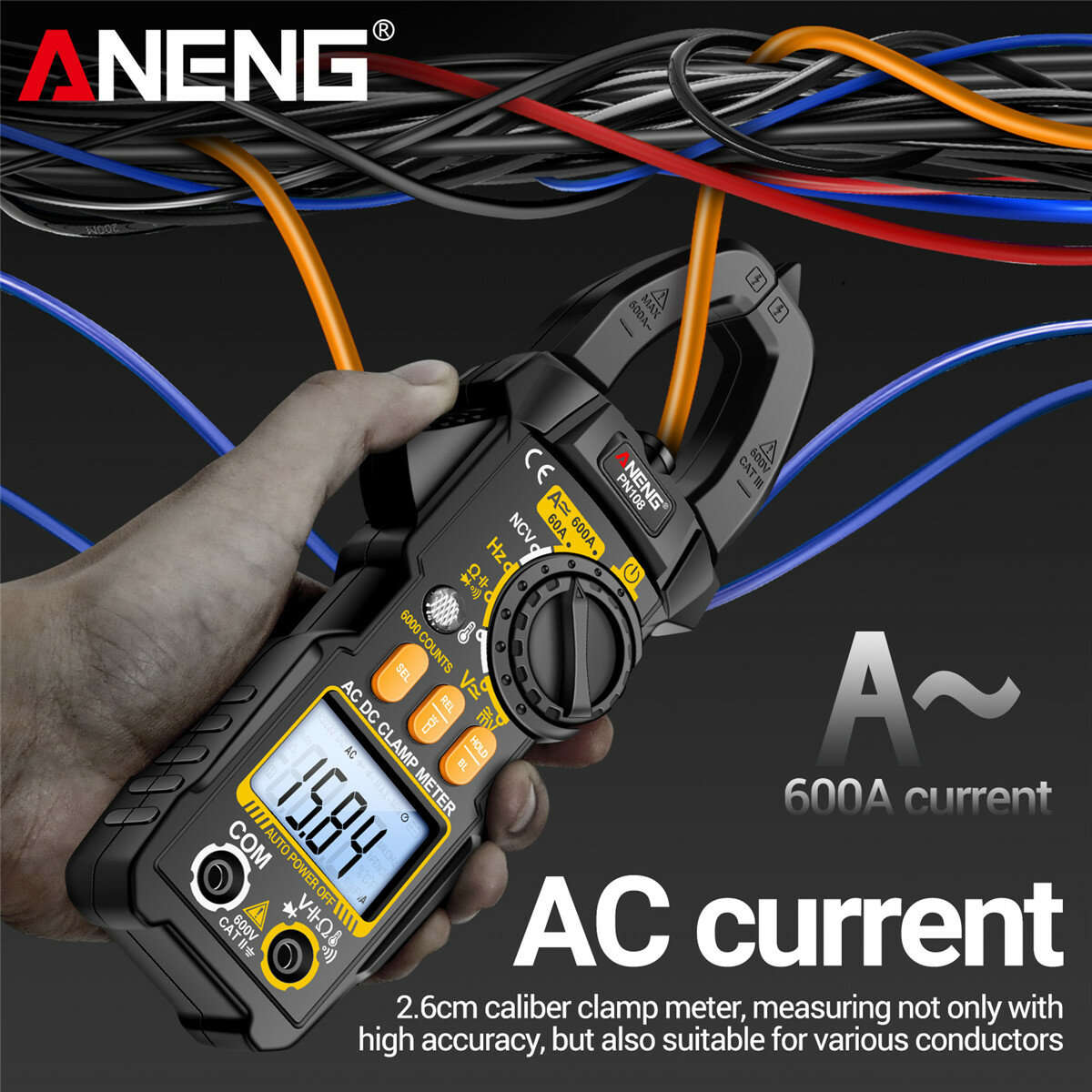

High-Precision Measurement: The PN108 Clamp Meter offers a wide array of measurement ranges and high precision across various functions. AC and DC voltage measurement ranges from 0mV to 600V with a precision of ±(1.2%+5) for AC and ±(1.0%+5) for DC. Current measurements range from 0A to 600A, with a precision of ±(4.0%+20) for AC and ±(2.0%+8) for DC. This ensures accurate and reliable readings for all your electrical diagnostics.
Comprehensive Functionality: This clamp meter isn't just limited to voltage and current; it also measures resistance from 0 to 20M, capacitance from 0nF to 99.99mF, frequency from 0Hz to 99.99kHz, and temperature from 0 to 1000 or 32°F to 1832°F. The auto power-off feature conserves battery life by shutting the device off after 15 minutes of inactivity.
User-Friendly Features: Designed for ease of use, the PN108 includes a data hold function to retain measurements, a backlit screen for clear visibility in all lighting conditions, and a flashlight for safe operation in dark environments. The buzzer and diode functions add extra usability for electronic circuit testing.
Robust Build: Constructed from high-quality ABS material, the PN108 is designed to withstand rigorous use. With a net weight of only 174g and compact dimensions, it is highly portable and easy to handle, making it suitable for both fieldwork and lab testing.
Indicator Functions: The meter features a maximum count of 6000 for accurate readings and includes a low battery indicator to ensure you are never caught off guard during important measurements. The inclusion of a non-contact voltage (NCV) detector provides an additional level of safety by allowing you to detect voltage without making direct contact with the conductive parts.
Specifications:
Brand: ANENG
Model: PN108
Function Resolution Precision Range
AC Voltage: 0.001V - 0.1V ±(1.2%+5) 0mV-600V
DC Voltage: 0.001V - 0.1V ±(1.0%+5) 0mV-600V
AC Current: 0.001A - 1.0A ±(4.0%+20) 0A-600A
DC Current: 0.01A - 1A ±(2.0%+8) 0A-600A
Resistance: 0.1 - 0.1M ±(1.2%+3) 0-20M
Capacitance: 0.001nF - 0.01mF ±(5.0%+5) 0nF-99.99mF
Frequency: 0.001Hz - 0.01KHz ±(0.3%+5) 0Hz-99.99kHz
Temperature: 1°C ±(1.9%+5) 0°C-1000°C / 1°F ±(1.9%+6) 0°F-1832°F
Auto Power Off
Battery Type: AAA Battery x 2
Buzzer, Diode
Data Hold, Screen Backlight, Flashlight
Weight: 174g
Max Count: 6000 Counts
Material: ABS
Optional Color: Red/Black
Package Included:
1 x Clamp Meter(Color as your choice)
1 x Packing Box
1 x Storage Bag
1 x Manual
1 x Test Pen Line
1 x Temperature Line
