Specifications:
- Infrared Sensor: MLX90640ESF-BAB
- Visible Light Camera Model: OV2640
- Hardware Resolution: 32*24 pixels
- Screen Resolution: 480*320 pixels
- Temperature Measurement Range: -40°C to 450°C
- Measurement Accuracy: ±2°C
- Operating Temperature: 0°C-50°C
- Refresh Rate: 4Hz
- Field of View: FOV = 55°*35°
- Emissivity: Adjustable from 0.01 to 0.99
- Charging Specification: USB Type-C, 5V/1A
- Product Dimensions: 100*80*20mm
- Battery Specification: 3.7V 1800mAh lithium-ion battery
Features:
1. Professional Thermal Imaging Technology:

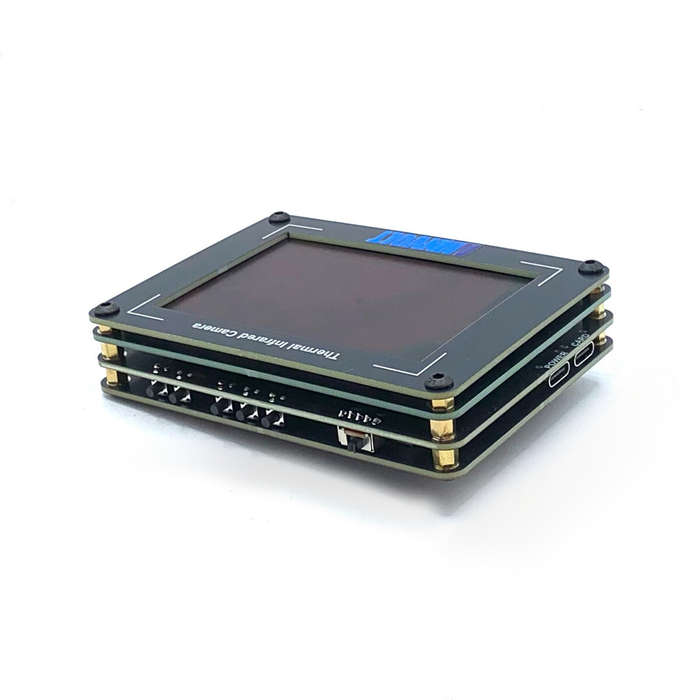

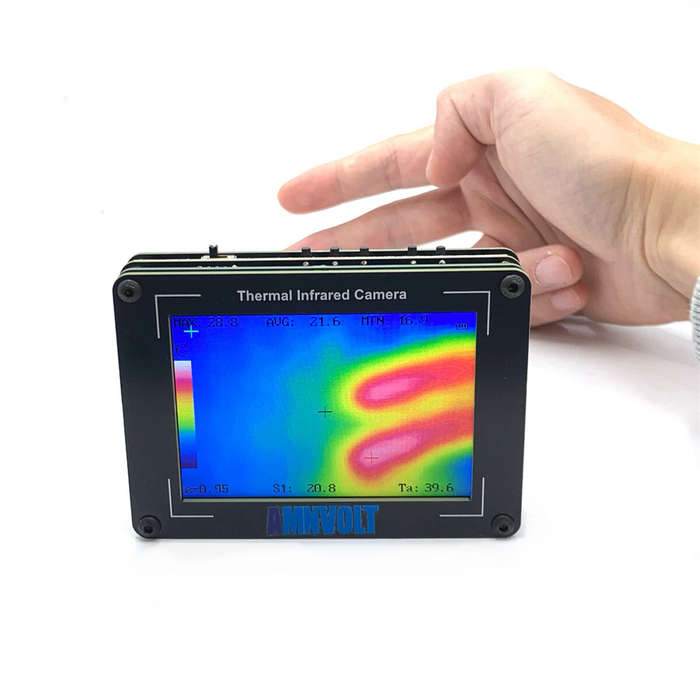

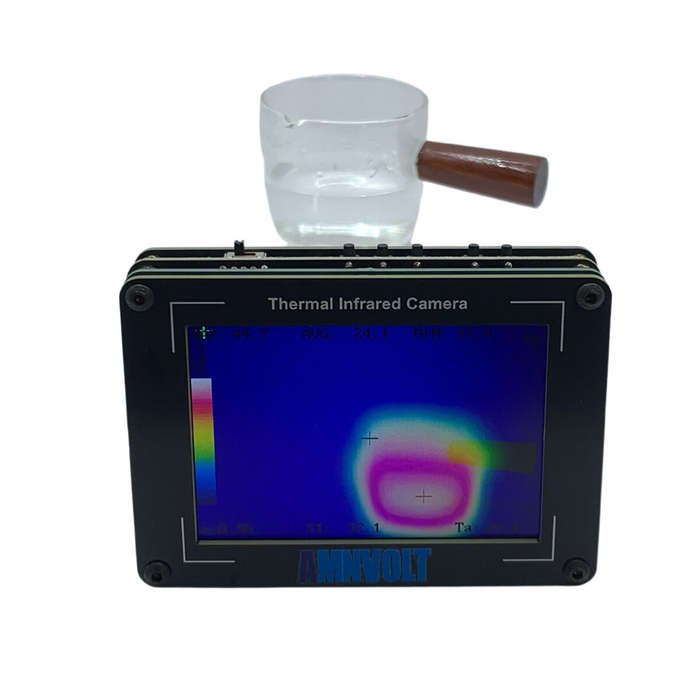

The OVMLX Model is a high-performance thermal imager featuring an advanced MLX90640ESF-BAB infrared sensor and OV2640 visible light camera, providing clear thermal imaging for various applications.
2. High-Resolution Display:
With a 32*24 pixel far-infrared array and a 480*320 pixel 3.5-inch TFT
