Description:

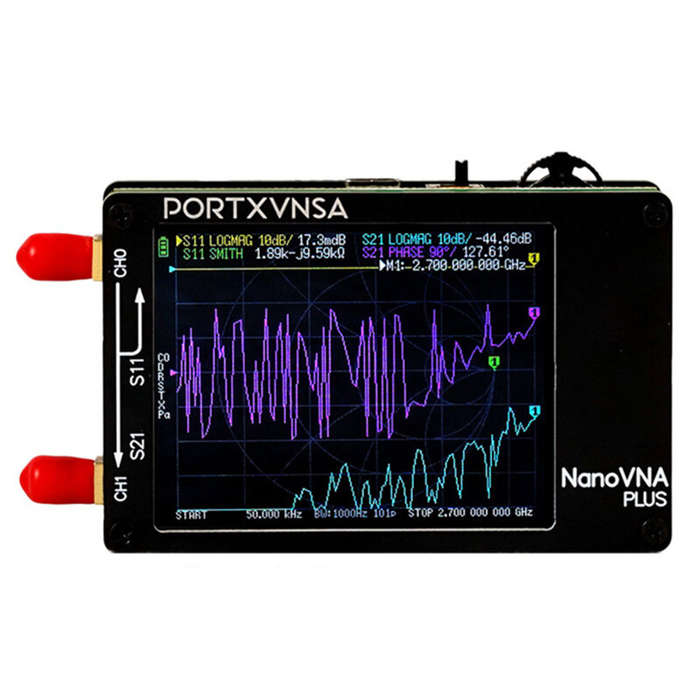

NanoVNA Plus is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. Originally designed by edv555. After several upgrades, NanoVNA Plus is the highest performance version at present, with the measurement frequency range upgraded to 50KHz-2.7GHz, and the performance is better than the previous 1.5GHZ old version
Specifications:

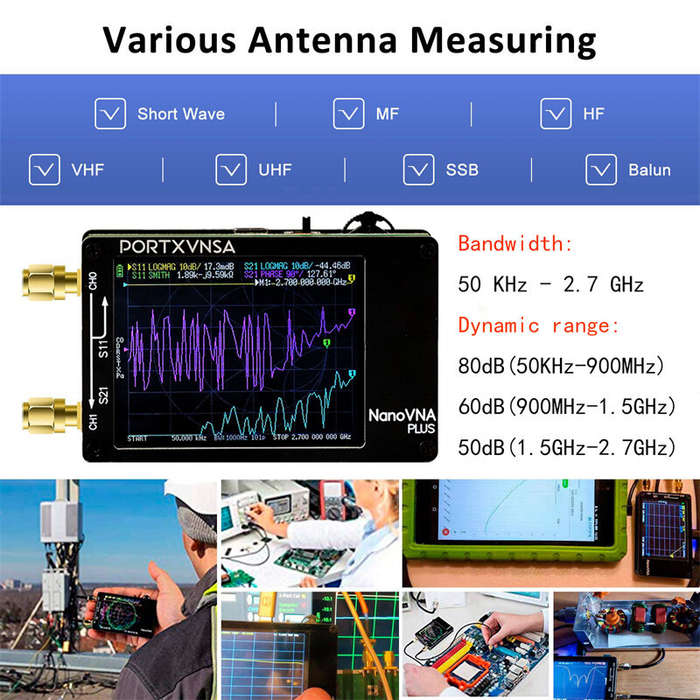

Bandwidth: 50KHz-2.7GHz
Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)
Reflection coefficient: SWR : <1.1
Frequency accuracy: <0.5 ppm
Frequency stability: <2.5 ppm
Scan points: 101

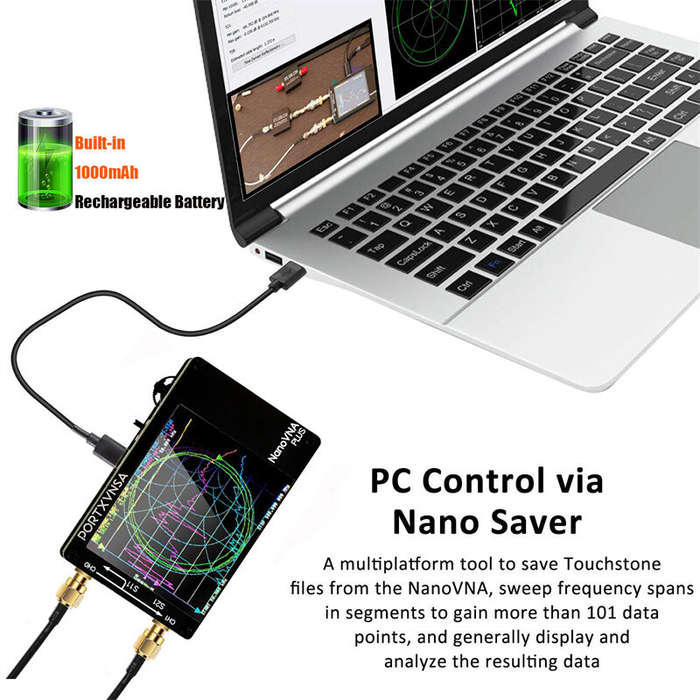

Built-in battery capacity: 1000mAh
MicroSD supports up to 32GB, and only supports SPI mode.
Add RTC support;
Change port names to Port1 and Port2
Measure S parameters, VSWR, pha
