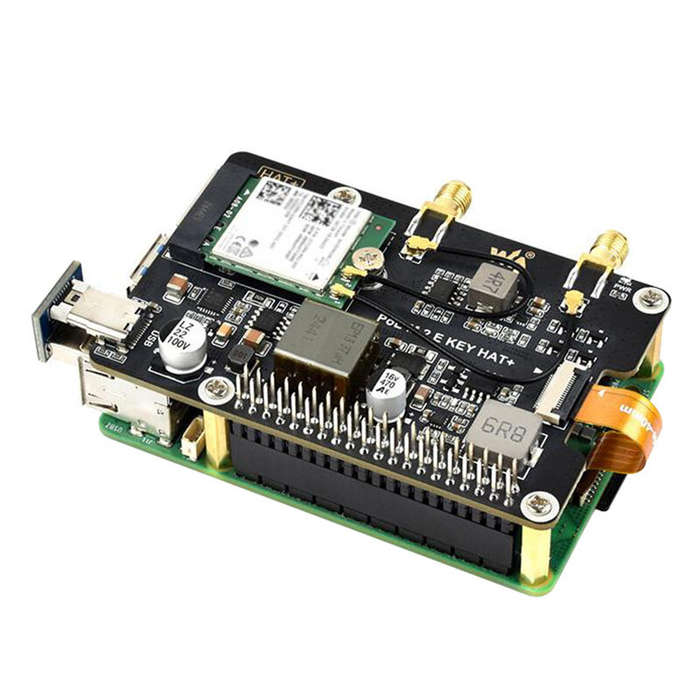

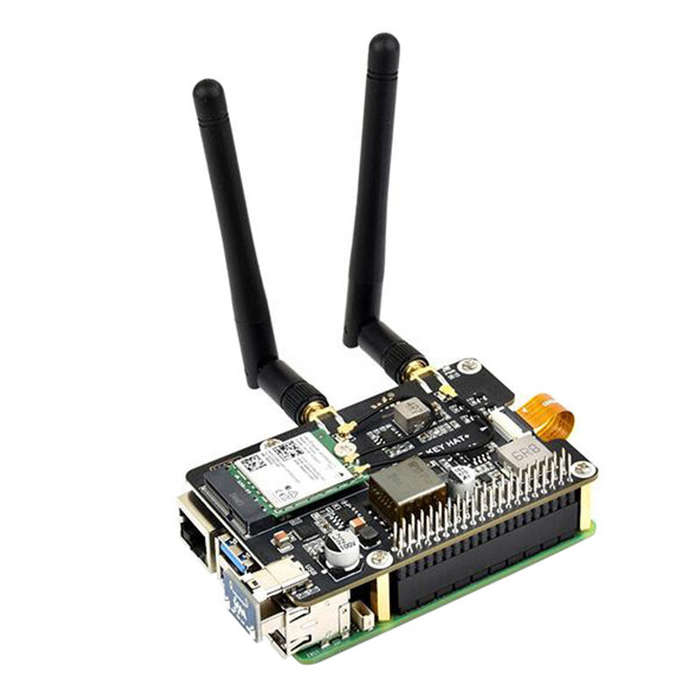

Black - Raspberry Pi 5 PCIe to M.2 E Key Adapter Board with PoE Support 25W 5V 12V Output WiFi 7 6 A

Specification:

Product Name: PCIe to M.2 E Key Expansion Board

PoE power input: 37V -57V DC input
Power output:
GPIO pin header: 5V 4.5A (MAX)
2P pin header: 12V 2A (MAX)
Product size: 56.0 x85.0 (mm)
Network standard: Support IEEE 802.3af/at PoE
PCle interface type: M.2 E Key

Features:

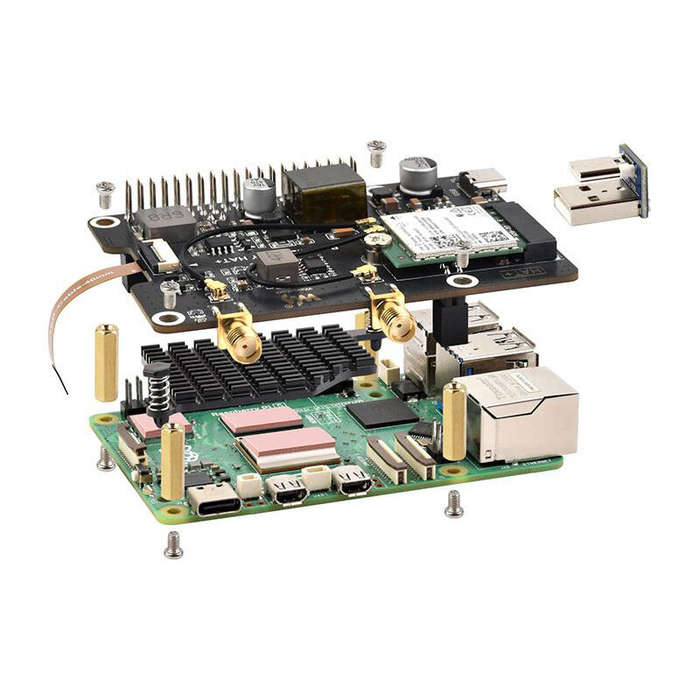

1. It can be connected to PI5 via a 16PIN cable. It is based on the Raspberry Pi 40PIN GPIO interface design, and the pin header is led out on the top, which is convenient for connecting to other Raspberry Pi expansion boards.
2. Supports PoE Ethernet power supply. Only one network cable is needed to connect to the PoE device to enable the Raspberry Pi to connect to the Internet and power it.
3. Onboard multiple power supply interfaces, onboard 5V and 12V pin header power supply interfaces, and the t
