Specifications:

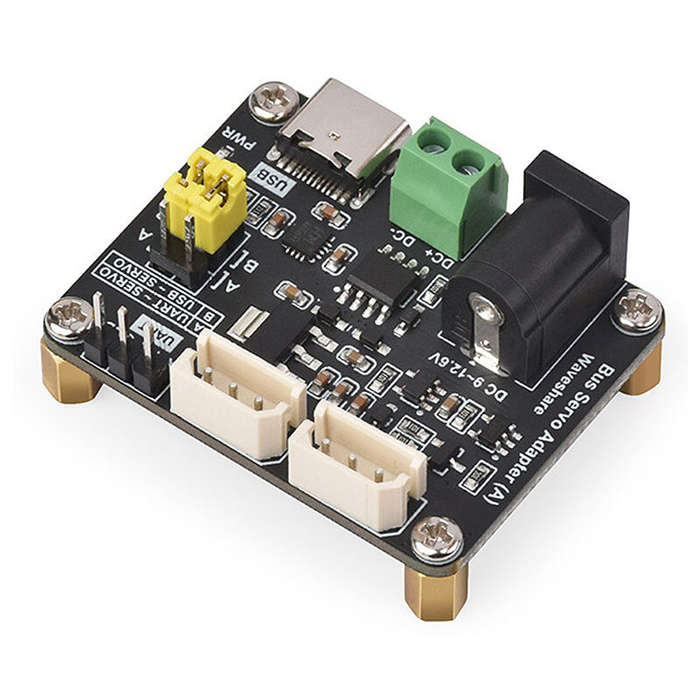

Product Name: Raspberry Pi Serial Bus Servo Driver Board Module
Power Supply Voltage: DC 9~12.6V (For ST Series Servos)
Power Interface: 5.5*2.1mm DC
Communication Interface: UART
Dimensions: 42.00 × 33.00mm
Positioning Hole Diameter: 2.50mm
Positioning Hole Spacing: 37.00 × 28.00mm
Features:
1. Compatible with upper-level computer or MCU for controlling serial bus servos.
2. Can simultaneously control up to 253 ST/SC series serial bus servos (ensure sufficient power supply).
3. Supports voltage input range of 9~12.6V (ensure input voltage matches servo voltage).
4. Provides convenient serial bus servo control solution.
5. Integrated stable control circuitry to ensure reliable operation.
6. Compact design suitable for embedding into space-constrained projects.
