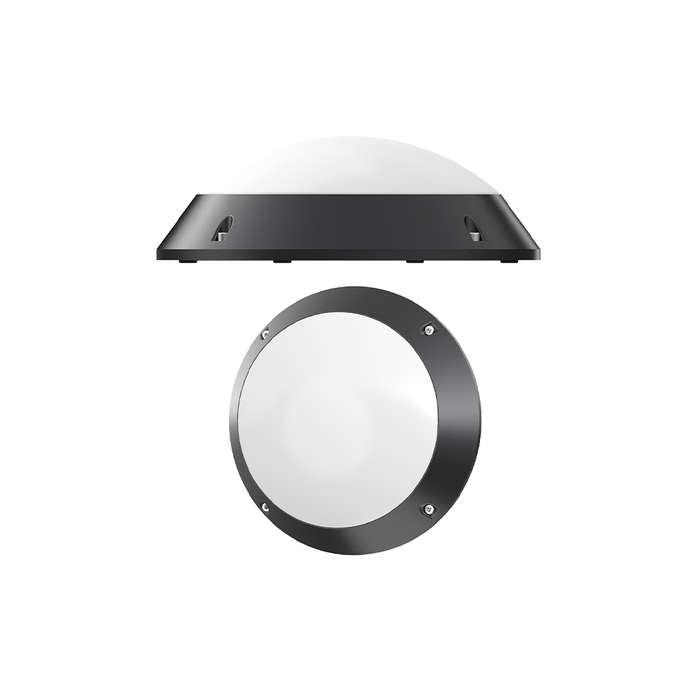

Black Round Bunker Bulkhead IP65 – 12W/16W/18W, 4CCT

Bunker IP65 Aluminium Round Bulkhead Black (12W / 16W / 18W, 4CCT)

A rugged, project-ready round bulkhead in a sleek black finish. Built from aluminium with a tough PC diffuser, it's IP65 weatherproof and IK08 impact resistant for dependable performance indoors or out. The fitting supports three power settings (12W / 16W / 18W) and 4CCT selection (2200K / 3000K / 4000K / 6000K) to match ambience or task. High efficiency at 130 lm/W and 2kV surge protection make it a solid choice for estates, parking areas, corridors and perimeter lighting.

Pro Tip: Set warmer tones (22003000K) for residential walkways and cooler tones (40006000K) for security and high-visibility areas. The body is Emergency Kit ready for backup integration.

Key Features

• Black aluminium round bulkhead with PC diffuser
• Selectable power: 12W / 16W / 18W
• 4CCT: 2200K / 3000K / 4000K / 6000K
• High efficacy: 130 lm/W (energy saving)
• IP65 weatherproof & IK08 impact resistant
• 2kV surge protection
• Suitable for Emergency Battery Backup Kit (optional)
• 5 Year Warranty

Specifications

• Finish / Colour: Black
• Housing: Aluminium + Polycarbonate
• Wattage Options: 12W / 16W / 18W
• Colour Temperature (4CCT): 2200K / 3000K / 4000K / 6000K
• Luminous Efficacy: 130 lm/W
  • 12W up to 1,560 lm
  • 16W up to 2,080 lm
  • 18W up to 2,340 lm
• CRI: >80
• Beam Angle: 120°
• Input Voltage: 100265V AC
• Operating Temp: -20 ~ +45 °C
• LED Chips: Sanan 2835
• IK Rating: IK08
• IP Rating: IP65
• Dimmable: No
• Surge Protection: 2kV
• Certifications: CE
• IES File: Yes
• Emergency: Compatible with Emergency Battery Backup Kit (not included)
• Warranty: 5 Years
• Also Available: White finish

Ideal Applications

• Perimeter & security lighting
• Parking areas, passageways, stairwells
• Estate, commercial and industrial sites

Why Choose This Bulkhead?

• One body covers multiple outputs & colour temperatures
• Engineered for harsh environments (IP65/IK08/2kV)
• Emergency-ready design for compliance and safety
