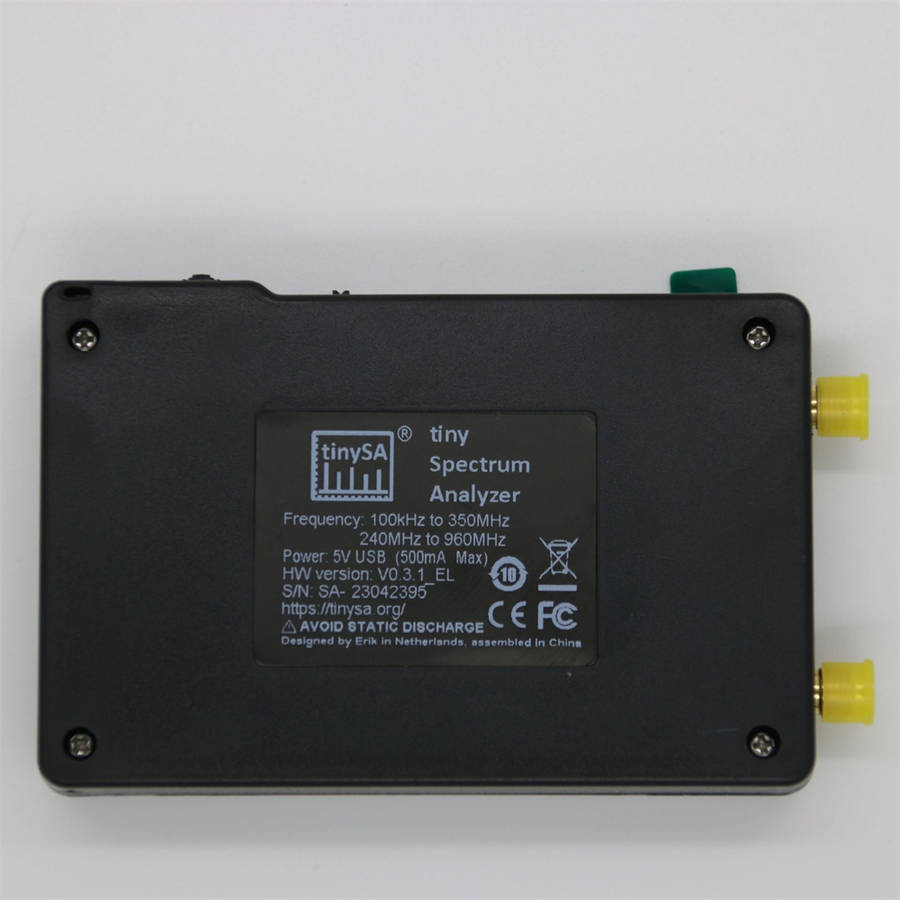

Name: Black - TinySA Handheld Spectrum Analyzer 2.8 Inch Touchscreen 100kHz to 960MHz Frequency Range RF S
SKU: 2037287-POA11639033
Price: 1914.11 ZAR
Availability: SoldOut

Black - TinySA Handheld Spectrum Analyzer 2.8 Inch Touchscreen 100kHz to 960MHz Frequency Range RF S

New

2 were available

Indicative market price: R2,934.55

R1,914.11

35% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10393

95.65 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

2037287-POA11639033

Bob Shop ID

672539614

Specifications:
Housing Material: ABS
Dimensions: 58.7mm x 91.3mm x 17.1mm (excluding protruding parts)
Frequency Accuracy: <2ppm
Frequency Stability: <1ppm
Display: 2.8-inch TFT (320 x 240) resistive touchscreen
USB Interface: Type-C, CDC (serial communication mode)
Power Source: USB 5V, 150mA; internal 650mAh battery with max charging current of 300mA. Charging time: 1-2 hours
Low Input Mode:
Frequency Range: 100kHz—350MHz
Input Attenuation: Manual and automatic; 0dB—31dB, adjustable in 1dB steps
Maximum Input Level: +10dBm with no attenuation; damage occurs at +20dBm
Minimum Detectable Signal: -102dBm @ 30kHz RBW
Phase Noise: -90dB/Hz @ 100kHz offsets; -115dB/Hz @ 1MHz offsets
Resolution Bandwidth Options: 3, 10, 30, 100, 300, 600kHz, with auto-selection available
High Input Mode:
Frequency Range: 240MHz—960MHz
Impedance: Frequency-dependent; varies from 50
Minimum Detectable Signal: -115dBm @ 30kHz RBW
Resolution Bandwidth Options: Same as low input mode
Output Mode:
Low Output:
Frequency Range: 100kHz—350MHz
Output Level: Adjustable from -76dBm to -6dBm in 1dB steps
Signal Type: Sine wave (harmonics suppressed by >40dB)
High Output:
Frequency Range: 240MHz—960MHz
Output Level: Adjustable from -38dBm to +13dBm
Signal Type: SW
Reference Signal Generator:
Available Frequencies: 1MHz, 2MHz, 4MHz, 10MHz, 15MHz, 30MHz
Signal Type: SW
Power Level: Approx. -25dBm

Features:
1.Wide Frequency Coverage: Supports signal analysis and generation for a broad spectrum of frequencies (100kHz to 960MHz), making it versatile for RF testing scenarios.
2.Compact and Portable Design: With dimensions of 58.7mm x 91.3mm x 17.1mm, this handheld device is travel-friendly and convenient for on-site measurements.
3.Powerful Display: Equipped with a 2.8-inch color TFT touchscreen, enabling clear visualizations and intuitive interactions for real-time frequency analysis.
4.Multiple Input Modes: Includes low-input and high-input modes tailored for signal clarity across varied ranges, with adjustable attenuation for precise measurements.
5.Flexible Output Options: Offers sine wave andsquare wave signals with modulations, enabling basic RF output testing and communications troubleshooting.

Package Included:
1 x Spectrum Analyzer Set
