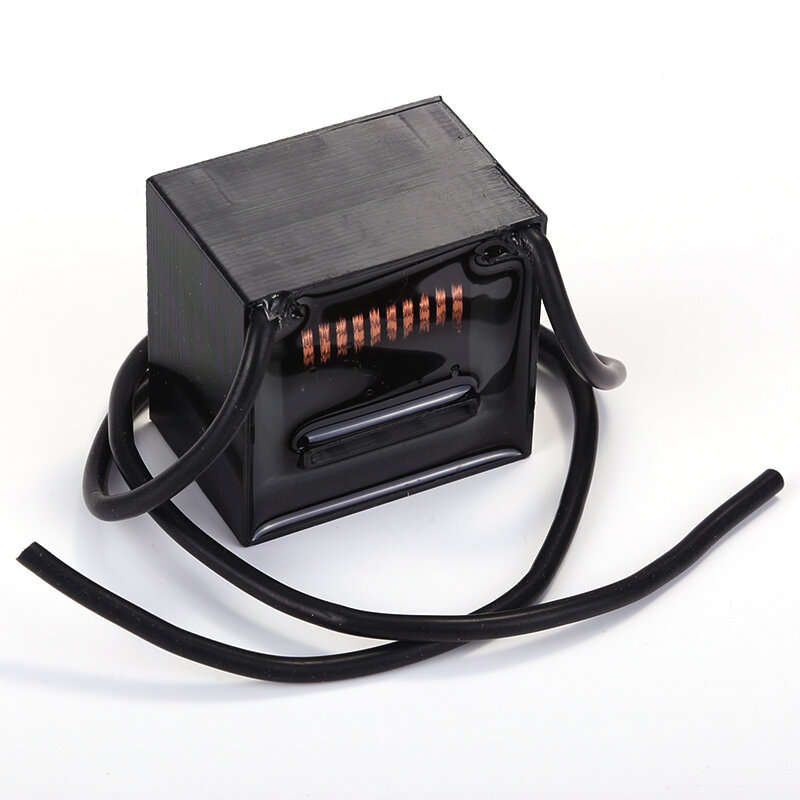

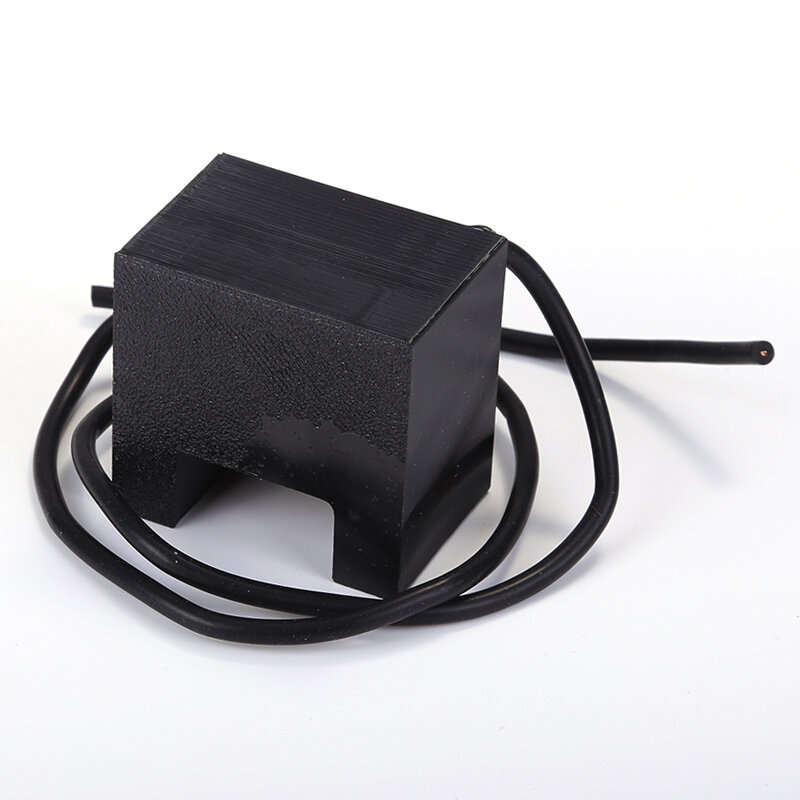

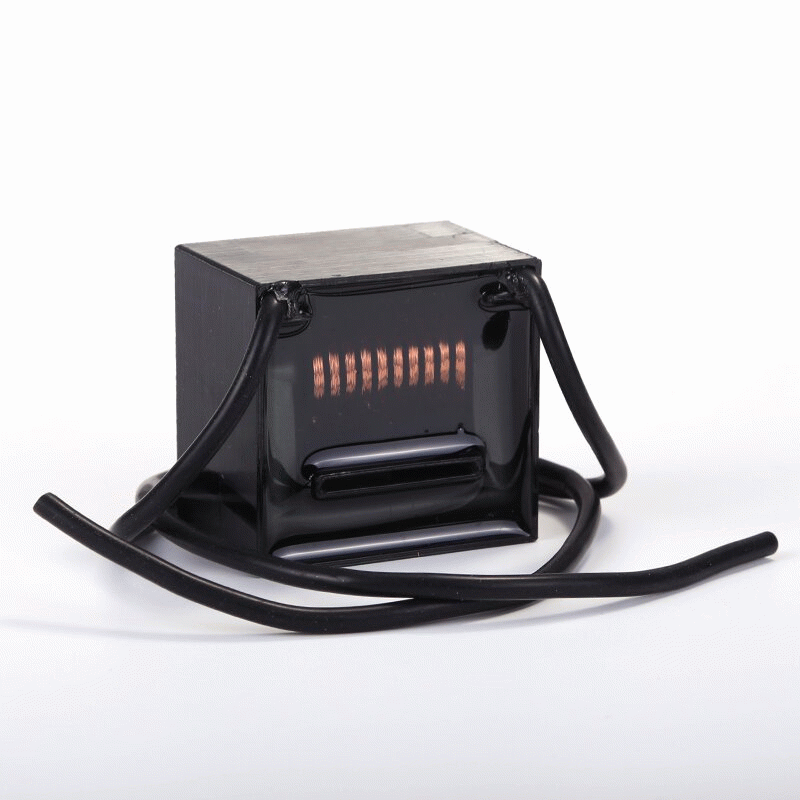

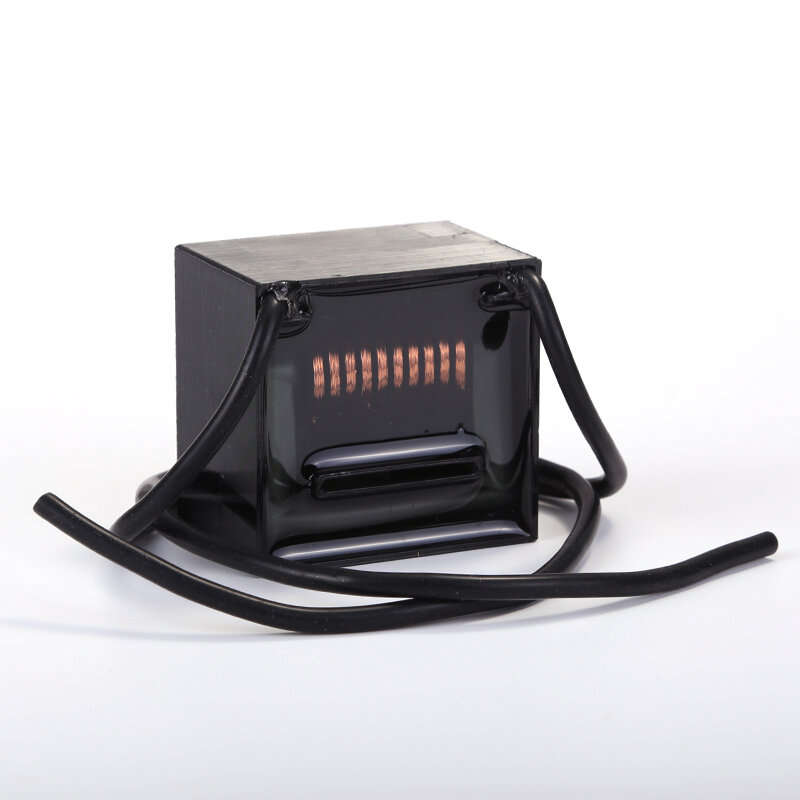

Black - UY10 High Frequency High Voltage Transformer 30KV 23KHz to 130KHz 100W Continuous Power Ozon

Product Overview:
The UY10 high-frequency high-voltage transformer is a high-performance step-up module designed for high-voltage applications such as ozone generators, fume purification equipment, and negative ion generators. Manufactured using high-quality materials and precision processes, it features high voltage resistance, high efficiency, and strong stability, making it suitable for various high-voltage requirements in industrial and environmental fields.

Specifications:
Product Type: High Frequency and High Voltage Transformer
Dimensions: 50mm (L) x 48mm (W) x 30mm (H)
Frequency Range: 23KHz to 130KHz
Turns Ratio: 5:900
Wire Diameter: Primary 1mm; Secondary 0.16mm
Resistance: 42
Encapsulation: Epoxy Resin Hard Gel
Maximum Voltage Resistance: 30KV (Recommended 20KV)
Power Capacity: 100W for continuous operation, 200W for short-term operation

Features:
1. High Voltage Capability
Capable of delivering up to 30KV, meeting the needs of high-voltage applications such as ozone generators, grease purification, and ionization equipment.
2. Wide Frequency Range
Supports adjustable frequencies from 23KHz to 130KHz, ensuring compatibility with various control systems for industrial and environmental applications.
3. Optimized Wire Design
The primary coil uses 1mm wire and the secondary coil features 0.16mm wire for high electrical conductivity and optimized efficiency.
4. Reliable and Strong Insulation
Encapsulated in epoxy resin hard gel, providing excellent insulation alongside protection from moisture, vibrations, and external environmental factors.
5. Sustained Power Output
Designed for reliable performance, with 100W continuous operation and a 200W short-term peak capacity to handle demanding tasks effectively.


Package Included:
1 x UY10 High Frequency High Voltage Transformer

Application Areas:
Industrial Ozone Generators
Commercial and Residential Kitchen Fume Purifiers
Negative Ion Air Purification Equipment
High-Voltage Ignition Systems
Scientific Experiment High-Voltage Power Supplies
Other Electronic Equipment Requiring High-Voltage Boost

Precautions for Use:
Please ensure operation within the recommended voltage range and avoid overloading.
During installation, ensure proper insulation and guarantee a dry and well-ventilated environment.
