Specifications:
Infrared Resolution: 32 x 24 pixels
Thermal Camera Field of View (FOV): 55° x 35°
Temperature Range: -40°C to +300°C
Measurement Accuracy: ±2°C (Center point, target temperature 0°C to 100°C)
Refresh Rate: 8 Hz
Display: 1.8-inch TFT (Resolution 160x120)

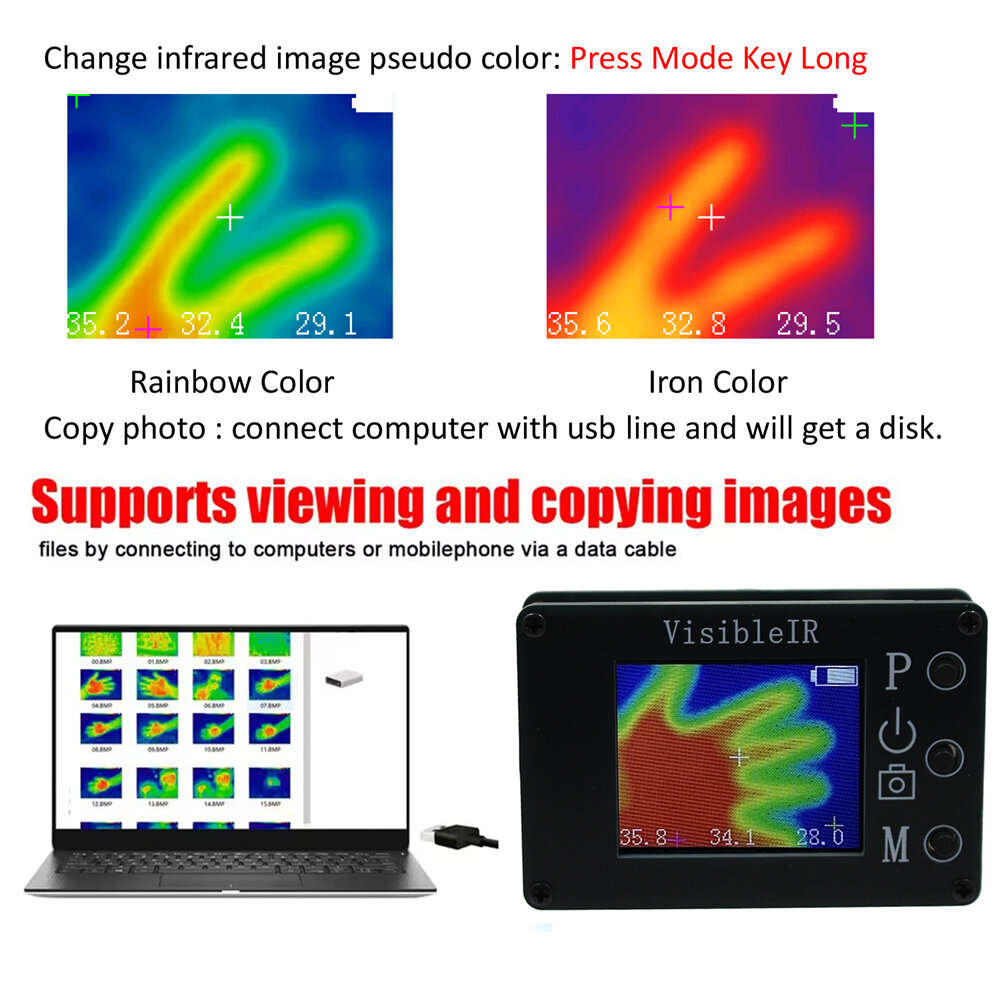

Color Palettes: Rainbow, Iron Red

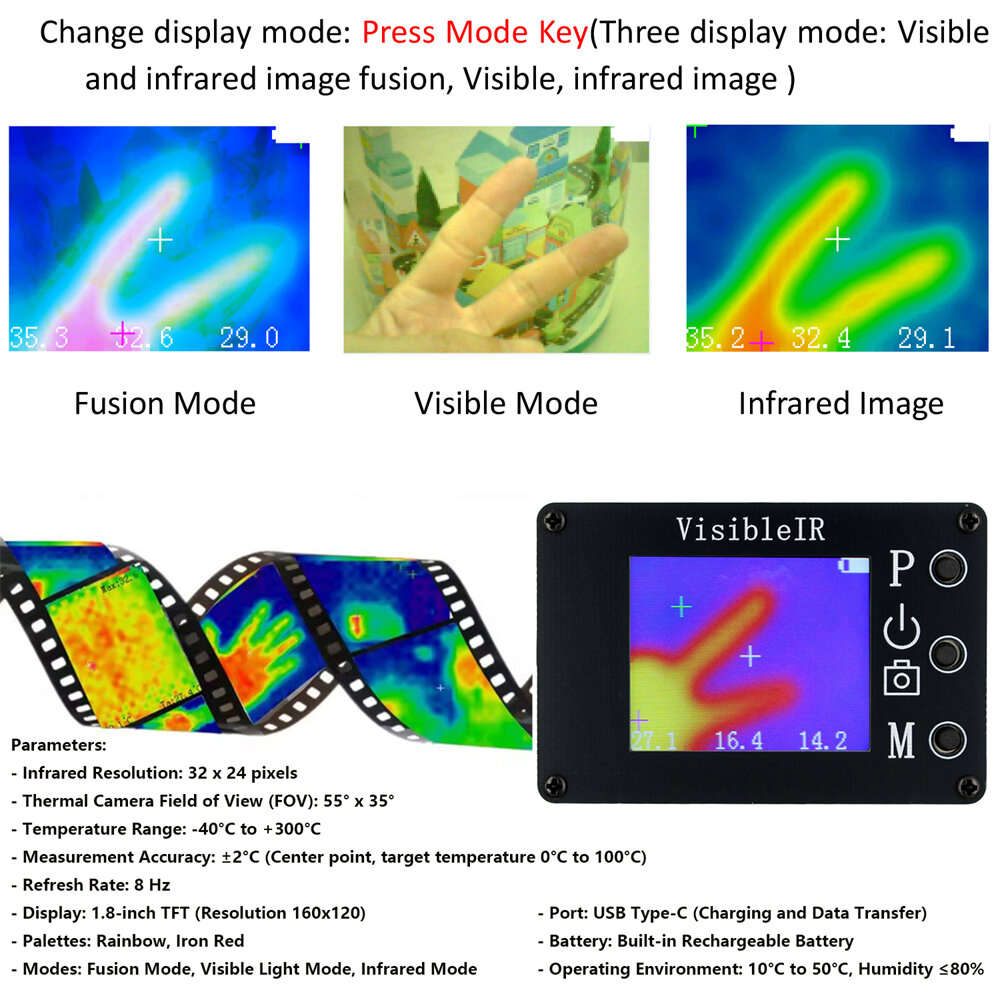

Modes: Fusion Mode, Visible Light Mode, Infrared Mode
Port: USB Type-C (Charging and Data Transfer)
Battery: Built-in Rechargeable Battery
Operating Environment: 10°C to 50°C, Humidity 80%
Features:
1.Dual-Vision Display Options: Three modes—Fusion, Infrared, and Visible Light—allow enhanced heat localization for precise inspection.
2.Customizable Display Colors: Two palettes (Rainbow and Iron Red) provide flexible visual styles adapted for different temperature analyses.
3.Effortless Data Sharing: USB Type-C connectivity enables quick file transfer for further examination and reporting.
4.Compact Design: Lightweight with a 1.8-inch screen for convenient usage in home projects and portable applications.

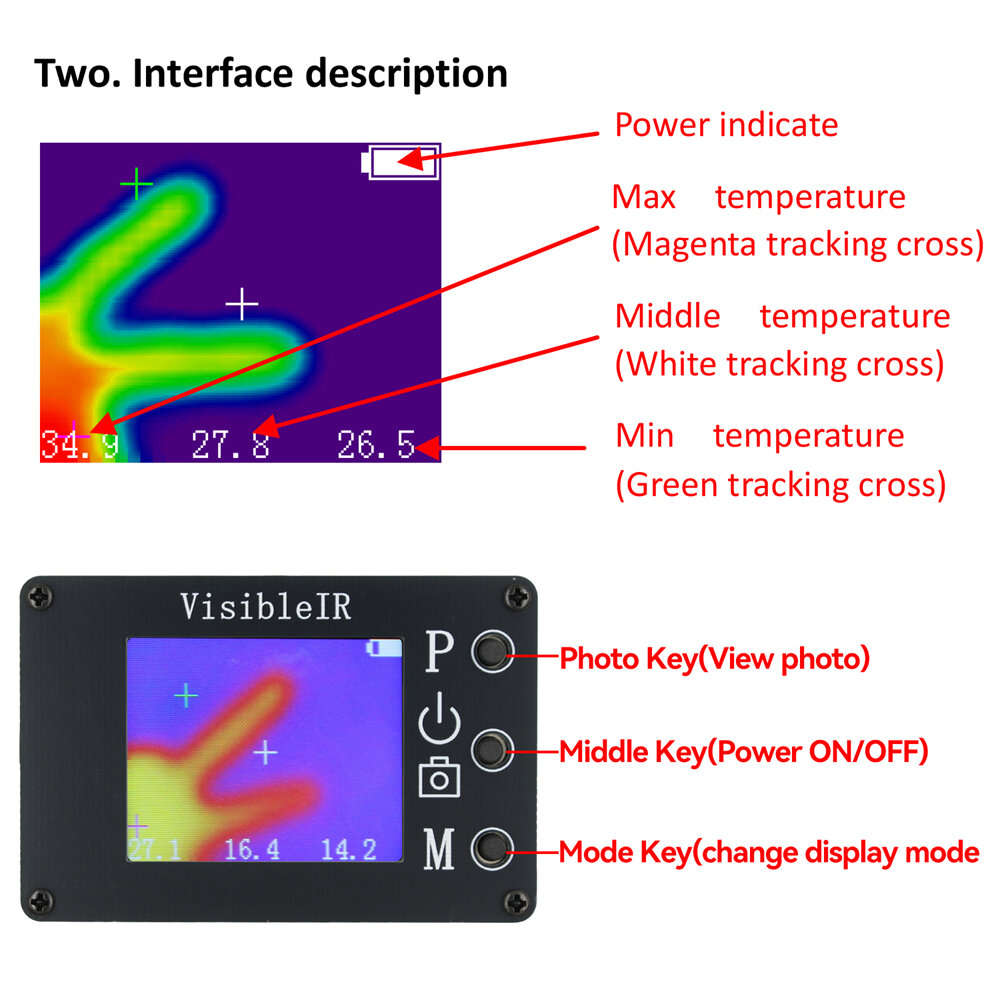

5.Straightforward Operation: Simple button controls ensure instant use without extensive setup or calibration.
Package Included:
1 x VisibleIR B18 Thermal Camera
