Specifications:
Brand: YUEHOO

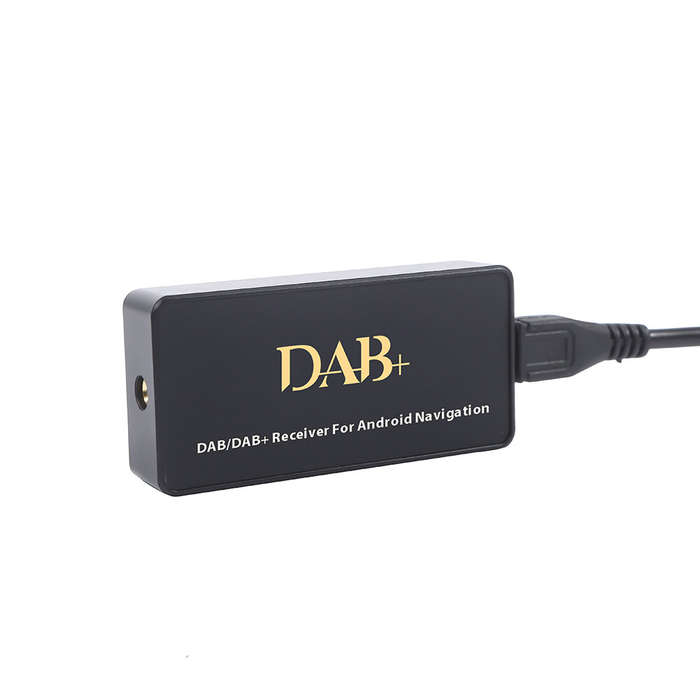

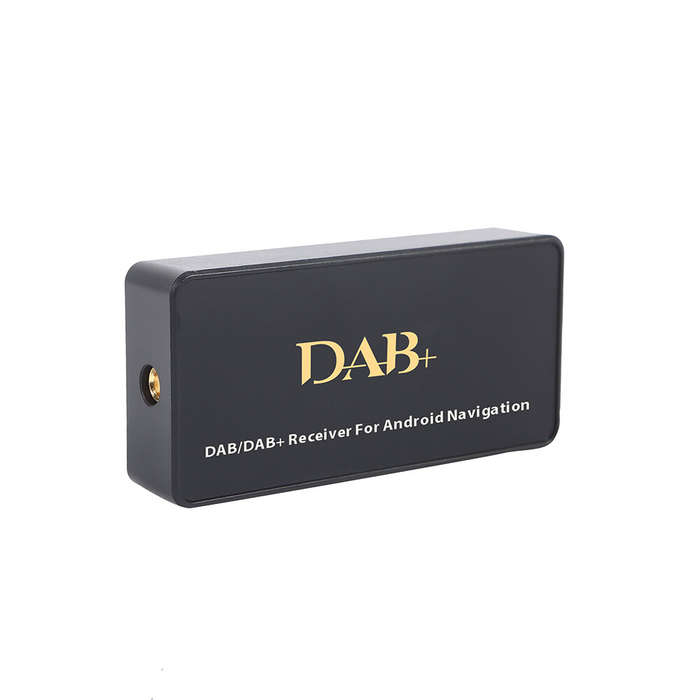

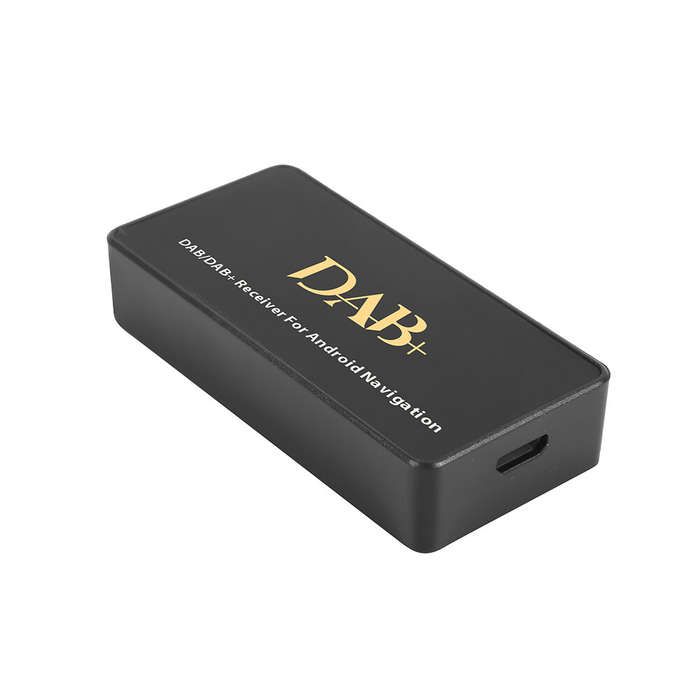

Product Name: DAB/DAB+ Receiver Box
Model: DAB-004
Version: Ver1.0
Product Specifications:
Dimensions:
Length: 60mm
Width: 29mm
Height: 12.75mm
Interface:
Power Supply: MicroUSB interface, input +5V/200mA
Antenna Interface: MCX interface, output +5V/200mA
Module Specifications:
Power Supply and Consumption:
Voltage Regulation: 4.5-5.5V (5V external supply)
Supply Current: 70-100mA (5V external supply)
Power Consumption: 0.2-0.3W (5V external supply)
Environmental & Physical:
Operating Temperature: -40 to 85°C
Storage Temperature: -40 to 85°C
Electrical Performance:
Band III RF Frequency: 174-240 MHz
Band III Sensitivity: -98 to -99 dBm (EN50248)
Input Impedance: 50 Ohm
Features:
- High Compatibility: The DAB/DAB+ Receiver Box is designed for seamless integration with Android-based car audio
