Specifications:
Brand: ONDO

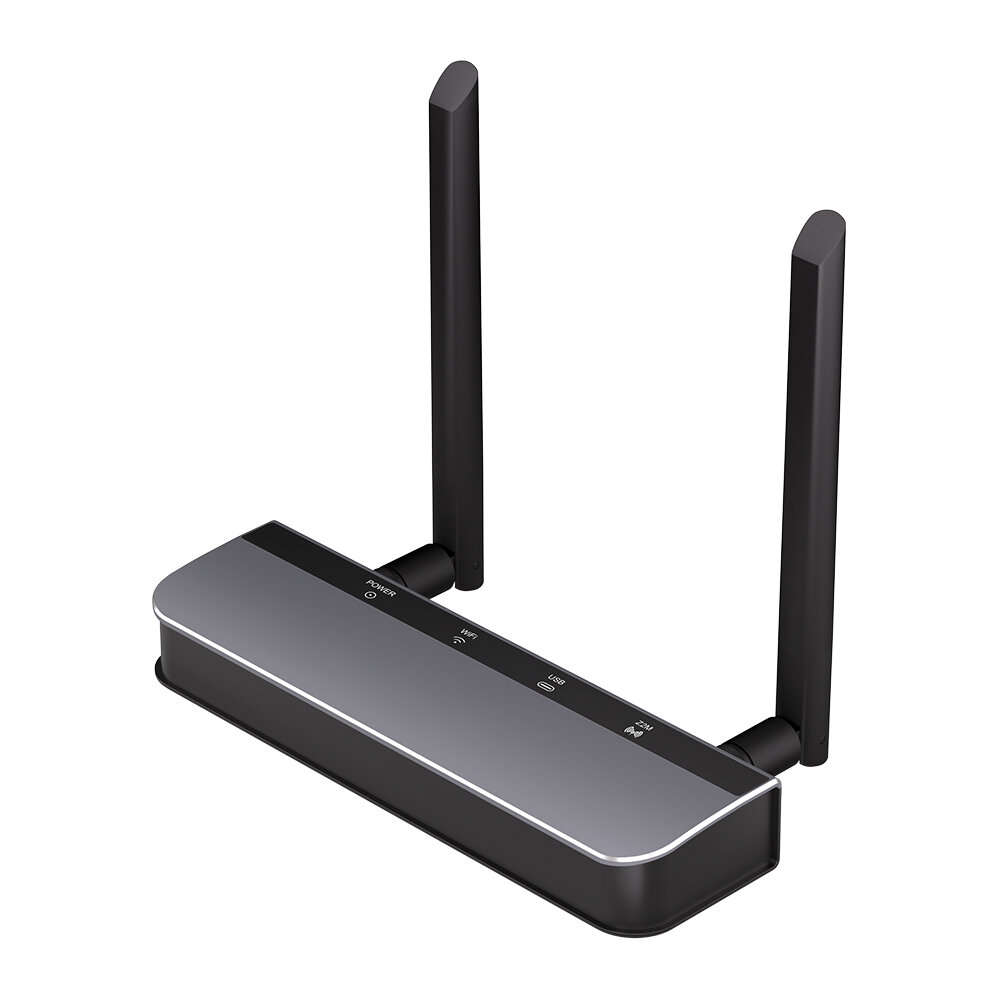

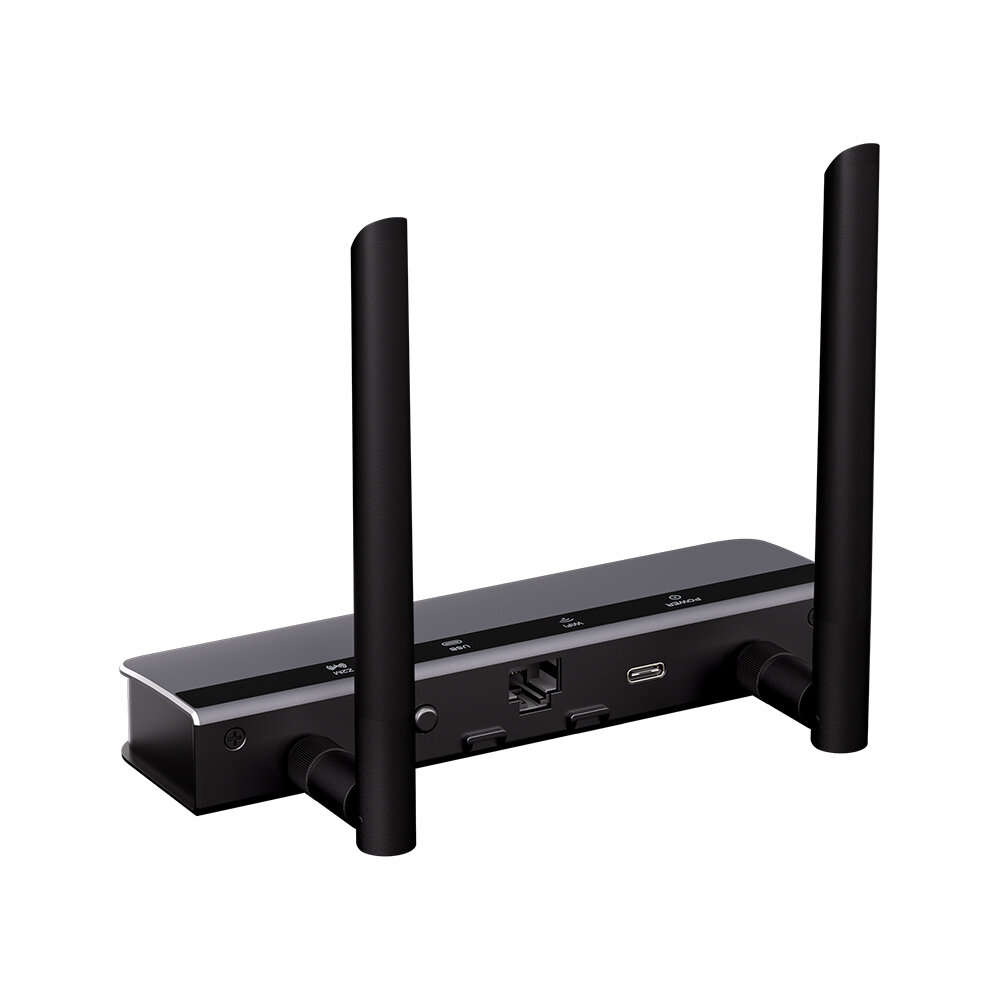

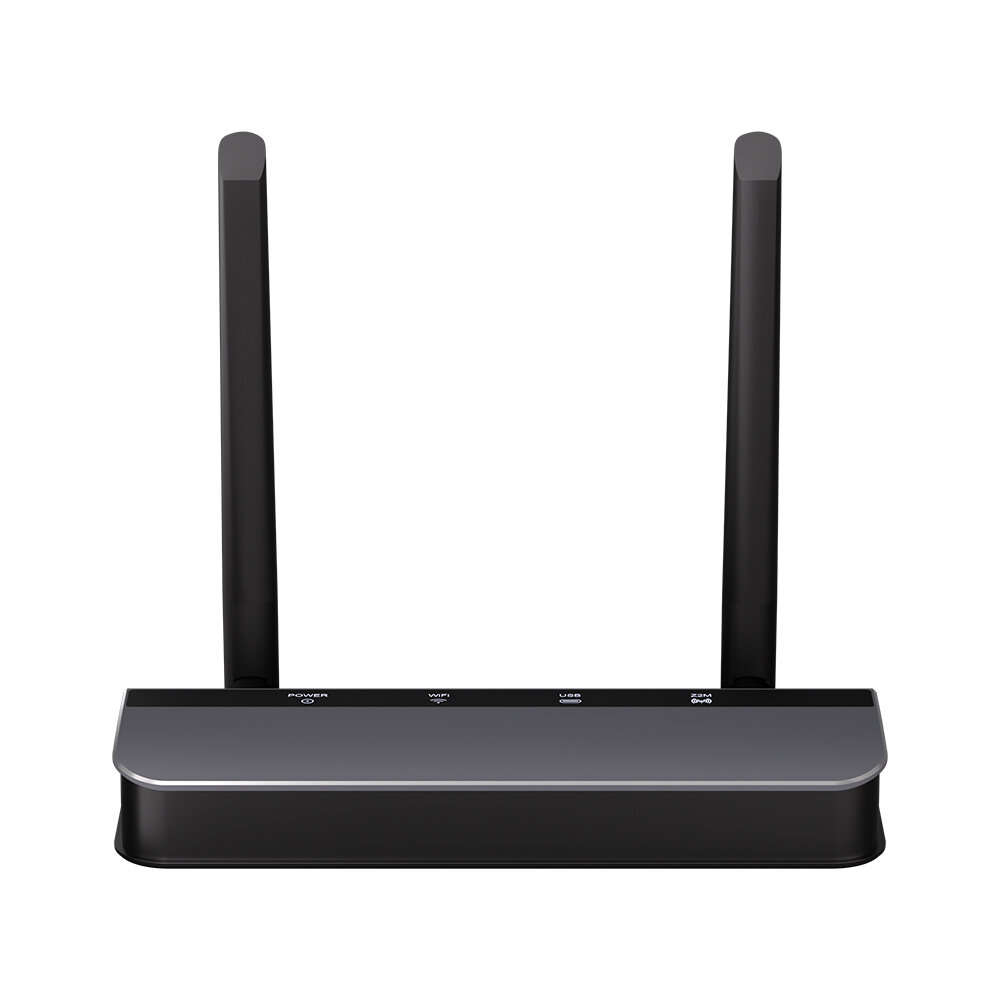

Product Name: ZigBee3.0/Thread PoE Dongle Gateway
Model: GW90-POE-Ti
Wireless Network: IEEE 802.11b/g/n, 2.4GHz
Supported Platform: Home Assistant
Power Supply: PoE / Type-C
Chipset: ESP32 + CC2652P
Coverage Range: 200 meters
Antenna: Dual 5dB antennas, with 360° rotation capability
Network Port Type: RJ45
Supported Protocols: WiFi, Zigbee3.0, MQTT
Operating Temperature: -10°C to 60°C
Interfaces: Ethernet / USB / WiFi
Dimensions: 157 × 45 × 23 mm
Material: Aluminum alloy
Input: 5V 1A for Type-C; 48V 0.25A for PoE port
Features:
1. ZigBee3.0 gateway design compatible with a wide range of ZigBee3.0 devices for smart home integration.
2. Supports 3 connection methods: Ethernet, WiFi, and USB, offering flexible installation options.
3. PoE and Type-C power supply supported for easier deployment in different environments.
4. ESP32 + CC2652P chip combination with 240MHz processor and 16MB memory for stable gateway operation.
5. Dual 5dBi external antennas with adjustable 360°/90° positioning to improve signal coverage.
6. Works with Home Assistant and Zigbee2MQTT, suitable for use with Home Assistant Green, Home Assistant Yellow, HA70, HA80, and Raspberry Pi.
Package Includes:
1 x ZigBee3.0/Thread PoE Dongle Gateway
2 x External Antennas
1 x USB Cable
1 x Mounting Bracket
2 x Screws
2 x Wall Plugs
1 x Adhesive Pad
1 x User Manual
