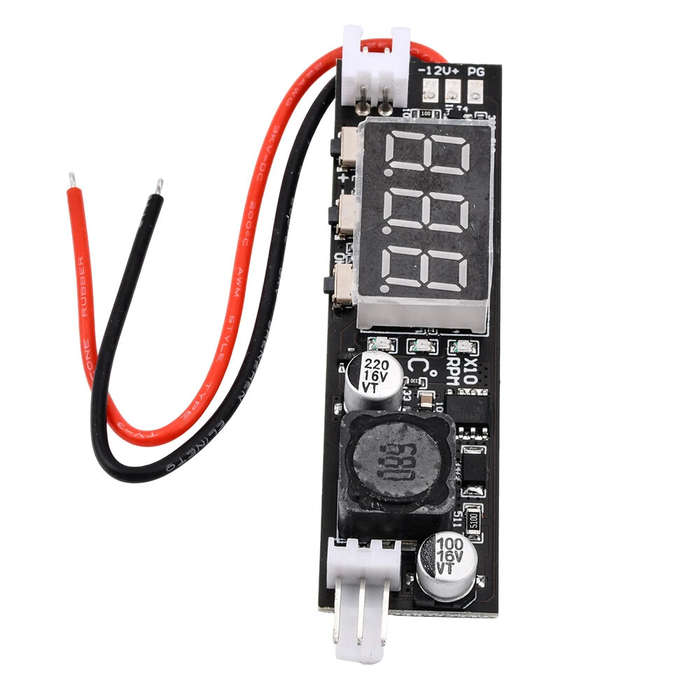

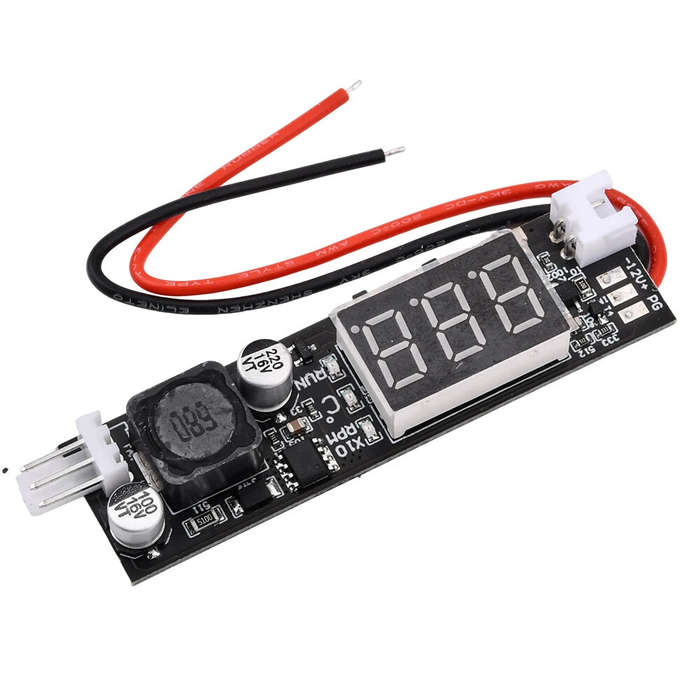

Features:
1. Use high-quality materials with guaranteed quality
2. Small size and exquisite appearance
3. 2-3-wire fan temperature control speed controller
4. Support 0.2-2A current range fan
5. Wide application range
Parameter:
Design power supply voltage: DC12V
Voltage range: DC9.5-14.5V (circuit working voltage, please pay attention to the fan voltage range)
Circuit self consumption: less than 70mA (tested at 12V)
Fan current: 0.2-2A (control effect deteriorates below 0.2A)
Temperature measurement range: -9.9-99.9
Temperature measurement error: within the range of 0-50 , the error is less than 1.2 , and in other ranges, the error is less than 2 . Circuit board size: 70 * 19 * 11 (length, width, height, mm, excluding protruding interfaces)
Default factory settings: acceleration (sta
