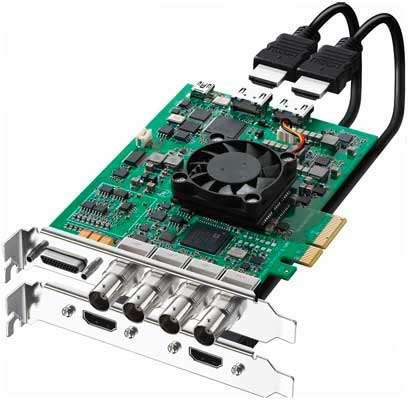

BlackMagic Design DeckLink HD Extreme 3D
Get the world\'s highest quality 2D and 3D workflows!
The new DeckLink HD Extreme 3D includes SDI, HDMI 1.4, analog component, analog and AES/EBU audio and more. Now you can capture and play back from virtually any video and audio device, even in 3D! DeckLink HD Extreme 3D also includes the latest technology for advanced full resolution 3D editing, including dual stream SDI capture and playback plus built in HDMI 1.4! Perfect for post production, broadcast and even feature film work, DeckLink HD Extreme 3D switches between SD and HD, and has built in 3 Gb/s SDI, 4:2:2 and 4:4:4 RGB, native 12 bit and frame rates right up to 1080p60! DeckLink HD Extreme 3D also features built in up, down and cross conversion, plus an internal SD/HD keyer.
Amazing 3D Workflow
DeckLink HD Extreme 3D is ready for advanced 3D workflows using either interleaved or dual stream capture and playback. Interleaved allows the left and right eye to be combined into a single frame, so you can edit 3D projects using a wide choice of editing software! Dual stream 3D capture and playback provides the highest quality 3D possible and is fully supported in DeckLink HD Extreme 3D. Using the dual SDI and HDMI 1.4 connections, full resolution video streams for left and right eye are split into two separate media files. You can easily capture, edit, monitor and output dual stream 3D using Avid Media Composer 6 because it fully supports DeckLink HD Extreme 3D. Your edited 3D sequence can then be color corrected with DaVinci Resolve using the simple AAF round trip with Media Composer. It could not be simpler to move projects between editing and color correction with these amazing tools!
World\'s Highest Quality
Fully compatible with SD-SDI and HD-SDI 4:2:2, new DeckLink HD Extreme 3D also features Dual Link HD-SDI 4:4:4 connections for feature film quality. Dual Link 4:4:4 is used on the latest Sony HDCAM SR decks, and contains additional color detail giving you full RGB color bandwidth with 10 bit video precision.
True Professional Quality Audio
DeckLink HD Extreme 3D features unbalanced AES digital audio in and out as well as XLR balanced pro audio for incredible quality while maintaining sample accurate AV sync. DeckLink HD Extreme 3D includes a sample rate converter on the AES/EBU input, so you can connect to any digital audio device.
Compatible with Popular Software
DeckLink HD Extreme 3D works in Windows, Mac and Linux systems. Use your favorite video software such as Avid Media Composer 6™, Apple Final Cut Pro™, Adobe Premiere Pro™, Sony Vegas™, Adobe After Effects™, The Foundry Nuke™, Adobe Photoshop™ and more.
Connect to Anything
DeckLink HD Extreme 3D is the only solution that connects to SDI, HDMI, component analog, NTSC/PAL and S-Video equipment for capture and playback, while instantly switching between SD, HD and 2K. DeckLink HD Extreme 3D includes 2 channels of AES/EBU audio in and out with a sample rate converter on the AES/EBU input as well as 2 channels of XLR professional analog audio in and out. Work with the widest range of equipment, such as HDCAM, HD-D5, HDCAM SR, Betacam SP, Digital Betacam, HD receivers, HDV cameras, televisions, mixers and more. DeckLink HD Extreme 3D now supports Dual Link SDI and 3 Gb/s SDI, so you can capture and play back 4:4:4 video when used with decks such as Sony HDCAM SR™, or view real time playback of 2K film resolution at 24 fps with Blackmagic Design\'s HDLink Pro.
New 3 Gb/s SDI Connections
The new DeckLink HD Extreme 3D is the first capture card to include high speed 3 Gb/s SDI connections. 3 Gb/s SDI is the latest version of the SDI video standard that allows 4:4:4 RGB and 2K film connection and even 3D with a single BNC type connection. 3 Gb/s SDI runs twice the data rate of normal HD-SDI video, however it can instantly switch to traditional standard definition and high definition SDI. 3 Gb/s SDI allows 4:4:4 RGB workflow or full resolution 2K feature film quality 24 fps 2048 x 1556 capture and playback. 2K via SDI allows a revolutionary change to feature film workflow as now you can connect film resolution video around your facility using the same familiar workflow as a "normal" video job! Only DeckLink HD Extreme 3D gives you film editing features built in for no extra cost!
New HDMI 1.4 Support
DeckLink HD Extreme 3D features the latest generation of HDMI 1.4 built in for capture and playback! HDMI 1.4 lets you keep your 3D video in full resolution because it transfers frames using the frame packing method. Frame packing keeps the video frames separate for the left and right eyes using a single HDMI connection. HDMI 1.4 is a massive improvement over the previous generation HDMI for 3D. However DeckLink HD Extreme 3D also keeps compatibility with these previous generation HDMI devices by supporting side by side, line by line and top and bottom method for transferring 3D video which are half resolution 3D modes. DeckLink HD Extreme 3D is intelligent, and adapts when you plug into older HDMI devices or the latest HDMI 1.4 devices! Now you can capture 3D from devices such as cameras and gaming consoles into two separate full resolution video files, one for each eye. Imagine the quality of the latest generation HDMI 1.4 televisions for monitoring dual stream full resolution 3D! That\'s the highest quality 3D possible!
More HD Real Time Effects
DeckLink HD Extreme 3D\'s super fast 10 Gb/s connection plugs directly into your editing software\'s real time effects processing. Unlike FireWire products, you get all CPU time for real time effects, as only PCI Express lets you upgrade to HD without limiting real time effects. The higher speed of PCI Express also easily handles advanced formats such as full resolution 2K digital film. Only high speed PCI Express ensures that when you upgrade your studio to high definition, you\'ll get full real time effects.
Includes Loads of Free Software Utilities
Photoshop™ plug-ins are included for capture and output of still frames. Blackmagic Media Express™ lets you control a deck remotely via RS-422 for capture and playback of clips with timecode accuracy and Blackmagic Disk Speed Test™ checks your disk array in frames per second.
