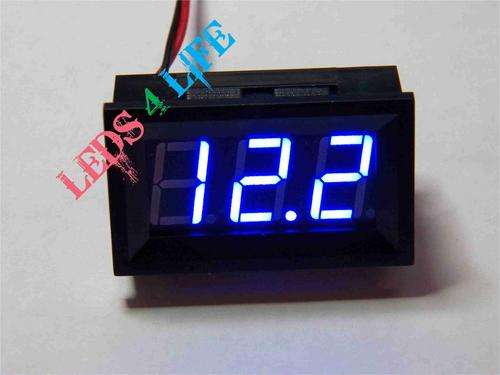

Blue display 2 Wire DC10-90V digital display LED Panel Voltage Meter Voltmeter
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Â
Blue display 2 Wire DC10-90V digital display LED Panel Voltage Meter Voltmeter
Â
Description
1. This meter Measuring Range is DC10-90V,be suitable for 24V,36V,48V,60V,72V
Electric motorcycle,battery car and other electric car.
2. 2 wires input, be easy to connect with elecric motorcycle.
3. Has reversed connection protection, reversed connection will not burn the meter.
4. Maximum Input is DC90V,more will burn out the meter.
5. Size: 4.8 X 2.9 X 2.2 cm
6. opening size: 4.6 X 2.7 cm
7. lead wire approx length: 15cm
8. net weight: 24g
9. Measuring Range: DC10-90V
10. Minimum input: DC10V
11. Display: three 0.56â³LED digital tube
12. Display colors: blue
13. Refresh speed: about 500ms/each time
14. Allowable error: 1% (+ /-1)
15. Power supply: no need external power supply
16. Current consumption: 5-15mA
17. Working temperature: -10âÃÂà~ 65 âÃÂÃÂ
PRICE ABOVE ARE FOR 1 ITEM
