>>Please click here to download the LCR-P1 product manual<<
Features:
Intelligent Anti-Burning Design: Uncharged capacitors automatically discharge upon insertion, offering a protection mechanism that prevents device damage, ensuring safety and reliability during testing.
Alternate Measuring Modes: Comes with replaceable test boards, providing diverse testing options and simplifying the process to meet various electronic component measurement needs.

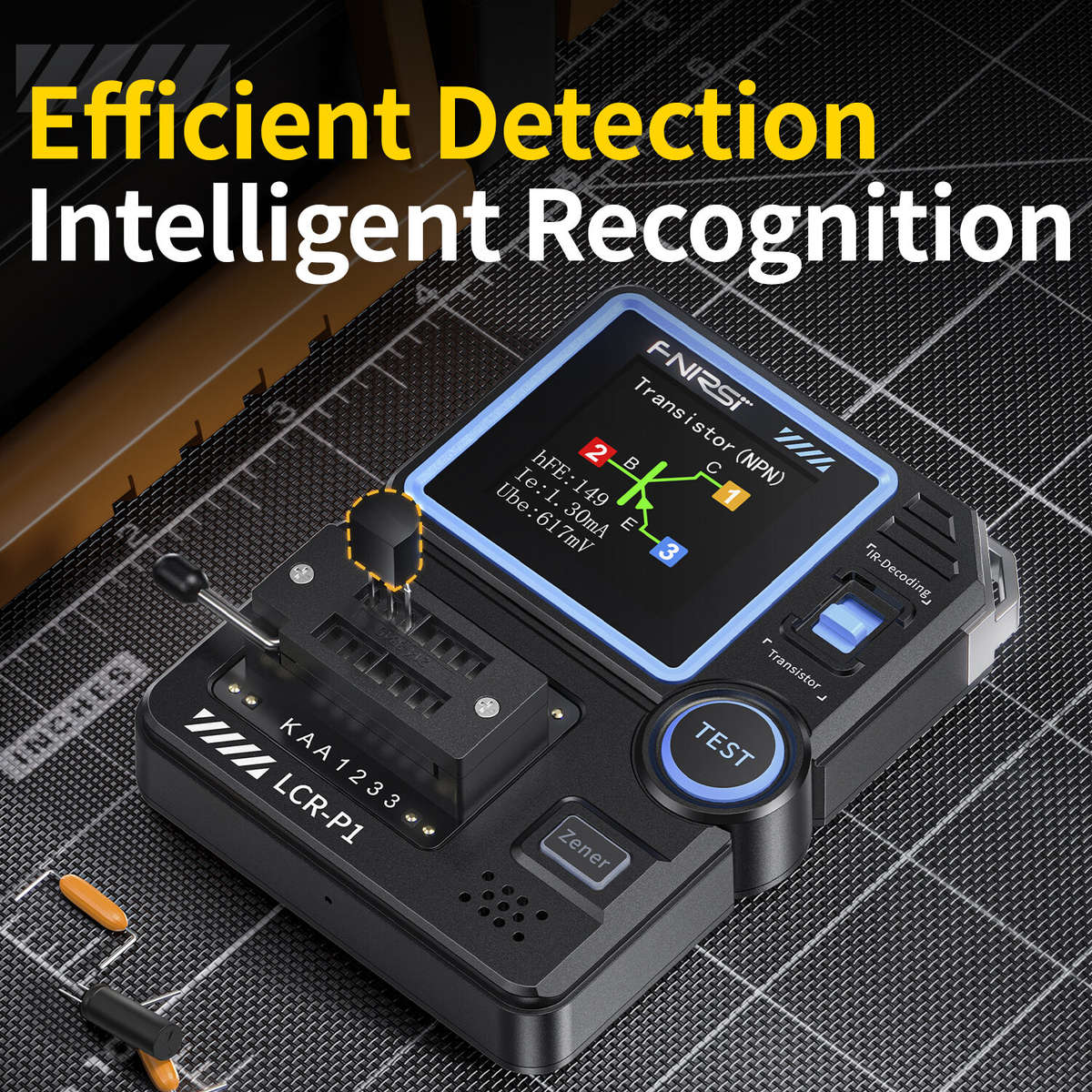

Intelligent Component Recognition: Simply plug and clamp components, and the device will quickly identify parameters with one button, saving time and effort in component analysis.
Zener Diode Independent Measurement: Features an independent measurement channel for Zener diodes, measuring 0.01-32V with a pre-measurement power supply for precise and accurate results.
Specifications:

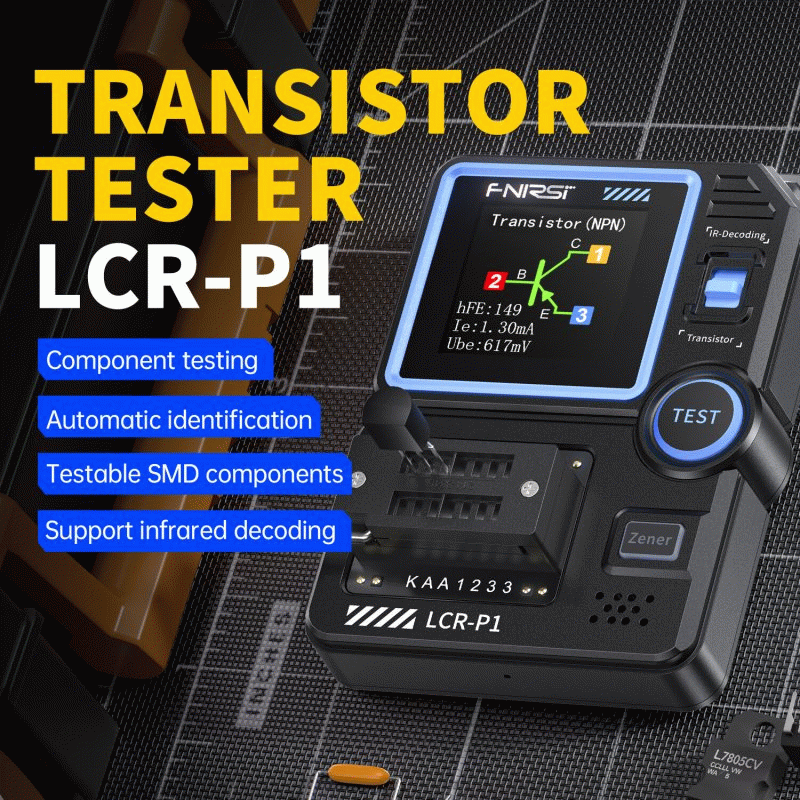

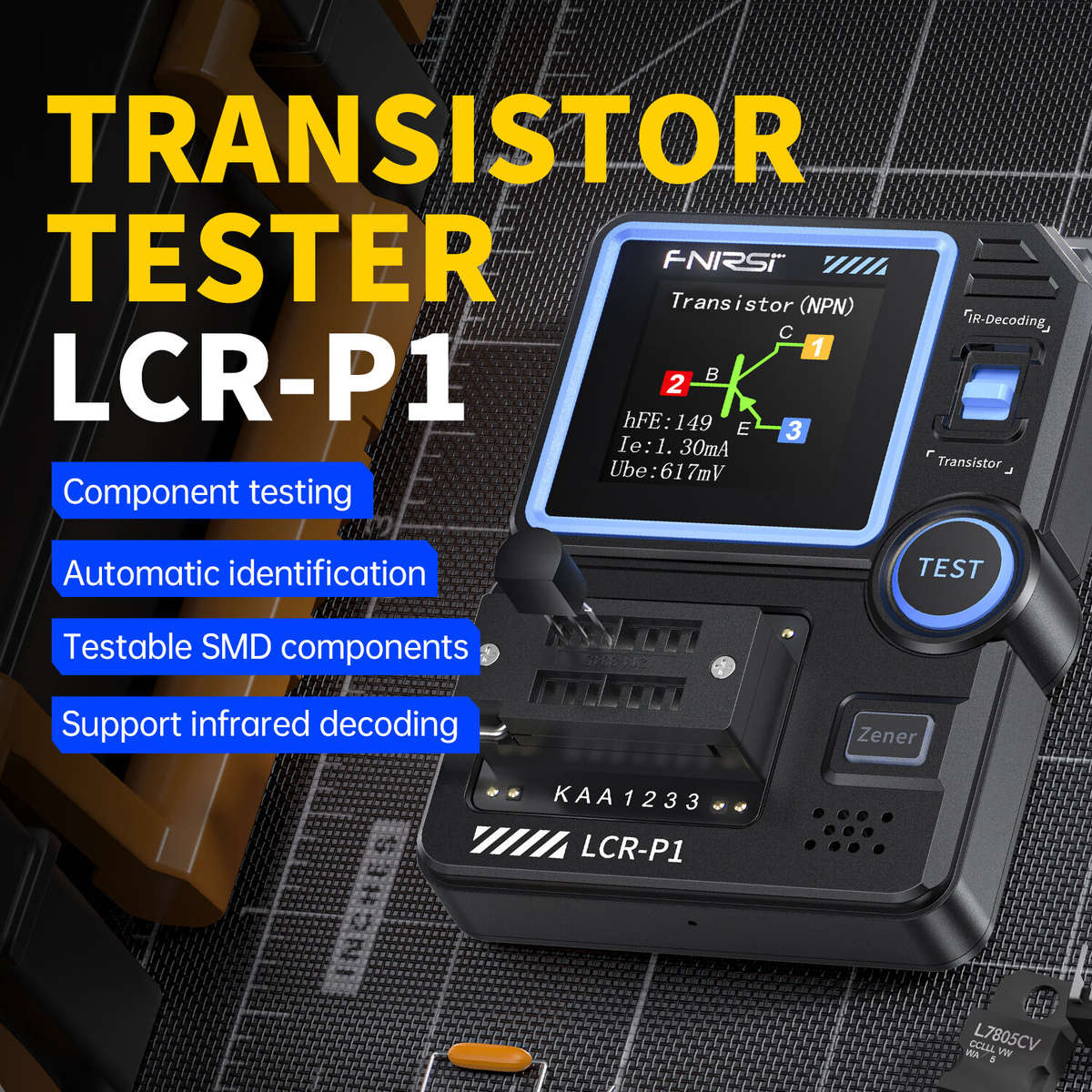

Brand: FNIRSI
Product Model: LCR-P1
Screen Display: 1.44 Inch Color Screen
Charging Specification: USB Type-C, 5V/1A
Power Supply: 300mAh lithium battery
Operating Temperature: 0~40
Resistance Measuring Range: 0.01-50M
Capacitance Measuring Range: 25pF~100mF
Inductance Measuring Range: 10uH-1000uH
Transistor Beta Range: 10600
Diode Forward Voltage Drop: 4.5V
Voltage Regulator Diode Range: 0.01-4.5V, 0.01-32V
Field-Effect Transistor Types: JFET, IGBT, MOSFET
Thyristor Turn-on Voltage: 5V, Gate Trigger Current 6mA
Battery Voltage Measuring Range: 0.1-4.5V
IR Remote Decoding: NEC protocol infrared code
Battery Capacity: 300mAh lithium battery
Anti-Burn Protection: Yes
Firmware Upgrade: Supported
Package Included:
1 x LCR-P1 Host
1 x Replaceable Test Board
1 x USB Data Cable
1 x User Manual
1 x Packing Box
3 x Test Hooks
