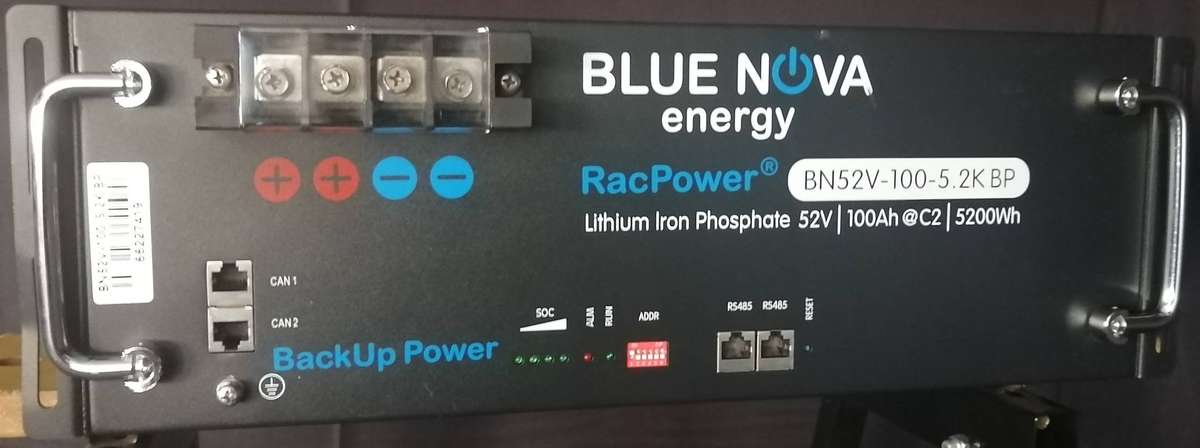

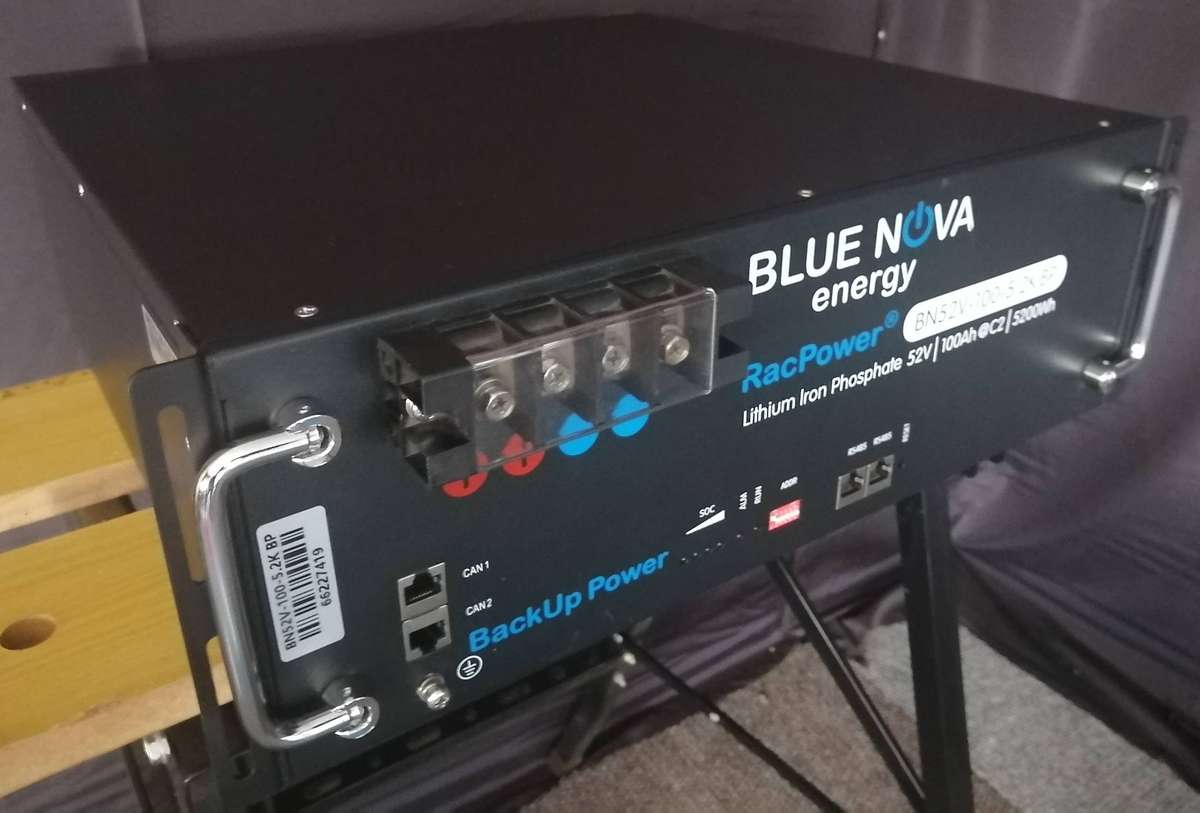

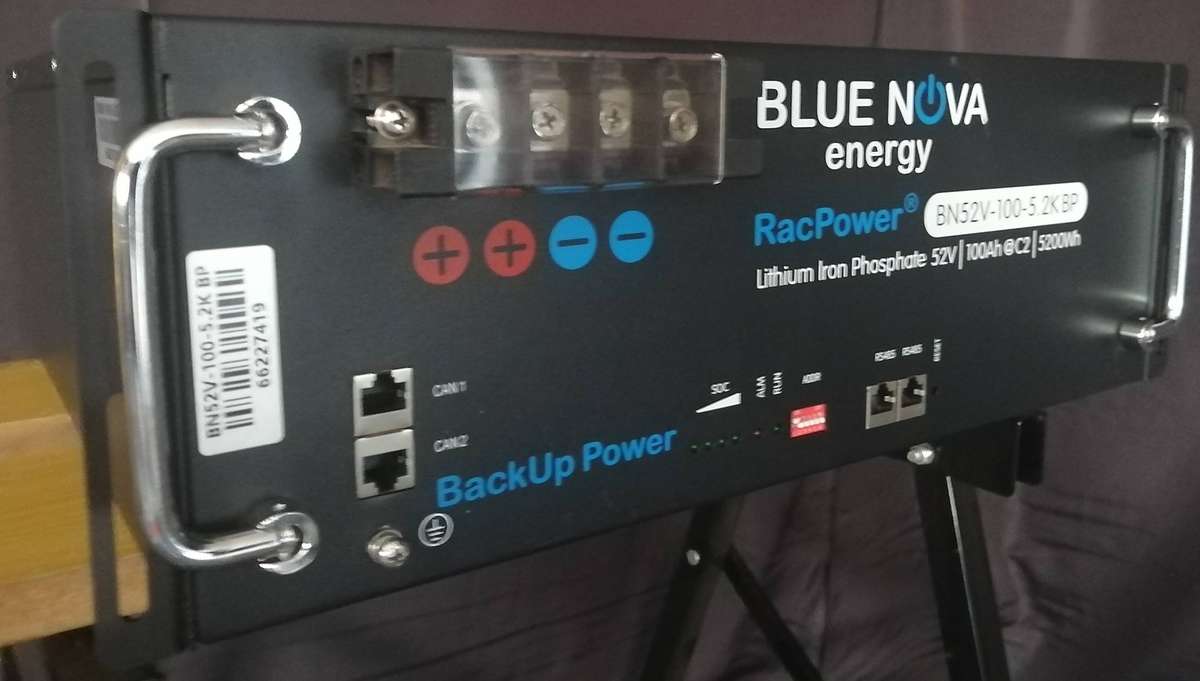

Blue Nova Energy RacPower Lithium Iron Phosphate 52V-100Ah@C2-5200Wh - BN52-100-5.2K BP

Blue Nova Energy RacPower Lithium Iron Phosphate 52V-100Ah@C2-5200Wh - BN52-100-5.2K BP

GENERAL SPECIFICATIONS

Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

Nominal Voltage: 51.2V Ah

Rating: 100Ah @C2, 25°C

Installed Capacity @Vnom 5 120Wh

Internal Resistance 50m @1kHz AC

Serial Communication CAN & RS485

VOLTAGE

Operating Voltage Range 40.0V ~ 57.6V

Bulk Voltage (max.) 57.6V ± 0.3V

Float Voltage (recommended) 54.4V ~ 55.2 V

Low-Voltage (min.) 40.0V

CURRENT

Charge Current (max.) 50A continuous | 30A recommended

Discharge Current (max.) 100A for 30 mins. | 70A recommended

Self-discharge Rate Residual capacity: 3% /month | 15% /year Recover capacity: 1.5% /month | 8% /year

ENVIRONMENTAL REQUIREMENTS

Operating Temperature Range @Charge: 0°C ~ +50°C @Discharge: 10°C ~ +50°C

Recommended Operating Environment Temp. range: +15 ~ +35°C | Humidity: 5 ~ 75%RH

Storage Environment (stored 1 month) Temp. range: 20 ~ +60°C | Humidity: 5 ~ 75%RH

Storage Environment (stored 3 months) Temp. range: +10 ~ +45°C | Humidity: 5 ~ 75%RH

PHYSICAL ATTRIBUTES

Dimensions Main enclosure 446mm x 435mm x 153mm (W x D x H) *

Dimensions Front plate 481mm x 153mm (W x H)
