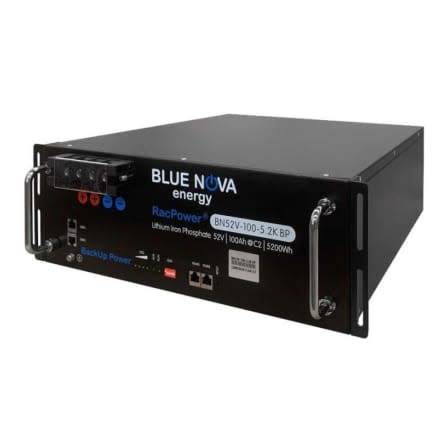

The RacPower batteries are 48V system-compatible & have been designed for installation in server cabinets. Developed specifically to support business and telecommunications industries, a single 5.2k Daily Use unit can supply a sustained 2000W for a typical 2.5 hour load-shedding cycle.
Up to 8 x BN52V-100-5.2k BP units (31kWh) & up to 9 x BN52V-100-5.2k DU units (46kWh) can be connected in parallel.
The BN52V-100-5.2k BP is perfectly suited for voltage-based installations, with optional CryptoLock functionality to ensure that battery theft and redeployment is a thing of the past.
| Colour: | Black |
| Material: | Metal |
| Battery Chemistry: | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage: | 51.2V |
| Ah Rating: | 100Ah @C3, 25C |
| Installed Capacity @ Vnom: | 5120Wh |
| Internal Resistance: | 50m @1kHz AC |
| Serial Communication: | CAN and RS485 |
| Operating Voltage Range: | 40.0V ~ 57.6V |
| Bulk Voltage: | 57.6V 0.3V (max) |
| Float Voltage (Recommended): | 54.0V ~ 55.2V |
| Low Voltage (min): | 40.0V |
| Charge Current: | 50A continuous | 30A recommended |
| Discharge Current: | 100A for 30 mins (max) | 70A recommended |
| Self-discharge Rate: | Residual capacity: 3% /month | 15% /yearRecover capacity: 1.5% /month | 8% /year |
| Operating Temperature Range: | @Charge: 0C ~ +50C @Discharge: 10C ~ +50C |
| Recommended Operating Environment: | Temp. range: +15 ~ +35C | Humidity: 5 ~ 75%RH |
| Storage Environment (Stored 1 Month): | Temp. range: 20 ~ +60C | Humidity: 5 ~ 75%RH |
| Storage Environment (Stored 3 Months): | Temp. range: +10 ~ +45C | Humidity: 5 ~ 75%RH |
| Front Plate Height: | 481mm |
| Front Plate Length: | 153mm |
| Height: | 153mm |
| Width: | 446mm |
| Depth: | 435mm |
| Weight: | 46kg |
| Technical Document: | Download |
