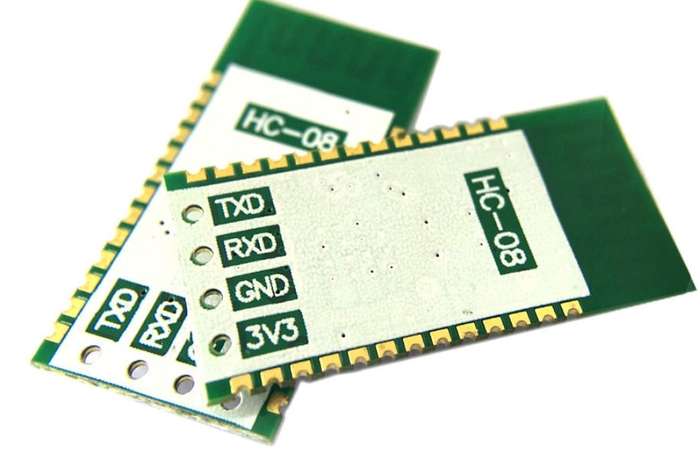

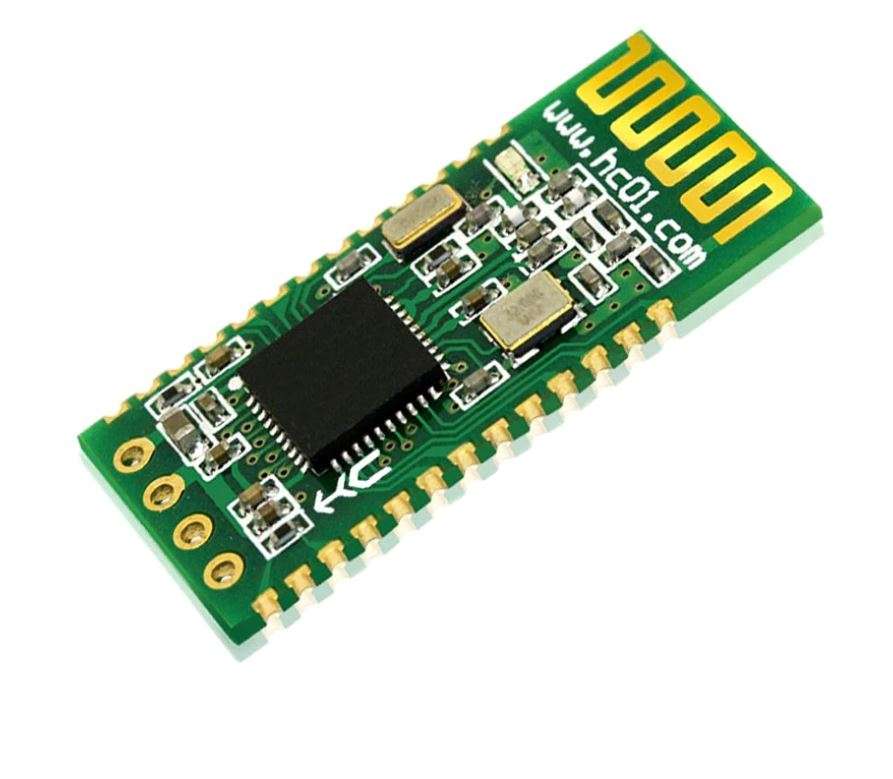

Bluetooth (HC-08) Serial module

Bluetooth (HC-08) Serial module

Product Description

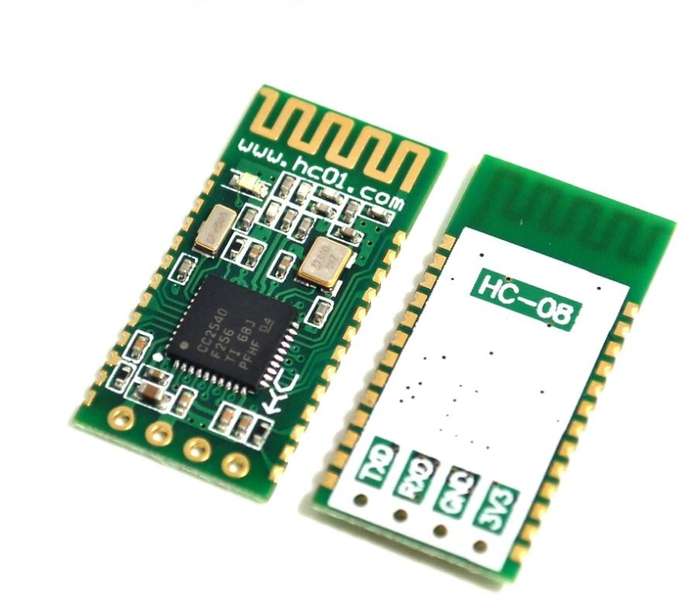

The Bluetooth (HC-08) Serial module 4.0 low energy module, it can easily connect to iOS 5 and Android 4.3 or above by using a serial terminal app. You can use the Bluetooth communication up to 87 yards (80 meters) with this Bluetooth BLE module. It also runs on a 2.4GHz frequency. The chipset is CC2540 with 256K Byte space. You can change the role and serial baud rate and it supports AT commands for configuration.

These modules can behave as a slave or master, which are used to listen to connection requests and others to generate connection requests. If any device is connected, the module transmits to it all the data it receives from the Arduino and vice versa. The HC-08 module allows to transmit and receive data through the serial port of the micro controller wirelessly. It belongs version 4.0 of Bluetooth devices, which has the same characteristics as its predecessors, but with the difference that this device is low energy consumption. It also adds the feature of being compatible with Apple brand products. It has a working frequency of 2.4GHz ISM, GFSK modulation, maximum transmission power of 4dBm, reception sensitivity of -93dBm and 80 meters of communication in environments without obstacles.

Product Specs:

• Protocol: BLE 4.0
• Frequency: 2.4GHz ISM
• Modulation System: GFSK
• Max transmitting power: max. 4dBm

• Serial Baud Rate: 1200 to 115200 bps
• Reference Distance: 80 meters
• Speed: 1Mbps (Max)
• Power supply: 2.0 3.6 V
• Sleep Mode Current: 0.4uA (MODE 2)
• Communication Port: UART 3.3V TTL
• Working temperature: -20 ~ +75 Centigrade
• Dimension: 26.9mm x 13mm x 2.2 mm
• Half-cut hole pitch: 1.5mm
• Weight: 0.18oz (5g)
