Bluetooth Module for Ramps 1.4 & MKS

Bluetooth Module for Ramps 1.4 & MKS

New 1 available
Only 1 left – grab it before it’s gone!
R205.32
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 1 business day. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
3DP-005129
Bob Shop ID
633481357

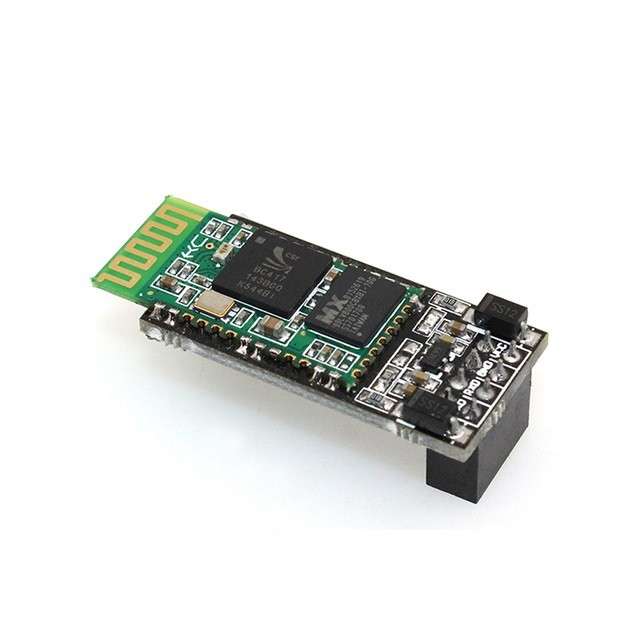

The HC-06 is a very common and useful Bluetooth Module that forms part of the HC Bluetooth Series.
Its most common use is to be a transparent serial port connection computers and devices. It can be simply
used as a drop in place device to establish links between MCU's an GPS controllers or Phones to Arduno boards,
It can even be used for allowing your Marlin Compatible 3D Printer to communicate via Bluetooth instead of
pesky USB Cables.

Specifications:

Bluetooth protocol: Bluetooth Specification v2.0+EDR
Frequency: 2.4GHz ISM band
Modulation: GFSK(Gaussian Frequency Shift Keying)
Emission power: =4dBm, Class 2
Sensitivity: =-84dBm at 0.1% BER
Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps
Security: Authentication and encryption
Power supply: +3.3VDC 50mA
Working temperature: -20 ~ +75 Celsius
Dimension: 26.9mm x 13mm x 2.2 mm
Default Baudrate: 9600

As far as we are aware - this module is only compatible with Android devices if you are planning to use it as a transparent serial link.
If you are looking to do the same with an iPhone, consider taking a look at the HC-10

Add to cart
