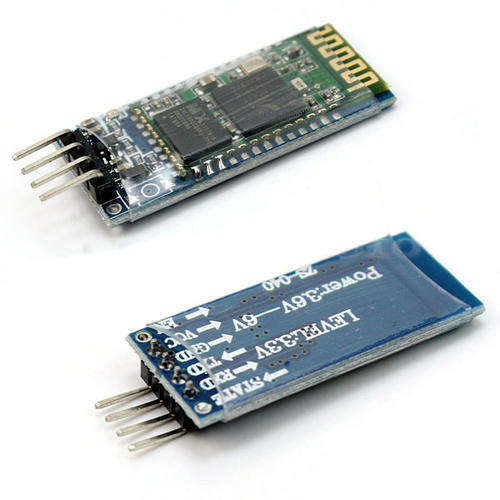

Bluetooth Module HC-06 (for Arduino, PIC, ARM, DSP, AVR, Etc.)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
The HC-06 Bluetooth module allows your device to send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer. Just Power, Ground, RX, TX must be connected and you can send data to/from Arduino development boards.
The onboard LED displays the connection status- flashing means no active connection and normally on means it's connected successfully. The LED will continue to flash after pairing until there is an active connection to another device.
Features:
- HC-06 only supports slave mode
- Works with any USB Bluetooth adapters
- Default baud rate: 9600, 8, 1, n.
- Default passcode: 1234
- Built-in antenna
Specifications:
- Bluetooth version: V2.0 + EDR
- Operating voltage: 3.6 - 6v
- Interface level: 3.3v
- Default baud rate: 9600, 8, 1, n
- Signal coverage: 30ft/10m
