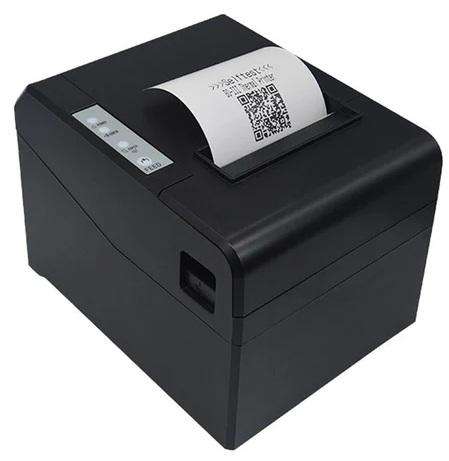

BLUETOOTH THERMAL RECEIPT PRINTER - 8330-A
USB + Bluetooth
Basic Characteristics
Product Name: Receipt Printer
Item Number: POS - 8330-A
It can be used for all kinds of Commercial in Retail POS Systems, Restaurant System
Industrial Control Systems in areas such as.
Light Weight and Portable
Beautiful Shape
Low Cost and High-Quality Thermal Printing
Cash Drawer Drive Supported

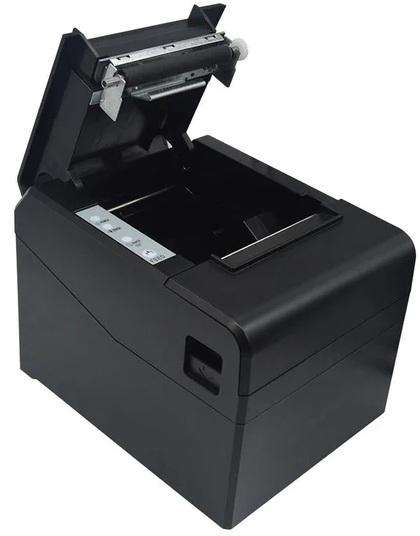

Easy Paper-Roll Installation, Easy Maintenance and Rational Structure
Low-Power Waste, Low-Run Cost (without the Ribbons, Ink Cartridges)
Built-In Data Buffers (be capable of receiving Print Data while Printing)
Characters can be amplified, Printed in bold optionally, and line spacing Printing can be adjusted
Support different density Bitmap Graphics Printing
Support NV Image Downloading and Printing
Support Raster Bitmap Printing
High-Speed Printing using Embedded soft fonts for all Interfaces
Compatible with ESC/POS Print Instruction Set, optional columns and font (adjusted by DIP Switch)
Advantage Characteristics
Audible and Visual Alarm External Device available (Best Application for kitchen Menu Printing)
Front-Feeding Structure (Water- & Oil-Resistant Design)
Parameter Detail
Printing Method: Thermal Line Printing
Character Size: 512 Dots / Line
Font A: 12 x 24 Dots, 1.5(W) x 3.0(H)mm
Font B: 9 x 17 Dots, 1.1(W) x 2.1(H)mm
Simplified / Traditional: 24 x 24 Dots,3.0(W) x 3.0(H)mm
Print Parameters: Support to Download the Logo Trademark
ANK: ANK Characters
Extended Character Table
OEM437 / Katakana / OEM850 / OEM860 / OEM863 / OEM865 / West Europe
Greek / Hebrew East Europe / Iran / WPC1252 / OEM866 / OEM852 / OEM858
Iran II / Latvian / Arabic / PT1511251 / OEM747 / WPC1257 / Vietnam / OEM864
Hebrew / WPC1255 / Thai
Barcode Types: UPC-A / UPC-E / JAN13(EAN13 / JAN8 (EAN8) CODABAR ITF / CODE39 / CODE93 / CODE128
Print Speed: 300mm/second
Interface: Parallel / Serial Port / USB Port/ Ethernet
Emulation: ESC / POS command
Print Width: 79.5 plus or minus 0.5mm (Print Width 72mm)
Print Diameter: 83mm
Print Thickness: 0.06-0.08mm
Power: DC24V / 2.5A
Cutter: Full or Partial cut
Reliability Print: 100km
Weight: 2.2kg
Temperature: 0-45
Contrast Humidity: 10-80%
Drivers: Win9X / Win2000 // Win2003 / Win Vista / Win 7 / Window XP /Win 8 / Linux
Compatible with ESPON, SAMSUNG
External Dimension (L x W x H): 190 x 145 x 145mm
