Features:
1. It applies mobile products to supporting the use, and suitable for outdoor working environments.
2. It can print 58mm width thermal paper.
3. High-speed, clear printing.
4. Super power lithium electricity, standby time can reach 5-6 days.
5. Auto sleep, auto wake, save electricity.
6. Small size, light weight, reliable performance, simple to connect, easy to use.
7. Low operating costs (no ribbons, ink cartridges)
Applications:
The mobile police system
The tobacco distribution system
The utility meter reading system
The mobile office / mobile logistics systems
The portable instrumentation
The testing equipment, ancillary equipment.
Specifications:| Printing Method | Thermal line printing |
| Print speed | 90mm/sec |
| Reliability TPH Life | 100km |
| Resolution | 203DPI (8dot/mm) |
| Printing Width | 48mm (384dot) |
| Paper Width | 58±01mm |
| Roll Diameter | φ≤40mm |
| Paper Type | Thermal Paper |
| Power supply (optional) | rechargeable lithium batteries |
| Battery | Lithium: 7.4VDC/1500mA |
| Charging mode | DC 9V/1.5A |
| Battery | Support the battery display function |
| Print parameters | Support to download the Logo trademark |
| Character Size | 384 dots/line |
| FontA | 12*24dots,1.5(W)*3.0(H)mm |
| FontB | 9*17dots, 1.1(W)*2.1(H)mm |
| Simplified/Traditional | 24*24dots,3.0(W)*3.0(H)mm |
| Printing Chinese character | Chinese: simplified Chinese 24x24 point. support 18030 font library, support Taiwan and HK traditional(complex font) |
| ANK | ANK characters |
| Extended character table | OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/Greek/Hebrew/EastEurope/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai |
| Emulation | ESC/POS/STAR command |
| Interface | Standard USB, Bluetooth 2.0/SPP agreement or infrared/IRCOMM agreement (optional). |
| Working Temperature | -10~50 |
| Humidity | 10~90% |
| Dimensions | 103.5*78*45.5mm |
| Package size | 180x115x60mm |

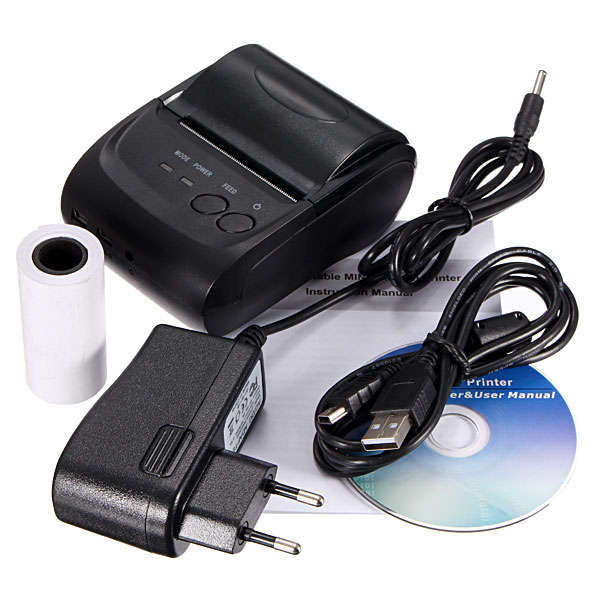

Package Included:
1 X Bluetooth Thermal Receipt Printer
1 X EU Adapter
1 X USB cable
1 X Thermal Paper Roll
1 X User Manual
