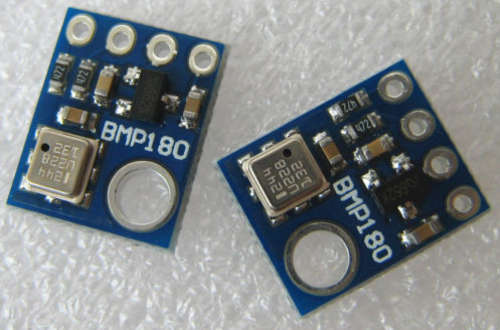

BMP180 DIGITAL BAROMETRIC PRESSURE SENSOR
BOARD MODULE FOR ARDUINO
Product information
This digital barometer has some interesting applications by measuring the absolute pressure of the environment and converting this into altitude. You will have a reliable sensor for determining the height of your robot, plane or projectile. This sensor is capable of achieving an accuracy of 1m, with noise of only 17cm in ultra-high resolution. The device will operate at only 0.3uA meaning low current draw for battery powered applications.
Specifications
1.8V to 3.6V Supply Voltage
Low power consumption - 0.5uA at 1Hz
I2C interface
Max I2C Speed: 3.5 MHz
Very low noise - up to 0.02hPa (17cm)
Fully calibrated
Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
Weight: 1.18g
Size: 21mm x 18mm
Package includes
1 x BMP180 Digital Barometric Pressure Sensor Board Module
