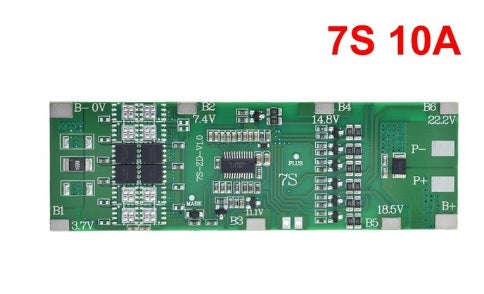

BMS 7S 24V 10A Li-ion 18650 Battery Charge Board

BMS 7S 24V 10A Li-ion 18650 Battery Charge Board with Balance Function and Short Circuit (10005861)

The BMS 7S 24V 10A Li-ion 18650 Battery Charge Board is a reliable and efficient charging solution for 7-series lithium-ion battery packs. It is designed to provide a safe and stable charging current of 10A, ensuring the optimal performance and longevity of your batteries. With its compact size and easy installation, this charge board is suitable for a wide range of applications, including electric vehicles, solar power systems, and portable electronic devices. The built-in protection features, such as overcharge, over-discharge, and short circuit protection, guarantee the safety of your batteries during the charging process. Upgrade your battery charging experience with the BMS 7S 24V 10A Li-ion 18650 Battery Charge Board.



Product features.

1. Exquisite technology, stable heat dissipation

2. Over-voltage protection, over-discharge protection

3. Integrated solution, charging protection

4. Short-circuit protection, over-current protection



Product parameters.

Battery type: Ternary / seven series / 24V

Wiring mode: same port

Single battery over discharge voltage: 2.7V 0.08V

Continuous working current: 30A/20A/10A optional

Instantaneous protection current: 70A/50A/25A (optional)

Overcurrent recovery condition: charge recovery or load disconnection

Short-circuit recovery condition: charge recovery or load disconnection

Single battery overcharge voltage: 4.25V 0.025V

Continuous charging current: 30A/20A/10A selectable

Charge equalization voltage: 4.15V±0.025V

Charging equalization current: 40mA

Charger voltage: 30V (recommended)

Charge over-temperature: 50

Discharge overtemperature: 70

Working power consumption: 30uA

Internal resistance

Internal resistance of main circuit conduction: 50m

Temperature range: -40 to +80

Disconnection protection: Yes

Discharge line: Yes

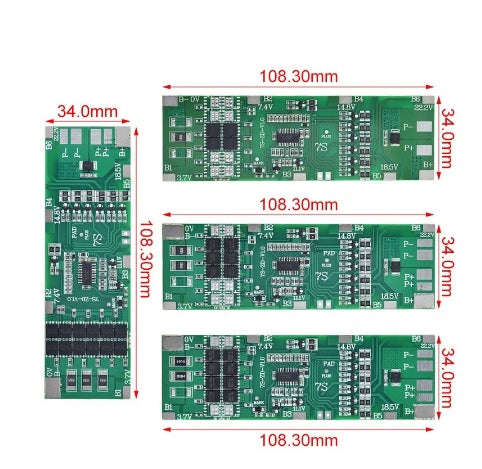

Product size 108*34*2.8MM (ultra-thin)



Package List:

Lithium battery protection board x 1
