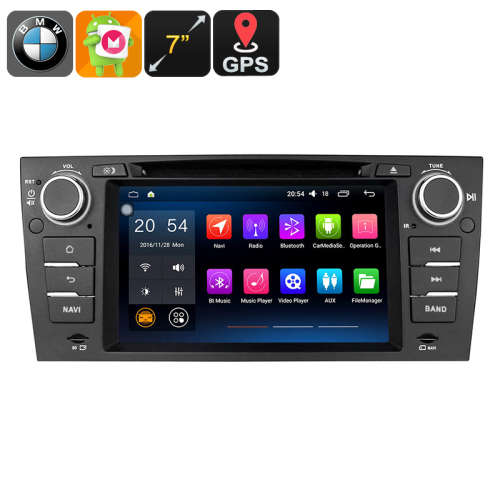

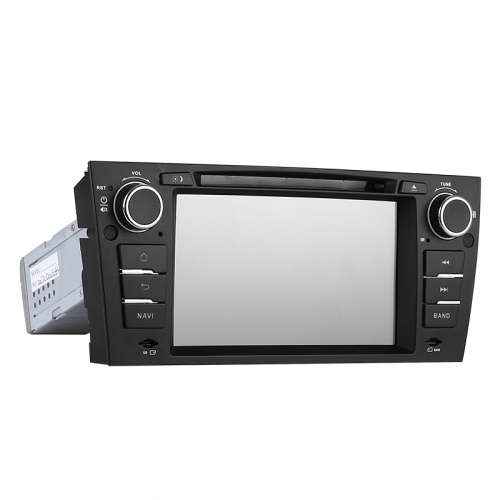

BMW 3 Series Android Car Stereo - GPS, Hands Free, Wi-Fi, Android 6.0, 4G Support, CAN BUS, 7 Inch Display

BMW 3 Series Android Car Stereo with a large touchscreen, wi-fi, and 4G dongle support will put your driving experience into pole position. for BMW 3 series E90-E93: 2005-2012

Manufacturer Specifications

General

• DIN Size: 1
• Bluetooth
• Wi-Fi
• GPS
• WCDMA (3G): Via USB 3G Dongle (not included)
• Google Play
• FM Radio
• CAN BUS
• Microphone
• Works with following models: BMW 3 series E90-E93: 2005-2012

Main System-Android

• CPU: Intel SoFIA 3GR Quad Cores 1.2GHz
• GPU: Mali-450 MP4
• RAM: 2GB DDR3
• Internal Memory: 32GB
• OS: Android 6.0.1

GPS

• Receiver Module: SIRF III
• Frequency: 1.2 GHz
• C/A Code: 1.023 MHz
• Signal Channels: 20
• Tracking Sensitivity: 160dBm
• Position Sensitivity: 3.0m CEP
• Speed Rate: 0.1m/s
• Data Update Rate: 1Hz
• Recapture Time: Average 0.1s
• Hot Start Up Time: Average 2s
• Warm Start Up Time: Average 32s
• Cold Start Up Time: Average 32s
• Maximum Position Altitude: 18000M
• Maximum Speed Rate: 515m/s
• Built-in Antenna Type: External Power Source Porcelain Antenna
• Built-in Antenna Voltage: 3.3V +/- 5%
• Built-in Antenna Current: 15mA
• Built-in Antenna Gain: 27dB
• Interface: Touch screen
• GUI Interface: 3D Type
• Voice: YES
• Maps: Android App

Internet information

• Wi-Fi: 802.11 b/g/n (built in)
• 4G: Supports USB 4G Dongle (Dongle Not Included)
• The working of 4G network is that 4G device must be USB interface, support network share, insert USB interface in machine, open WiFi function of machine, receive 4G or device network signal connection and use

Display

• Screen: 7 Inch TFT LCD
• Resolution: 1024 x 600
• Touch Screen: Support Capacitive
• Multi-Touch: Support 5 points
• Video Systems: PAL, NTSC, SECAM, AUTO
• Choose your own background pic: YES
• Tilt angle: 0-90 degrees (button activated motorized tilt)

Audio Information

• Max Audio Output: 45W x 4
• Signal-to-noise ratio (SNR): >90dB User adjustable
• EQ: Treble/Middle/Bass Three Channel Output
• Sound Equlizer: FLAT, VOICE, CUSTOM, ROCK, JAZZ, CLASSIC

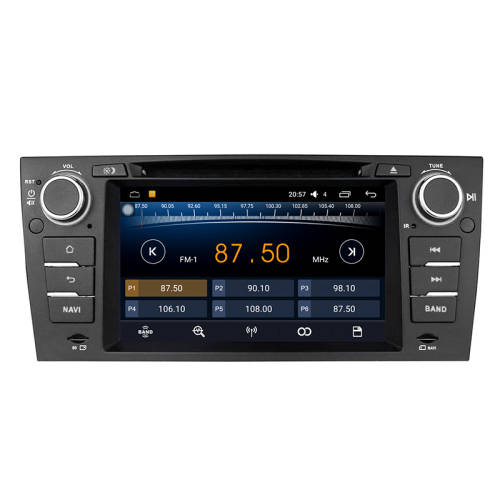

AM/FM Radio Tuner Information

• AM Frequency Range: 522 to 1620KHz (Worldwide)
• FM Tuning Range: 87.5 to 108.0MHz (Worldwide)
• RDS System
• Radio Regions: China, Europe, Orit, Russia, America 1, America 2, Japan, Australia

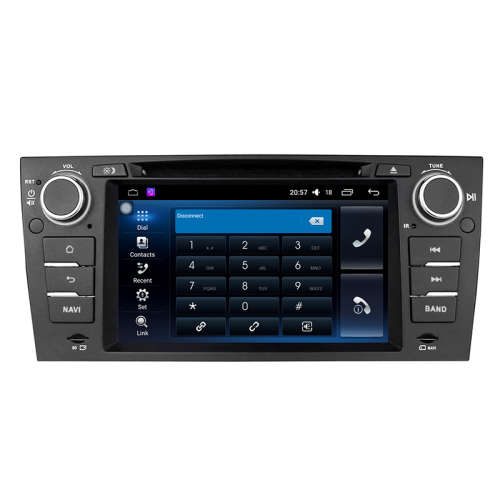

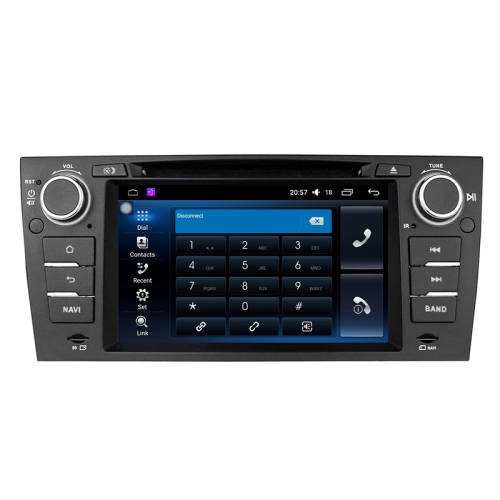

Bluetooth

• Pair With Mobile Phone - Then Use Touch Screen Interface
• Dial, Answer, Stop Call, Music, Phonebook, Call records
• Volume Control
• Touch Screen Keypad

Ports

• GPS SD card Slot: Up to 32GB
• Micro SD card Slot: Up to 32GB
• 2xUSB port
• External MIC port
• GPS antenna input
• Radio-ANT
• Video in
• CAM IN
• SUB
• L IN
• R IN
• RR OUT
• RL OUT
• FR OUT
• FL OUT
• ANT-CONT
• BACK
• BRAKE
• KEY2
• KEY1
• ILLUMI
• ACC
• GND
• BATT+
• PWR CCD 12V
• AUX IN L
• AUX IN R
• Speaker RR out + and –
• Speaker RL out + and –
• Speaker FR out + and –
• Speaker FL out + and –

Media Formats

• Video: MPEG-1, 2, 4, H264, H263, VC1, RV, RMVB, DIVX, Sorenson Spark, Spark, VP8, AVS Stream
• Audio: MP3, WMA, AAC, RM, FLAC
• Graphic: JPG, BMP, JEPG, GIF, PNG
• E-Book: PDF

Dimensions

• Main Product Dimensions: 265x120x200 mm (L x W x D)
• Main Product Weight: 1685g

Product Notes

• The Android OS version on this device cannot be upgraded or flashed and any attempts to modify the default OS will void the warranty. As a wholesaler, we provide no software support, advice, or training regarding the Android operating system and software.
• This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. As the wholesaler, we provide the GPS-enabled hardware only, not the software. We provide no warranty or customer support regarding GPS software. We cannot provide downloads, links, advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.
• To ensure your safety, the driver shall not watch TV or video or operate the player while driving for it may distract the driver from driving.
• Works with below models: BMW 3 series E90-E93: 2005-2012

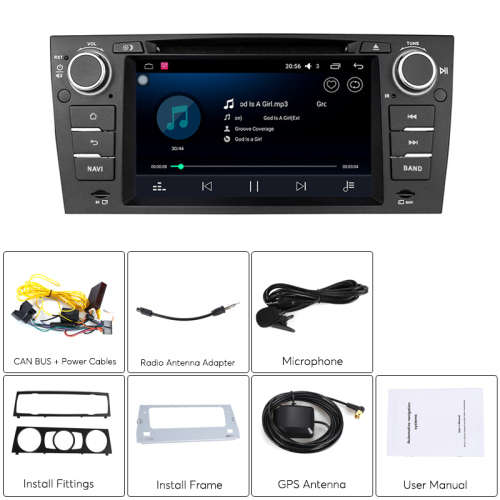

Package Contents

• Car Stereo
• CAN BUS +Power Cables
• GPS Antenna
• Microphone
• Install Frame
• Install Fittings
• Radio Antenna Adapter
• User Manual
