BMW 5 Car Media Player - 9 Inch Screen, 4+32GB, Octa Core, Can Bus, Android 6.0, 3G, 4G, Wi-Fi, Bluetooth

...

Manufacturer Specifications

General

• DIN Size: 1
• Bluetooth
• Wi-Fi
• WCDMA (3G): Via USB 3G Dongle
• Google Play
• CAN BUS
• Accelerometer sensor
• GPS
• FM/AM radio
• Works with below models:BMW 5 E39 Series: 1996 to 2001 (BMW Old 17-Pin connector)(BMW X5 / BMW M5), BMW 5 E39 Series: 2002 to 2003 (BMW new 40-Pin connector), BMW X5 E53: 2000 to 2001 (BMW Old 17-Pin connector), BMW X5 E53: 2002 to 2007 (BMW new 40-Pin connector), BMW M5: 1996 to 2003 (BMW new 40 or 17 Pin connector), Range Rover 2002 to 2004

Main System-Android

• CPU: Rockchip Px5 Octa-Core, 64-Bit Coretex A53 1.2 GHZ
• GPU: PowerVR G6110

• RAM: 4GB
• Internal Memory: 32GB
• OS: Android 6.0.1

GPS

• Receiver Module: SIRF III
• Frequency: 1.6 GHz
• C/A Code: 1.023 MHz
• Signal Channels: 20
• Tracking Sensitivity: 160dBm
• Position Sensitivity: 3.0m CEP
• Speed Rate: 0.1m/s
• Data Update Rate: 1Hz
• Recapture Time: Average 0.1s
• Hot Start Up Time: Average 2s
• Warm Start Up Time: Average 32s
• Cold Start Up Time: Average 32s
• Maximum Position Altitude: 18000M
• Maximum Speed Rate: 515m/s
• Built-in Antenna Type: External Power Source Porcelain Antenna
• Built-in Antenna Voltage: 3.3V +/- 5%
• Built-in Antenna Current: 15mA
• Built-in Antenna Gain: 27dB
• Interface: Touch screen
• GUI Interface: 3D Type
• Support Map: Android Map
• Voice: YES

Internet information

• Wi-Fi: 802.11 b/g/n
• 3G: Supports USB 3G Dongle (Dongle Not Included)

Display

• Screen: 9 Inch TFT LCD
• Resolution: 1024x600
• Capacitive Touch Screen
• Image Brightness: Adjustable

Audio Information

• Max Audio Output: 45W x 4 Speaker

AM/FM Radio Tuner Information

• Built-In Radio Tuner (30 Preset Stations)
• AM Frequency Range: 522 to 1620KHz (Worldwide), Increment: 0.05MHz
• FM Tuning Range: 87.5 to 108.0MHz (Worldwide), Increment: 9 KHz
• RDS System
• Radio Regions: China, Europe, Orit, Russia, America1, America2, Japan, Aust

Bluetooth

• Pair With Mobile Phone - Then Use Touch Screen Interface
• Dial, Answer, Stop Call
• Support Bluetooth Phone Book Function
• Music Playing, Volume Control
• Touch Screen Keypad
• Built-In Microphone

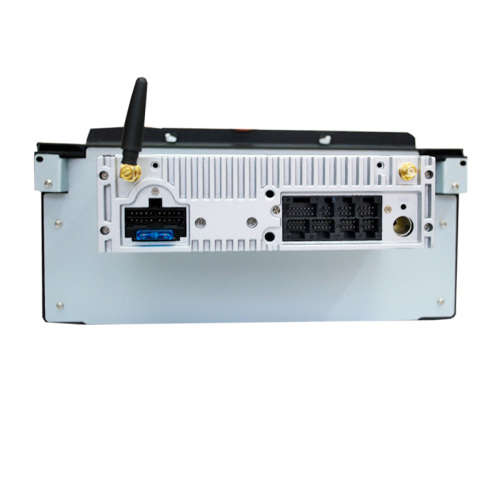

Ports

• RADIO-ANT
• GPS Antenna Input
• USB
• 3G Input
• External Microphone Input
• Micro SD card Slot: Up to 64GB
• 2x RCA Video Output
• CAM IN
• VIDEO IN
• Speaker RR out + and –
• Speaker RL out + and –
• Speaker FR out + and –
• Speaker FL out + and –
• SUB WOOFER
• AUX IN L
• AUX IN R

Media Formats

• Video: MPEG-1/2/, H26, H263, VC1, RV, RMVB, DivX, Sorenson SparK, Spark, VP8, AVS Stream
• Audio: MP3, WMA, AAC, RM, FLAC
• Graphic: JPG, BMP, JEPG, GIF, PNG
• E-Book: PDF

Product Notes

• The Android OS version on this device cannot be upgraded or flashed and any attempts to modify the default OS will void the warranty. As a wholesaler, we provide no software support, advice, or training regarding the Android operating system and software.
• This model is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. As the wholesaler, we provide the GPS-enabled hardware only, not the software. We provide no warranty or customer support regarding GPS software. We cannot provide downloads, links, advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.
• To ensure your safety, the driver shall not watch TV or video or operate the player while driving for it may distract the driver from driving.
• Tested with HUAWEI dongles: E1750, E261, E153
• Works with below models: Works with BMW 5 E39 Series: 1996 to 2001 (BMW Old 17-Pin connector)(BMW X5 / BMW M5), BMW 5 E39 Series: 2002 to 2003 (BMW new 40-Pin connector), BMW X5 E53: 2000 to 2001 (BMW Old 17-Pin connector), BMW X5 E53: 2002 to 2007 (BMW new 40-Pin connector), BMW M5: 1996 to 2003 (BMW new 40 or 17 Pin connector), Range Rover 2002 to 2004

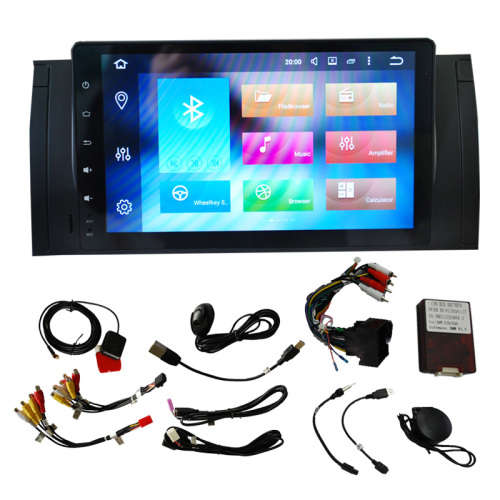

Package Contents

• Car Player
• Microphone
• GPS Antenna
• 2x UB Cable
• 2x AV Cable
• Radio Antenna
• Power Cable
