BMW Timing Tool Kit M52TW/M54/M56

BMW Timing Tool Kit M52TW/M54/M56

For locking, setting and adjustment of engine timing during engine/cylinder head overhaul procedures on BMW M52TW, M54, M56 engines .Camshaft timing tool for checking and adjusting both the vanos and locking camshafts on petrol engines.

This tool is used for the following vehicles BMW engines M52TW, M54, M56. M52TUB25 1997 to 2001 E46 323i/323Ci/323ti (M52T) 1998 to 2001 E39 523i (M52TU) 1998 to 2001 E36 Z3 (M52TU) M52TUB28 1997 to 2001 E46 328i/328Ci (M52TU) 1997 to 2001 E36 Z3 2.8 (M52B28/Z3) 1998 to 2001 E39 528i (M52TU) 1998 to 2001 E38 728i (M52TU) M54B22 2001 to 2003 E46 320i/320Ci 2001 to 2003 E39 520i 2001 to 2003 E85 Z4 2.2i 2001 to 2003 E60 E61 520i 2001 to 2003 E36 Z3 2.2i M54B25 2001 to 2002 E36/7 Z3 2.5i 2001 to 2005 E46 325i/325xi 2001 to 2006 E46 325Ci 2001 to 2004 E46 325ti 2001 to 2004 E39 525i 2003 to 2004 E60/E61 525i/525xi 2004 to 2006 E83 X3 2.5i 2004 to 2006 E85 Z4 2.5i M54B30 2001 to 2005 E46 330i/330xi 2001 to 2006 E46 330Ci 2001 to 2003 E39 530i 2001 to 2002 E36 Z3 3.0i 2003 to 2005 BMW E60 530i 2003 to 2006 E85 Z4 3.0i 2004 to 2006 E83 X3 3.0i  2001 to 2006 E53 X5 3.0i 2001 to 2006

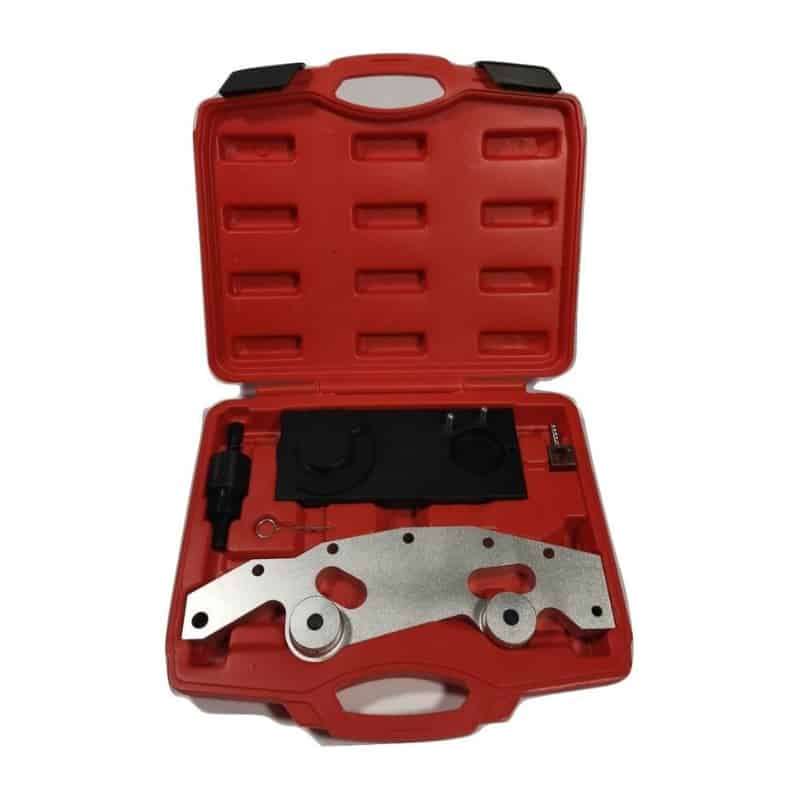

This tool is Compatible with the following engine codes M52TW, M54, M56 Timing Tool Components Alignment Plate Jig: Adjusting plate for setting valve timing on engine with double Vanos. Procket Assembly Jig (black plate): Use for pre-assembling secondary chain sprockets w/ chain on camshafts Rigid Chain Tensioner: Apply tension to the primary chain Chain Tensioner Lock Pin: Locks chain tensioner VANOS Banjo Fitting Compressor air connection: For applying pressure to single/double Vanos unit Use. Sprocket Jig: Place chain wheels, position tooth gap in inlet chain wheel and feed on chain.
