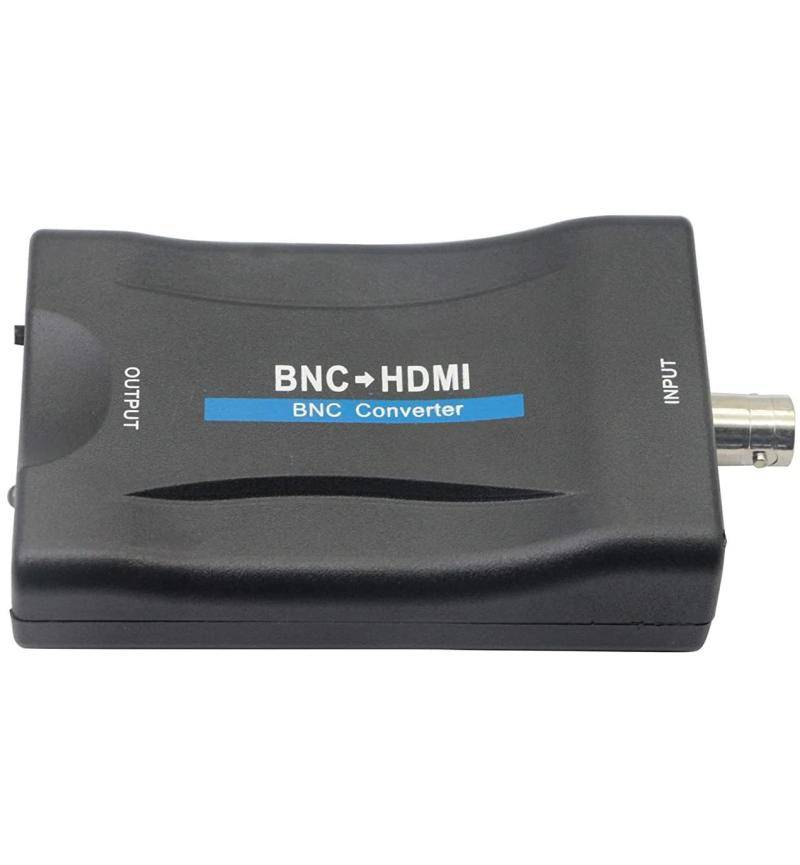

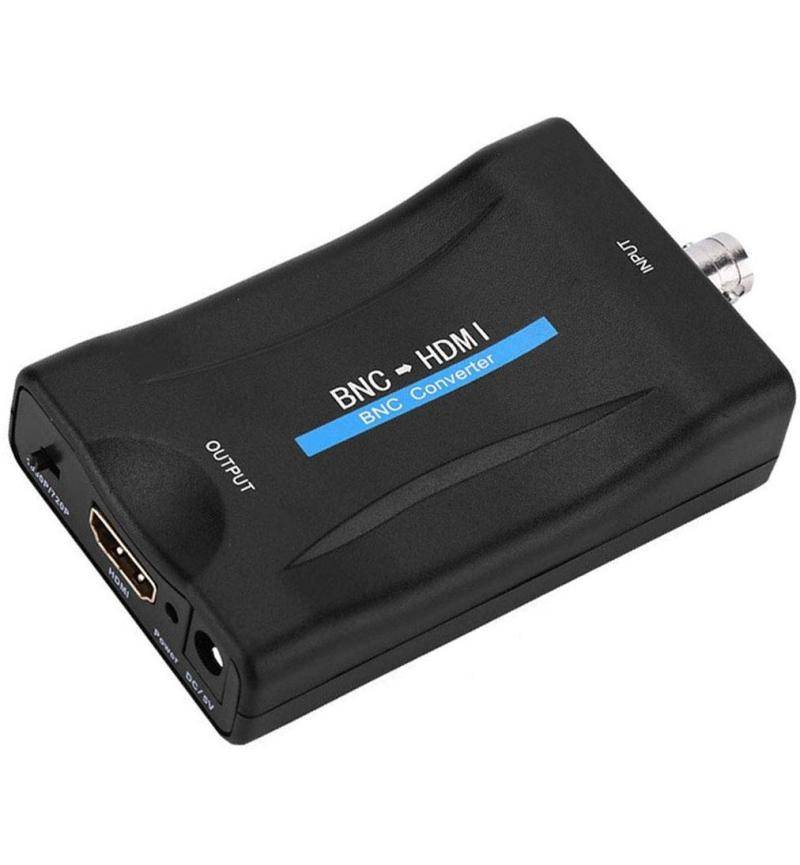

BNC to HDMI Convertor

BNC TO HDMI CONVERTOR - BNC2HDMI

BNC to HDMI Converter, Composite BNC and Audio Input to HDMI Output Adapter with 720P/1080P Switch

Transfer Analog Video Signal from CCTV Security Camera to HD Monitor Projector Computer

FUNCTIONS

The Video Converters is a must-have to keep older devices with new modern PC Monitor or LCD

It takes a connect from CVBS Security Camera directly to an HDMI TV

Or Converts old Security System DVR Output

(Analog Video Signal) to HDMI (Digital Video Signal) for Flat Screen Monitor

COMPATIBILITY

This box composites CVBS BNC Analog Video Signal Input

And 3.5mm Aux Audio Signal Input to HDMI Output with a 720P/1080P Switch.

NOTE:

It's only for CVBS Analog Camera, can NOT fit the Digital Camera or AHD/TVI/CVI Camera

The Output Port is standard HDMI Type A

It's NOT an SDI Converter, can NOT Convert Cable TV signal

Don't use it to connect your Antenna and Cable TV

SPECIFICATION

The Adapter adapts 3D Compensation Technology:

Motion optimization, color Optimization and Digital noise reduction

Automatically detects Input Signals in PAL or NTSC format, Supports 720P@50/60Hz

1080P@50/60Hz HDMI Output Resolution (The resolution can reach up to 1920 x 1080 on LED LCTV)

freely switch between 4:3 and 16:9 modes

FEATURES

It has an exclusive 3.5mm Audio Port to Input Audible Signals

Which allows you to inject sounds to the CVBS Cameras Video Signals

The low-power-consumption Digital chip enables the Adapter to work 24-hour

Uninterruptedly and stablely with low heat releasing

It's a simplistic way to broadcast live Video feed and perfect for real-time Video Monitor using CVBS protocol

PLUG and PLAY

Wire it as follows, CVBS CCTV Camera or DVR with BNC Output - Coax Cable

This Adapter - HDMI Cable - PC Monitor/ Projector/ Computer

Work after easy installation without any special settings, no driver Software required

NOTE

If you use a TV set as the Monitor, switch the Input or source button on the TV clicker to the HMID mode
