BNC to VGA ,Composite RCA, S-video or VGA to BNC S - Video Converter ,Connect CCTV to VGA Screen

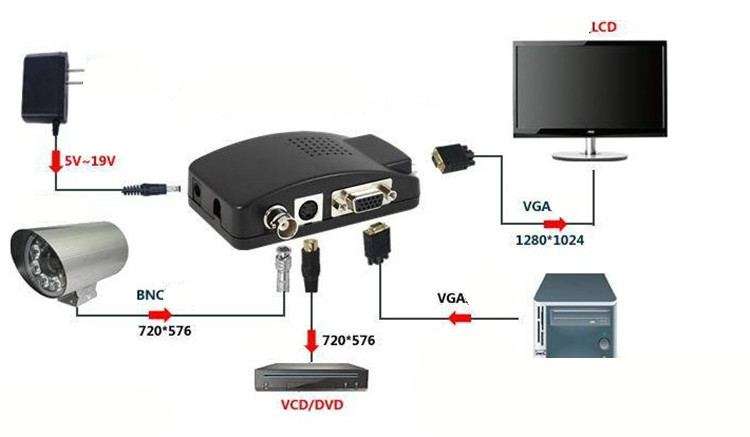

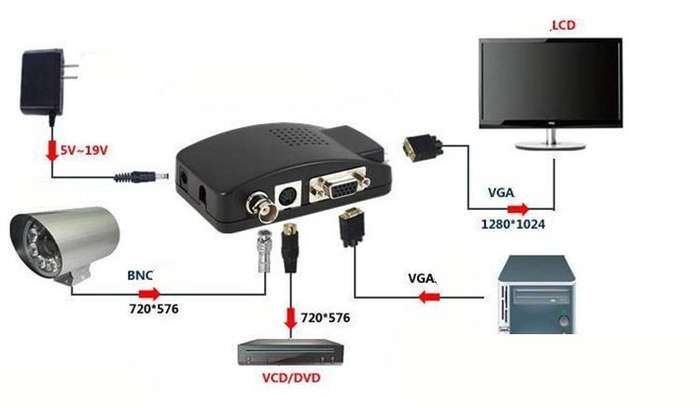

The BNC / Composite / S-Video to VGA Converter has a VGA, S-Video and RCA video input port, and a VGA output, which will allow you to stream video from a supported DVD, DVR, CCTV, STB video source to a PC/VGA monitor or LCD TV. Included in the packaging is a BNC Female to RCA male adapter allowing for BNC cameras/devices to be converted to VGA via the RCA port. The converter features a single button for easy switching between the different sources and comes complete with an RCA, VGA, S-Video, and Power cable + a BNC to RCA Adapter

The BNC connector is primarily used on CCTV camera systems. Connect these systems directly to a cost effective VGA Screen with a better resolution than standard CCTV monitors which are much more expensive than standard VGA displays.

You can also connect any DVD Player, DSTV or any device with a S-video port to the device to be converted to display on a VGA screen. Use a composite to S-video cable if the device has a composite (Yellow RCA) output only.

Specifications

• Transform AV into VGA signal
• 1 channel BNC input
• 1 channel S-video input
• 1 channel VGA signal input
• 1 channel VGA signal output
• DC - 5V  power supply
• Supports signal: VIDEO (Composite), BNC Connections, S-VIDEO, VGA
• Support system : PAL / NTSC Output
• Resolution: 800×600@60HZ, 800×600@75HZ, 1024×768@60HZ
• Dimensions : 10 x 6 x 3 cm
• You can adjust lightness, contrast, color saturation etc.
• Image freeze
