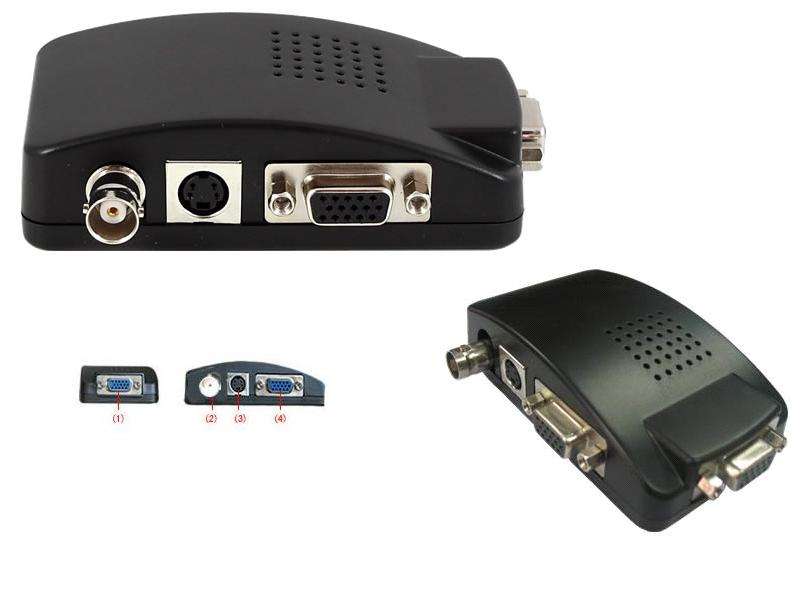

BNC to VGA / Svideo to VGA Converter (Connect CCTV to VGA Screen)

The BNC connector is primarily used on CCTV camera systems. Connect these systems directly to a cost effective VGA Screen with a better resolution than standard CCTV monitors which are much more expensive than standard VGA displays.

You can also connect any DVD Player, DSTV or any device with a svideo port to the device to be converted to display on a VGA screen. Use a composite to Svideo cable if the device has a composite (Yellow RCA) output only.

Specifications

● Transform AV into VGA signal
● 1 channel BNC input
● 1 channel S-video input
● 1 channel VGA signal input
● 1 channel VGA signal output
● DC-5V outside power supply
● Supports signal: VIDEO (Composite), BNC Connections, S-VIDEO, VGA
● Support system : PAL/NTSC Output
● Resolution: 800×600@60HZ,800×600@75HZ,1024×768@60HZ
● Dimentions : 10 x 6 x 3 cm (4.0 x 2.25 x 1.0 in.)
● Can adjust lightness, contrast, color saturation etc.
● Image freeze
● Save current work state when the power cut
● Caption prompt in work state
