Board Only - 1800W PWM Dual Channel Motor Driver Board Module DC Motor Driver Speed Regulator with H

Specifications:
Input voltage: 9-30V

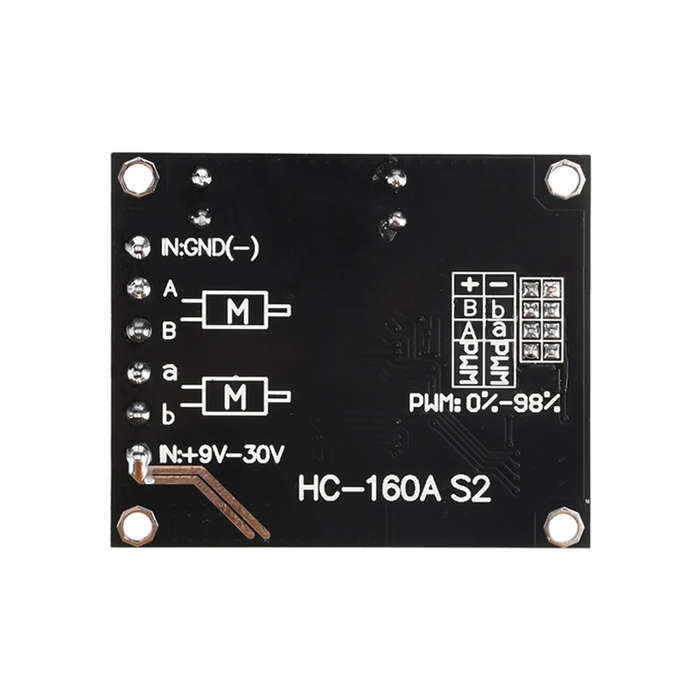

Control interface:
A.B=0.0 for brake
A.B=1.0 for positive rotation
A.B=0.1 for reverse rotation
PA is PWM wave input (motor speed regulation)
G is the common ground pin with the control board (B road for the same control)
Positioning hole: 3mm
Hole pitch: 52*42mm
Weight: Approximately 33g

Features:

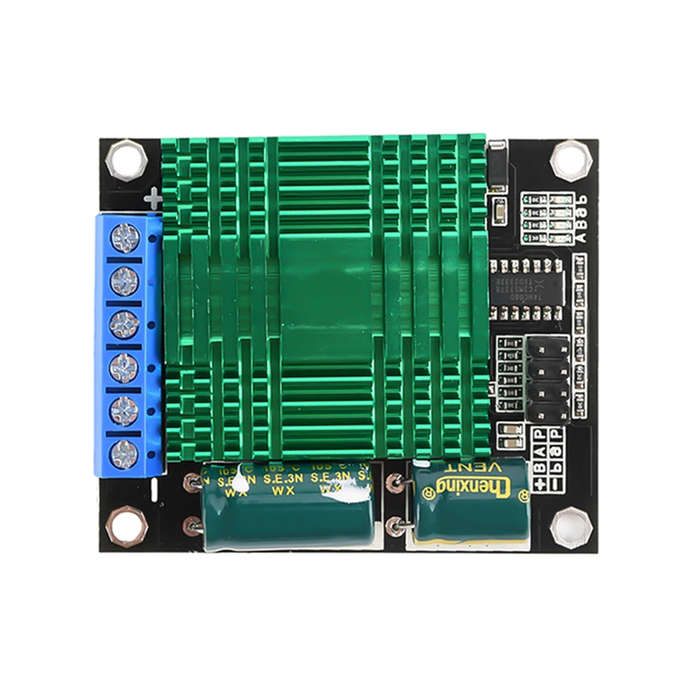

1. The basic components of this product for the SMD high degree of integration, the module design is beautiful, well laid out, very small size, on-board two-way high-power DC motor drive.
2. Wide heat sink can effectively dissipate heat for the drive module when high current, to maintain the module's good stability performance.
3. When driving the motor, the maximum rated current of the module can be up to 60A, and the on-resistance is only 0.003
