Specifications:
Model: AIR780E
Network Type: LTE Cat.1 bis
Module Dimensions: 46 x 49.6 mm
Weight: 22 g
Pre-installed Module: AIR780E
AT Command Support: Yes
Supply Voltage: Type-C + 2.54 mm pin, 5V
Relay Output Control: GPIO1 single-path control
Low Power Mode Current: Sleep mode < 600uA
Indicator: Network status LED (GPIO27)
SIM Compatibility: Nano SIM card slot
Mounting Hole Diameter: 2 mm
Features:
1. Versatile AT Command for Development
Allows users to perform flexible development processes using AT commands, enabling seamless integration into various IoT scenarios.
2. Low Power Consumption Design
Equipped with ultra-low power efficiency, sleep mode operates below 600uA, making it ideal for applications requiring sustained usage.
3. Simplified SIM Card Installation
The flip-style nano SIM card slot provides effortless setup, designed for convenience and enhanced usability.
4. Visual Network Status Notification
Built-in status LED (GPIO27) offers an intuitive way to monitor network connectivity in real time.
5. Universal Power Supply Options
Supports reliable power input via Type-C and 2.54 mm pin header, catering to diverse user needs and ensuring stable performance.
Package Included:

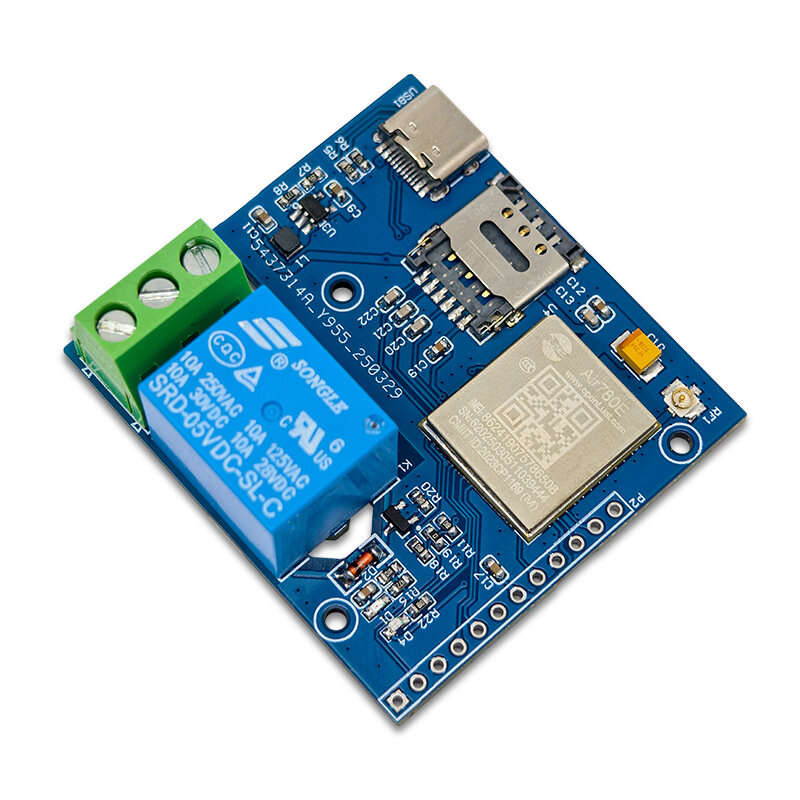

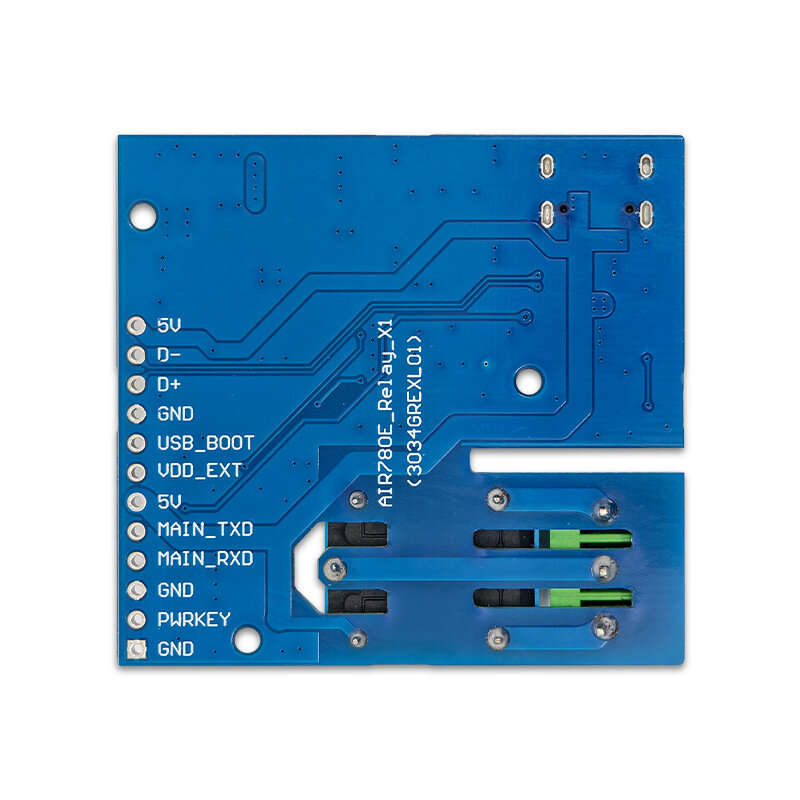

1 x AIR780E 4G IoT Relay Module
