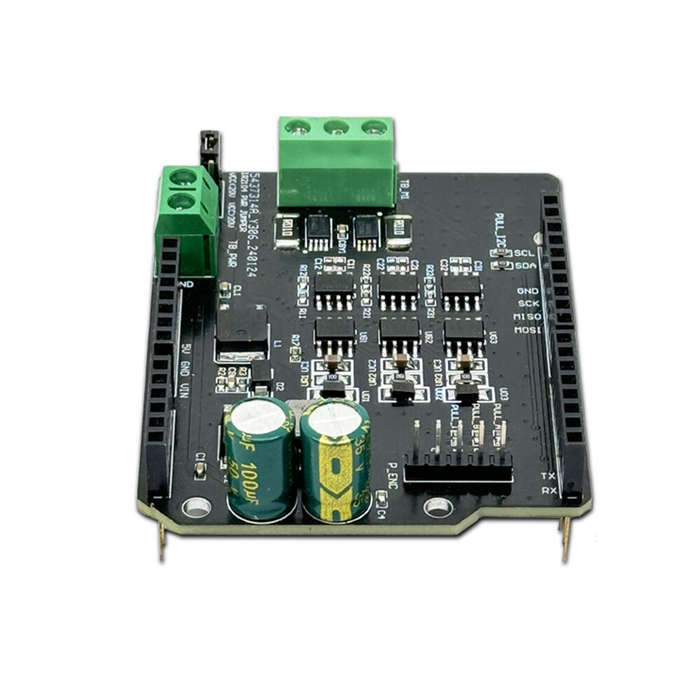

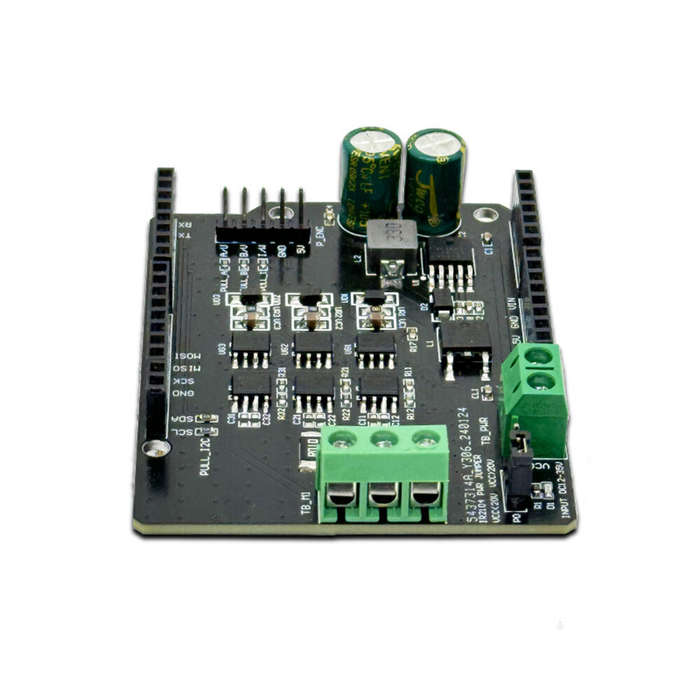

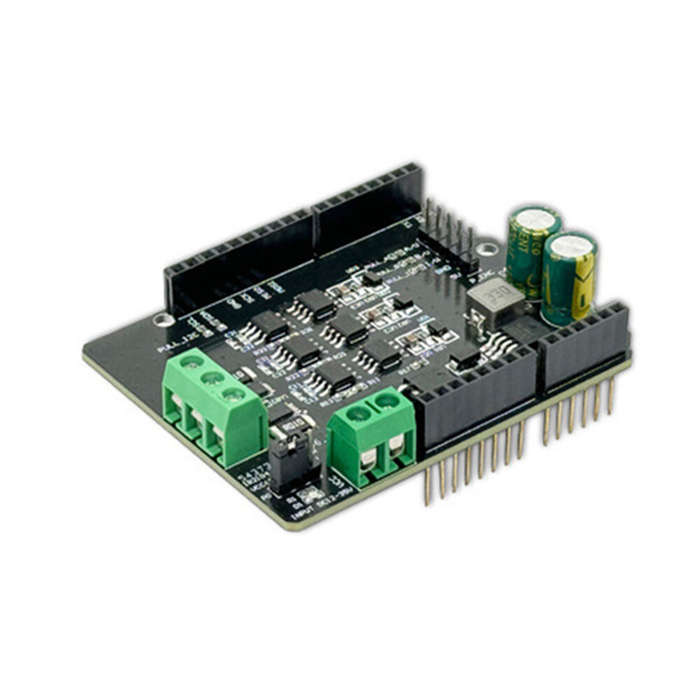

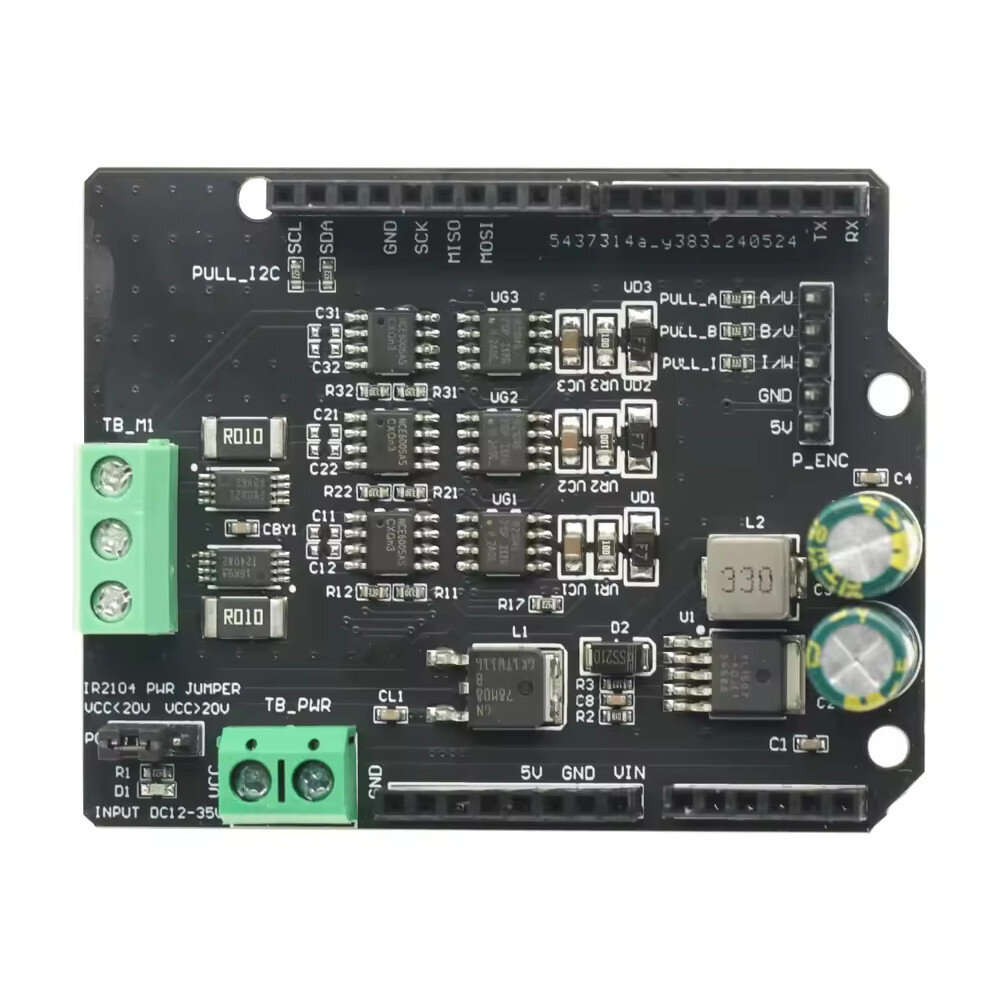

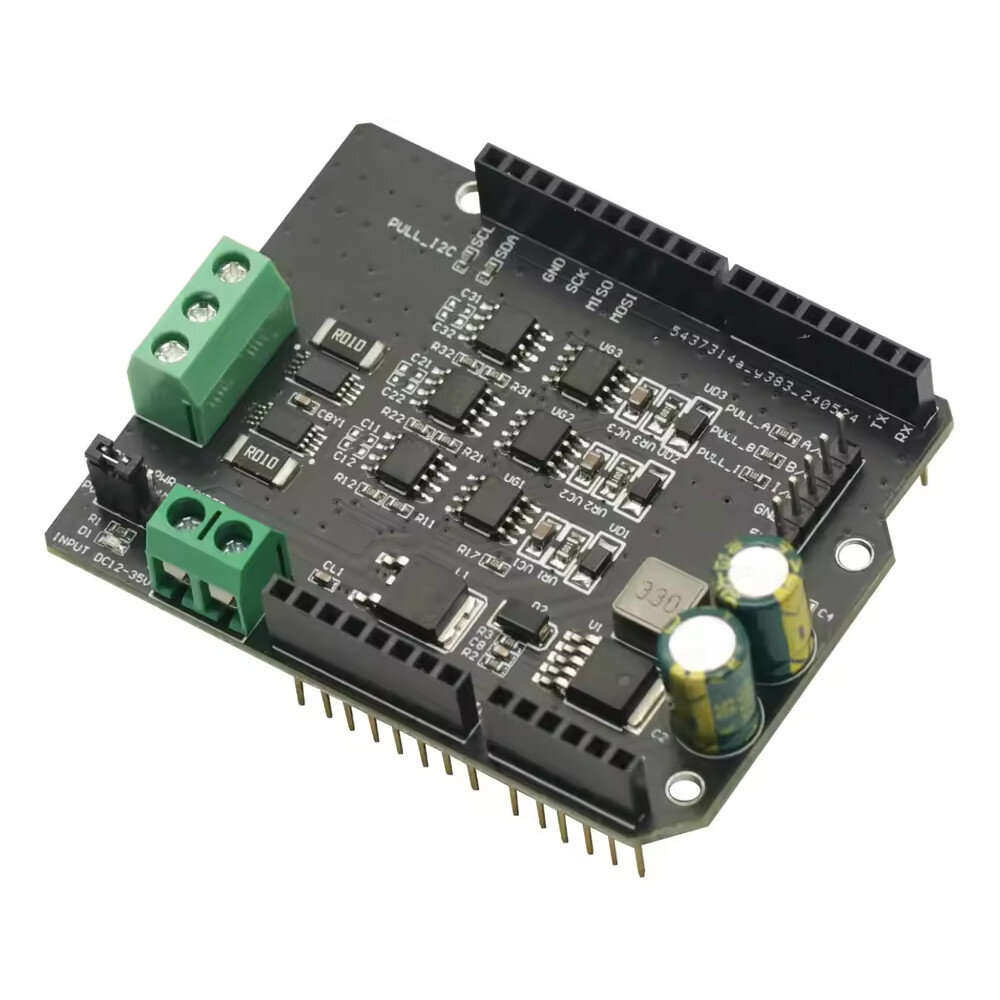

Specifications:
1. VCC, GND: DC12-35V power supply
2. A, B, C: brushless motor interface
3. GPIO outlet can be directly inserted into For ArduinnoUNO and other development boards.
4. IR2104 power supply jumper cap: Because IR2104 only supports a maximum of 20V power supply, when the VCC is less than or equal to 20V, the jumper cap is inserted at the left end, and the power supply voltage of IR2104 is equal to VCC. When the VCC is 20V larger. When the jumper cap is plugged into the right end, the supply voltage of IR2 104 is equal to 16V.
Features:
1. Three IR2104 gate drivers and two on-board INA240 high-precision current sensors are used to measure the A-B phase current.
2. BLDC drive circuit, support Hall, magnetic sensor and other encoders, power supply voltage DC12-35V.
3. Compatible open source project SimpleFOC Shield V2.0.4 can be directl
