Specifications:
Input Voltage: 5V (USB powered)
Chip: TJA1051T/3
Baud Rate: up to 1M
Status Indicator: Tri-colour LED
Color: Blue & Transparent
Material: PCB+ Plastic+Metal
Support: Open Source Upper Computer Cangaroo CAN Protocol Analysis Software
Size:75.5*24*18.5mm
Weight:15g
Features:
1. Using CANnonn-isolated chip TJA1051T/3, baud rate up to 1M
2. USB to CAN module (TJA1051T/3 non-isolated version) CAN bus debugging assistant CAN bus analyzer supports open source upper computer Cangaroo CAN protocol analysis software
3. CANABLE usb to can module is based on the open source project ported.
4. CAN bus protocol analysis can be performed using the open source upper computer Cangaroo.
Package Includes:

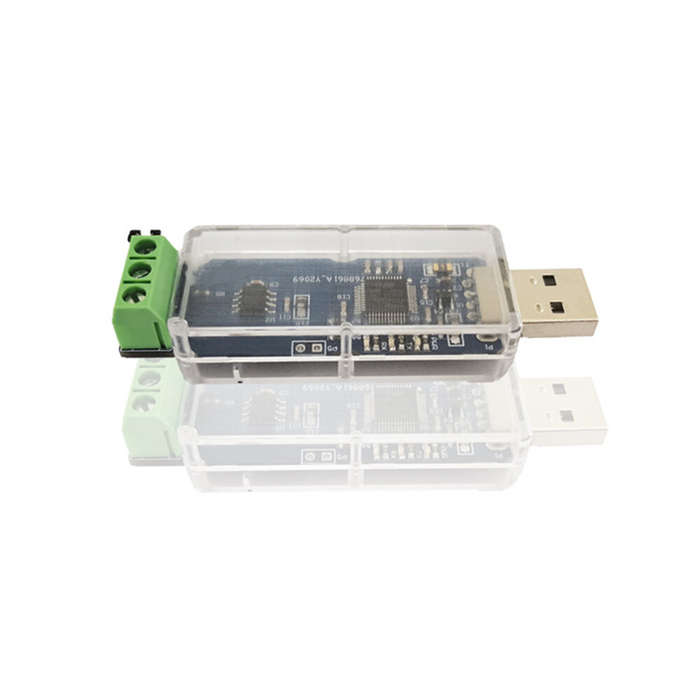

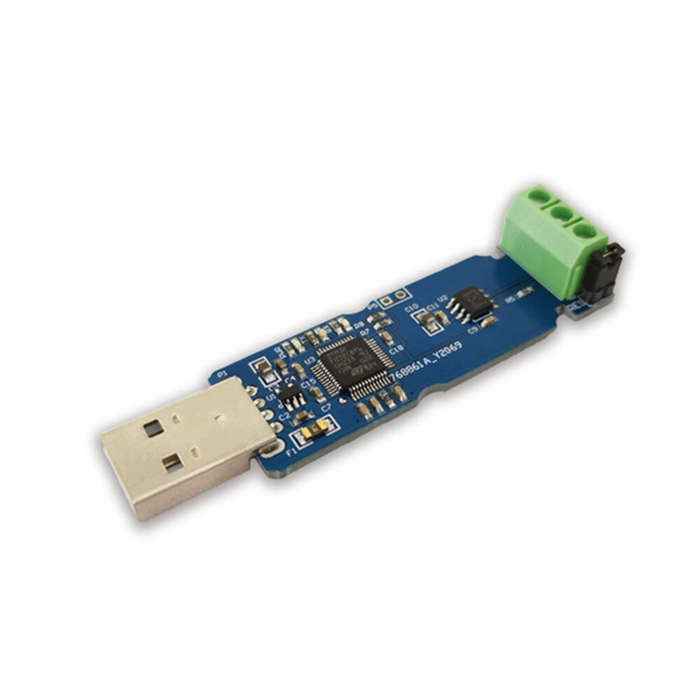

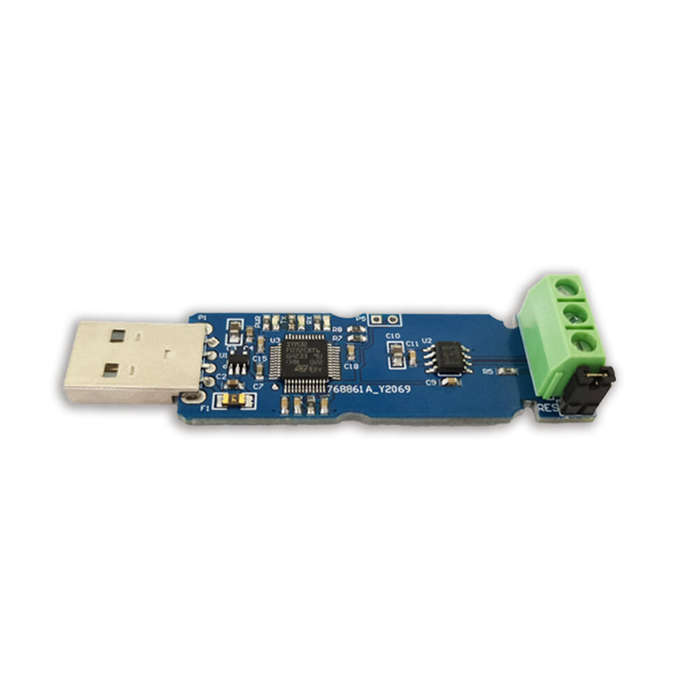

1 x USB to CAN module
