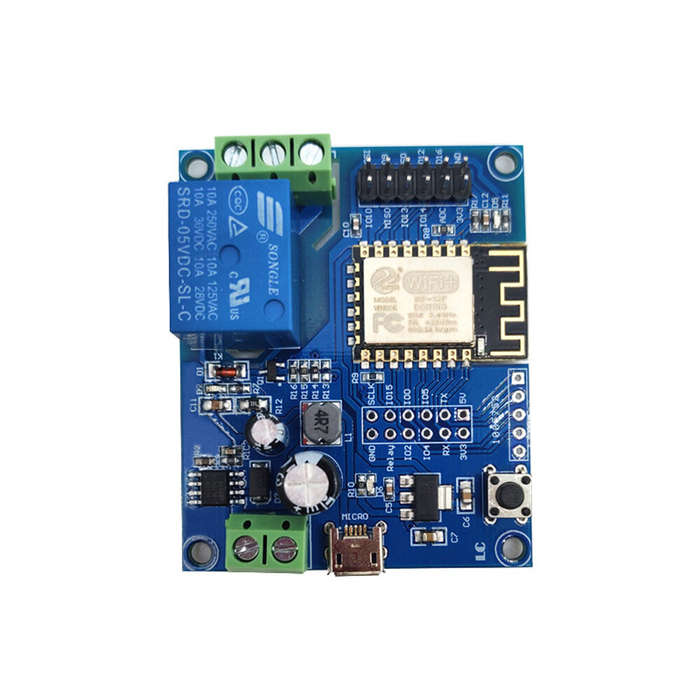

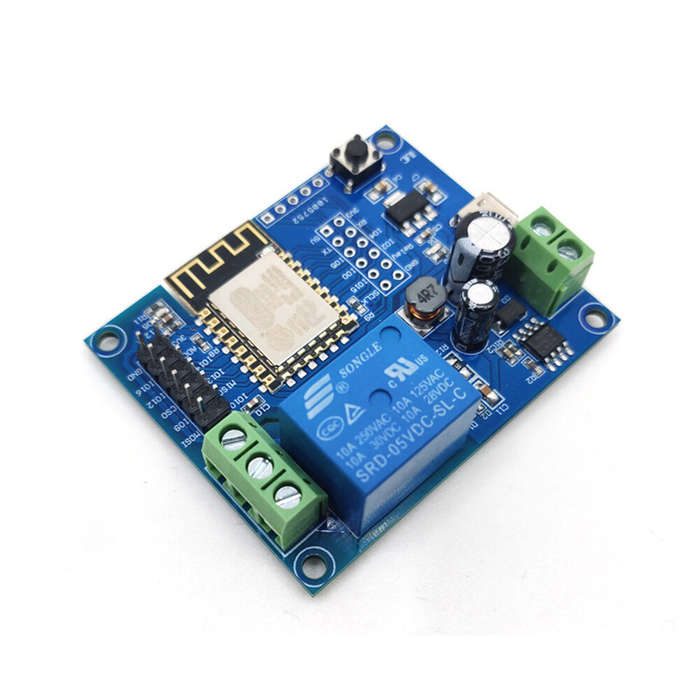

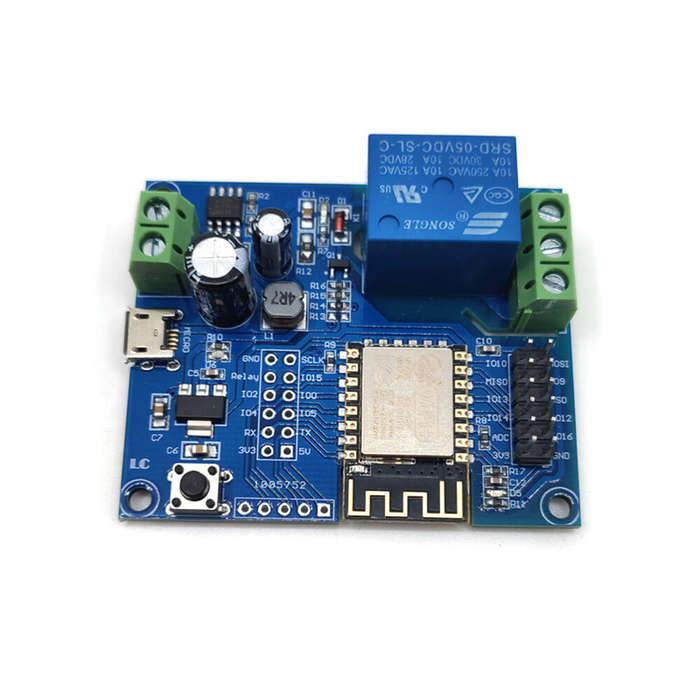

Board Only - DC5-80V Power Supply ESP8266 WiFi Single Channel Relay Module ESP-12F Development Board

Specifications:
Model: LC-Relay-ESP12-1R-D8
Color: Blue
Material: PCB
Work Voltage:DC8-80V/USB5V
WIFI IC: ESP8266
Communication Protocol:UART
Load Voltatge:AC 250V or DC 30V(Max)
Load Current:10A(Max)
Work Temperature:-25~85
Work Humidity:5%~95%RH

Features:
1. Onboard mature and stable ESP-12F WIFI module, large capacity 4M BYTE FLASH;
2. All I/O ports and UART program download ports of the WIFI module are led out to facilitate secondary development;
3. Support DC8-80V/USB5V/pin header power supply;
4. Onboard WIFI module RST reset button;
5. ESP-12F supports the use of development tools such as ECLIPSE/ARDUINOIDE, and provides reference programs under the ARDUINOs' development environment;
6. Onboard one 5V relay, output switch signal, suitable for controlling loads with working voltage within AC 250V/DC30V;
7.
