Name: Board Only - ESP32-C6 WiFi BT Development Board DC 5-60V Single Channel Relay Module Onboard Type-C
SKU: 2038141-POA11731382
Price: 502.91 ZAR
Availability: InStock

Board Only - ESP32-C6 WiFi BT Development Board DC 5-60V Single Channel Relay Module Onboard Type-C

New

1 available

Indicative market price: R729.55

Only 1 left – grab it before it’s gone!

R502.91

31% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10362

95.68 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

2038141-POA11731382

Bob Shop ID

672542742

Decriptions:

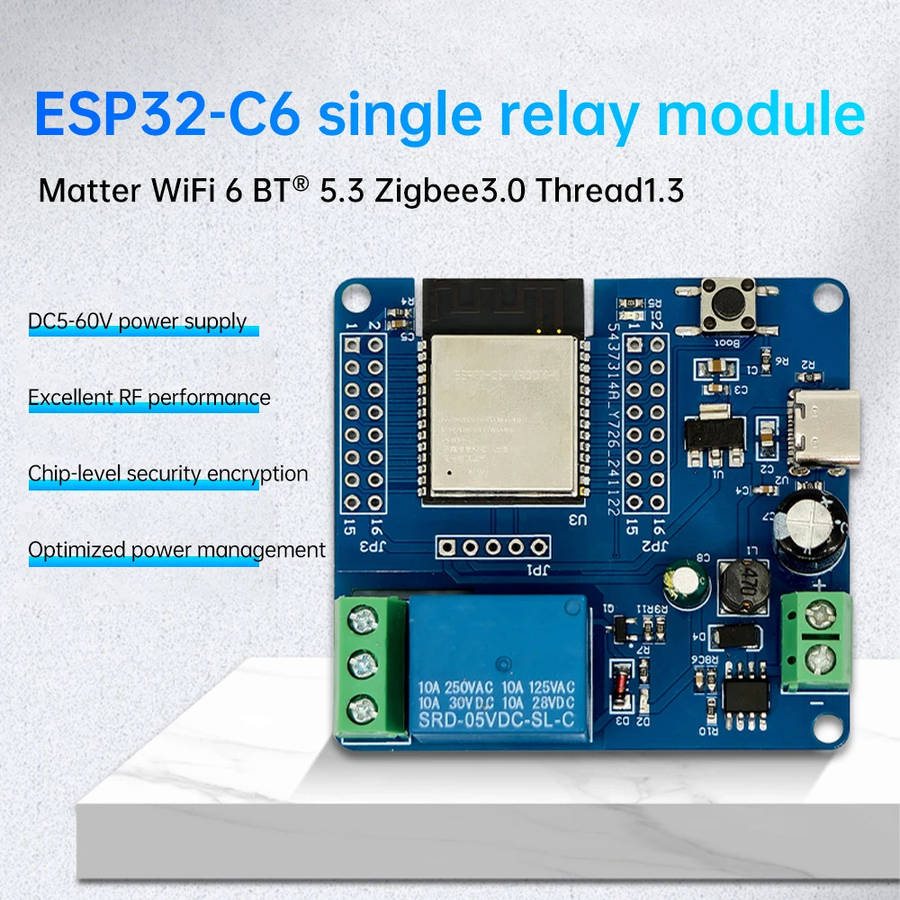

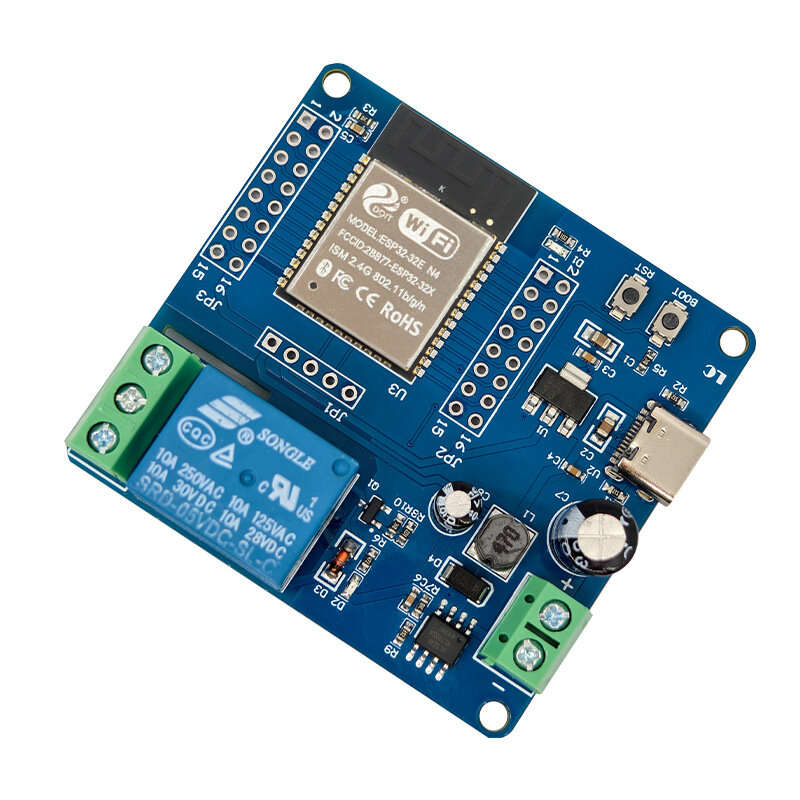

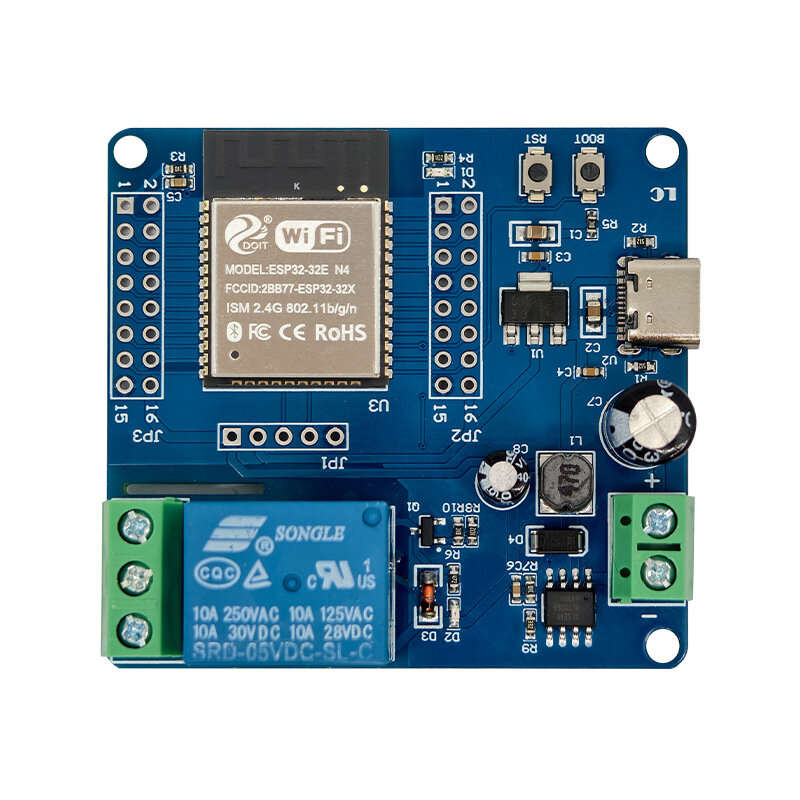

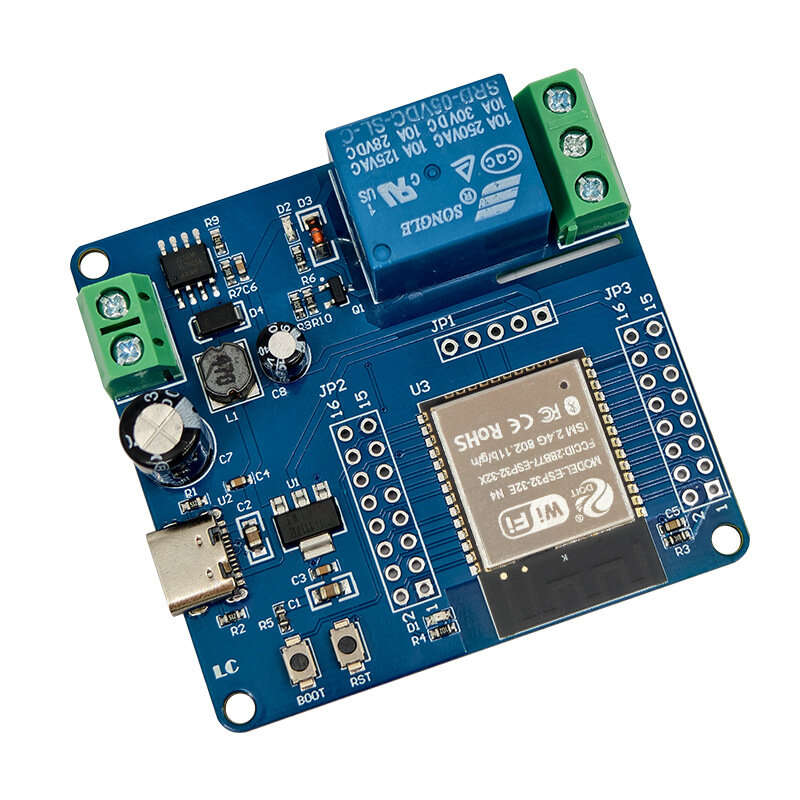

1. The ESP32-C6Relay_X1 single relay development board is a development board based on the ESP32-C6 module. All V/0 ports are fully connected and support DC5-60V power supply mode. It is equipped with programmable buttons, LEDs, and relays on board, making it convenient for developers to quickly verify and develop prototypes, and bringing more possibilities to IoT control scenarios.
2. ESP32-C6 is the first SoC to support Wi Fi 6, integrating 2.4GHz Wi Fi 6, BT 5 (LE), and 802.15.4 protocols, providing industry-leading RF performance, comprehensive security mechanisms, and abundant memory resources for IoT products. Built in two 32-bit RISC-V processors, one is a high-performance (HP) processor with a clock speed of up to 160MHz, and the other is a low-power (LP) 32-bit RISC-V processor with a clock speed of up to 20MHz The chip is also equipped with 512KB SRAM, 320KB ROM, and 4MB Flash, providing more space for programming and bringing more possibilities for IoT control scenarios.
3. ESP32-C6 has 30 (QFN40) programmable GPIO pins, supporting SPI UART, I2C, I2S, RMT, TWAI, PWM, Motor control PWM and SDIO. It also integrates a 12 bit ADC and a temperature sensor.
4. ESP32-C6 natively supports Matter due to its enhanced wireless connectivity. Its wireless protocol stack supports 2.4GHz WiFi 6, [email protected] The Zigbeand Thread802.15.4) As the first Thread compatible device, it is highly suitable for building projects that comply with Matter standards, enabling interoperability between smart home devices.

Specifications:
Power supply mode: Supports DC7-60V or TYPE-C 5V (choose one)
Module model: ESP32-C6
Control working voltage: Onboard 1 5V relay, output switch signal, suitable for controlling loads with working voltage below AC250V/DC30V
Processor: Integrated with two 32-bit RISC-V processors, the high-performance processor has a clock speed of up to 160MHz, and the low-power processor has a clock speed of up to 20MHz
Size: 57.5mm X 53.7mm
Weight: 27g
Positioning hole diameter: 3MM

Features:
1. Powerful wireless connection: Supports Wi-Fi 6 and BT 5.3 to achieve efficient IoT communication.
2. Wide voltage power supply: Supports DC 7-60V or TYPE-C 5V power supply, suitable for various application scenarios, and more flexible to use.
3. High performance processor: Dual core 32-bit RISC-V architecture, with a clock speed of up to 160MHz, providing excellent computing performance.
4. Rich peripheral interfaces: 30 programmable GPIO, supporting protocols such as SPI, UART, I2C, etc., with strong scalability.
5. Built in sensors: Integrated with 12 bit ADC and temperature sensor, convenient for environmental monitoring and control, simplifying the development process.

Package Include:
1x ESP32-C6 single channel relay module
2x 8P double row needle
1x 5P single row needle
