Core Board Introduction:
>>>User Manual: Click here to open<<<

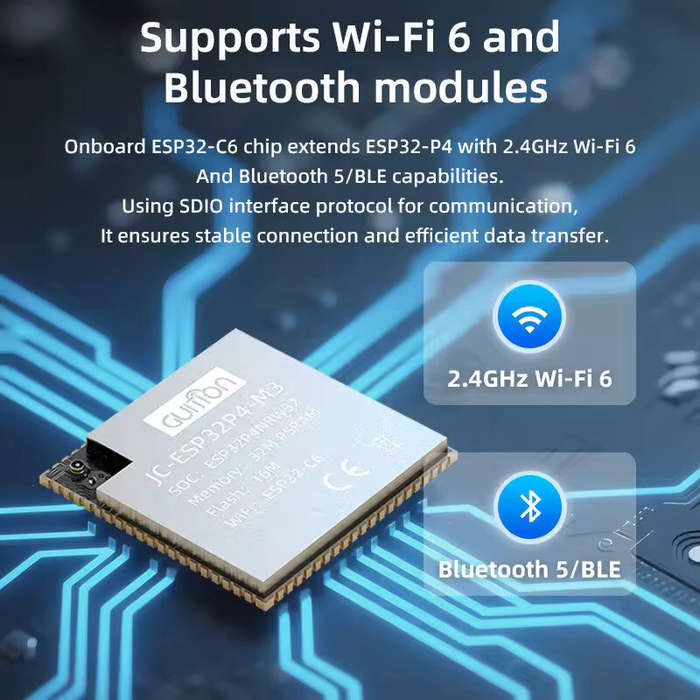

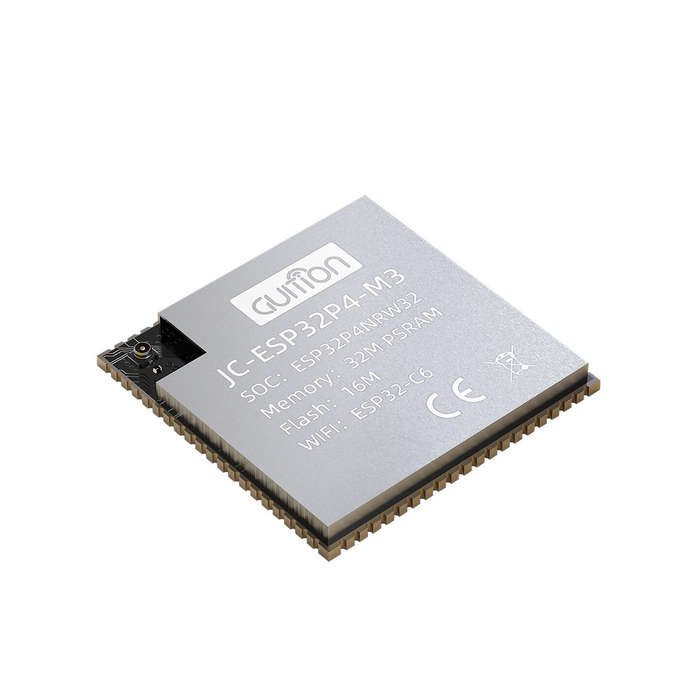

It is an ESP32-P4 core board with integrated ESP32-C6, supporting Wi-Fi 6 and Bluetooth 5 wireless connectivity. It provides rich HCI interfaces including MIPI-CSI (Integrated Image Signal Processor ISP), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI and so on. In addition, USB OTG 2.0 HS is supported.The ESP32-P4 adopts a 360MHz dual-core RISC-V processor, supports up to 32MB PSRAM, and is equipped with peripherals such as USB 2.0, MIPI-CSI/DSI, H.264 encoding, etc., which meets the needs of low-cost, high-performan
