Description:

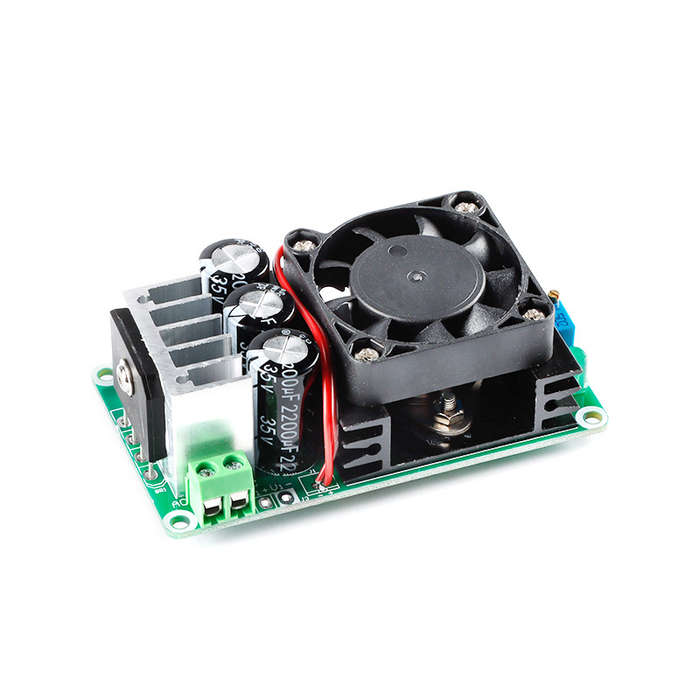

As an excellent linear regulator, LM338K has the characteristics of high stability, high temperature resistance and high linearity. 5A needs to increase the radiator or increase the active cooling measures). The board is equipped with an 8A rectifier bridge (with heat sink), and is equipped with an input filter capacitor of 4400uF and an output filter capacitor of 2200uF, which can effectively reduce output ripple and interference. It is suitable for electrical appliances, equipment, audio, digital power amplifiers, etc. with power supply below 30V, and provides power with low internal resistance and low ripple.
Electrical Parameters:
Input voltage range: DC5V-35V, AC5V-22V
Output voltage range: DC1.25V-30V (continuously adjustable)
Output current range: maximum continuous working
