Specifications:
Material: PC+Metal
Operating Voltage :Below AC 250V/DC30V
Colour: As shown
Size:57.5*53.7mm
Weight:27g
Features:

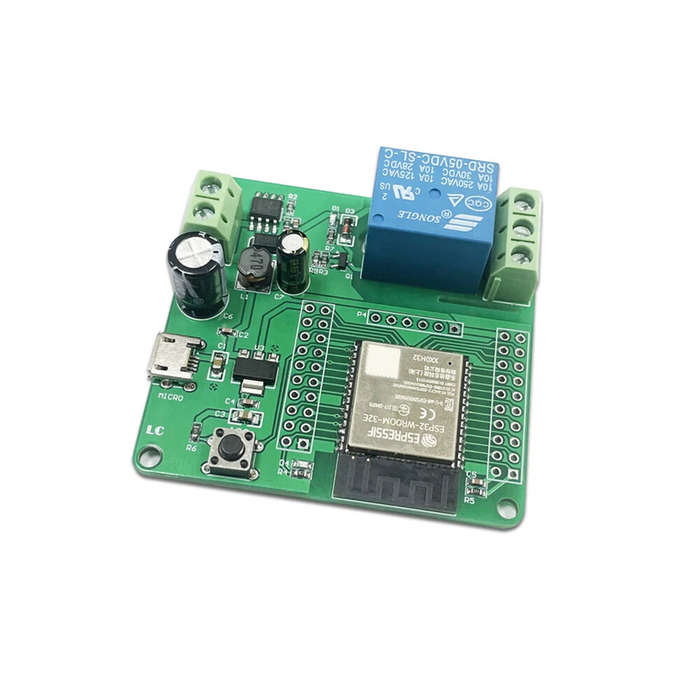

1. Onboard mature and stable ESP32-32E module, with a large capacity of 4M Byte Flash;
2. All I/O ports and UART program download ports of the ESP32 module are exported for easy secondary development;
3. The power supply supports DC7-60V and micro USB 5V;
4. Onboard ESP32 module IO0 programmable buttons;
5. ESP32 supports the use of AD IDE development tools and provides reference programs in the AD development environment;
6. Onboard 1 5V relay, output switch signal, suitable for controlling loads with operating voltage below AC 250V/DC30V;
7. Onboard 1 programmable LED and relay indicator light.
8. Board size: 57.5 * 53.7mm Weight: 27g
Package Includes:
1 x ESP32 Development Board
