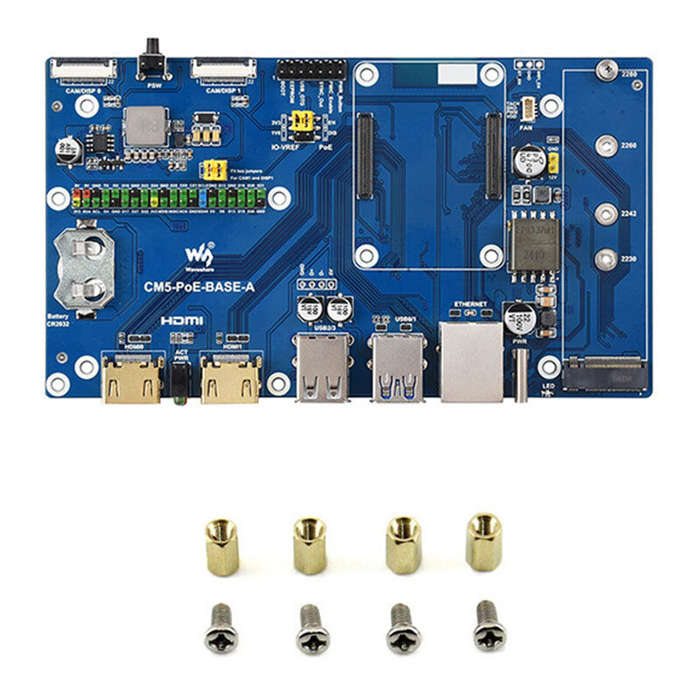

Specification:
Compatibility: Compatible with all versions of Compute Module 5 (CM5 Lite/eMMC)
Networking: Gigabit Ethernet RJ45 port, integrated 802.3af/at PoE (Power over Ethernet) standard (5V/5A)
Connectors:
Raspberry Pi 40-pin GPIO interface
USB 3.2 Gen 1: 2 ports
USB 2.0: 2 ports
4-lane MIPI: 2 connectors (22-pin 0.5mm FPC)
HD: 2 ports supporting 4K output
NVMe: PCIe Gen 2/3 x1
Storage: Micro SD card slot (for non-eMMC versions)
Battery: CR/ML2032 RTC
Fan Connector: 5V, 4-pin JST-SH PWM fan connector
Power Input: 5V 5A
Dimensions: Bare board: 160.0 x 90.0 mm
Features:
1. Versatile Connectivity: Offers comprehensive connectivity options including dual HD, dual USB 3.2 Gen 1, dual USB 2.0, dual MIPI, and gigabit Ethernet, making it ideal for various applications.
2. PoE Sup
