Specification:

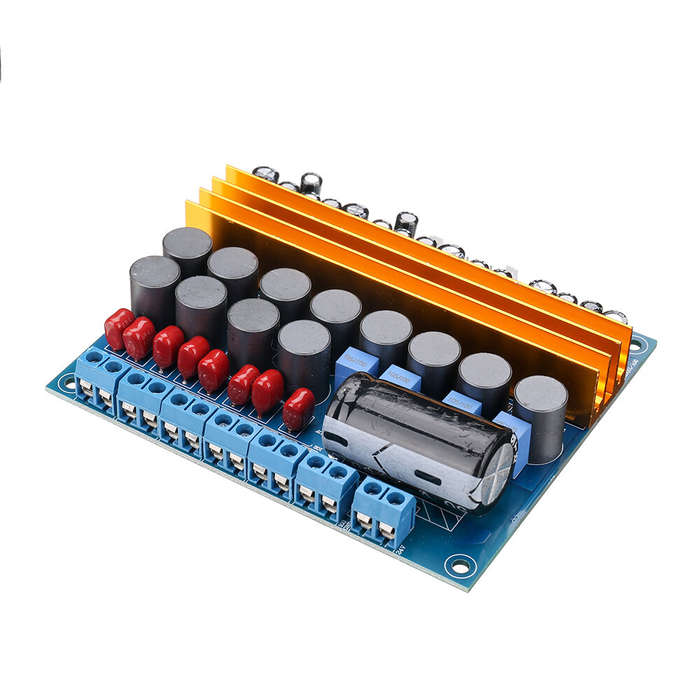

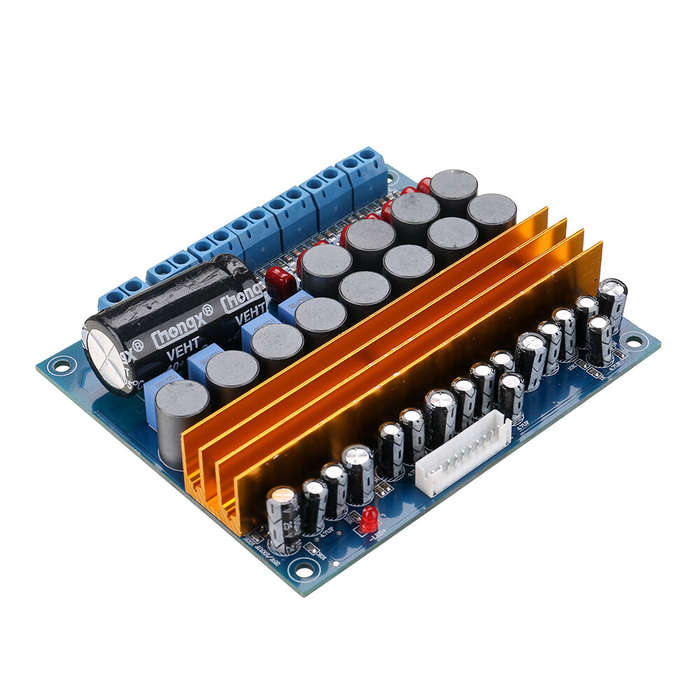

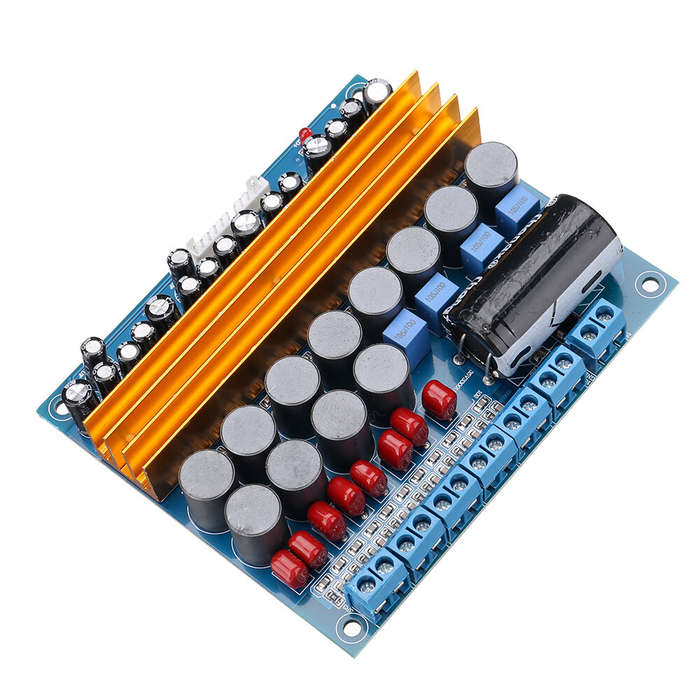

Product Name: TPA3116 5.1 Channel Class D Power Amplifier
Model Number: TPA3116-5.1AMP
Input Sensitivity: 1.1V (high impedance)
Input Compatibility: Computer sound card, decoder, DVD player, car navigation, etc.
Output Power:
Main and Surround Channels: 50W x 4
Center and Bass Channels: 100W x 2
Power Supply: DC19-24V (10A recommended), not compatible with AC power
Dimensions: 100mm (L) x 80mm (W) x 30mm (H)
Speaker Matching:
Subwoofer: 3-4 ohms recommended
Other Channels: 6-8 ohms recommended
Features:
1. 6-Input, 6-Output Design: This amplifier features independent 6 input and 6 output channels, delivering a pure and robust audio signal to each speaker.
2. High Sensitivity Input: The amplifier's high input sensitivity of 1.1V allows direct connection to v
